Globe Valve vs Gate Valve: When Should You Use Each Type?

15/04/2026

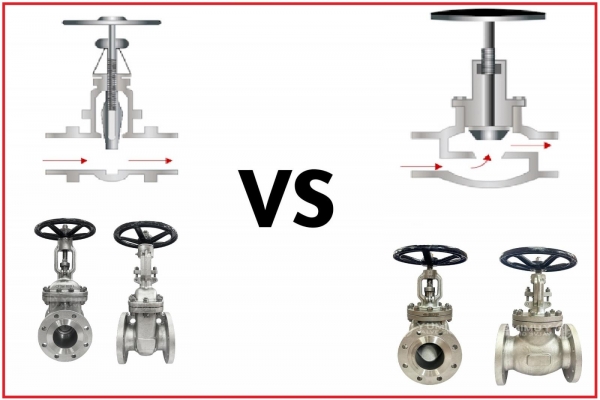

🔷 Overview of Globe Valve and Gate Valve

In industrial valve systems, globe valves and gate valves are two of the most commonly used types, but they serve very different purposes.

👉 Choosing the wrong valve can lead to:

Reduced system efficiency
Increased pressure loss
Faster valve wear and failure

⚙️ What is a Globe Valve?

A globe valve is designed for flow regulation (throttling).

📌 Key features:

Flow path is S-shaped
Excellent flow control capability
Good sealing performance
Higher pressure drop

👉 Best suited for systems requiring precise flow control

⚙️ What is a Gate Valve?

A gate valve is designed for full open or full close (on/off service).

📌 Key features:

Straight flow path
Very low pressure drop
Not suitable for throttling
Long service life when fully open

👉 Best suited for systems requiring full flow or complete shut-off

📊 Comparison: Globe Valve vs Gate Valve

Criteria	Globe Valve	Gate Valve
Function	Flow control	On/Off
Flow path	S-shaped	Straight
Pressure drop	High	Low
Flow regulation	Excellent	Poor
Durability under throttling	High	Low
Application	Flow control systems	High flow pipelines

🏭 When should you use a Globe Valve?

Use a globe valve when:

✔️ Flow regulation is required

Steam systems
Water systems requiring control

✔️ Frequent operation is needed

Handles repeated opening/closing well

✔️ Precise control is important

Power plants
Chemical processing systems

🏭 When should you use a Gate Valve?

Use a gate valve when:

✔️ Only full open/close is needed

No flow regulation required

✔️ Low pressure loss is critical

Main pipelines
Long-distance transmission

✔️ High flow capacity is required

Water, oil, gas systems

⚠️ Common mistakes

Using a gate valve for throttling → leads to damage
Using a globe valve in large pipelines → causes high pressure loss
Not considering application purpose before selecting valves

🔥 Quick selection tips

👉 Need flow control → choose Globe Valve
👉 Need on/off operation → choose Gate Valve

🏁 Conclusion

Globe valves and gate valves serve completely different functions:

Globe valve = flow regulation
Gate valve = on/off control

👉 Choosing the right valve helps:

Improve system efficiency
Reduce operating costs
Extend equipment lifespan
