Plastic & Rubber Gasket

PEEK High-performance resin products - WOOJU GASPACK

Price: Contact

Model: Wj 4700

High-performance resin products - WOOJU GASPACK

Trademark: WOOJUGASPACK

Origin: Korea

Order

Project details Download Catalogue Evaluate

Wj 4700

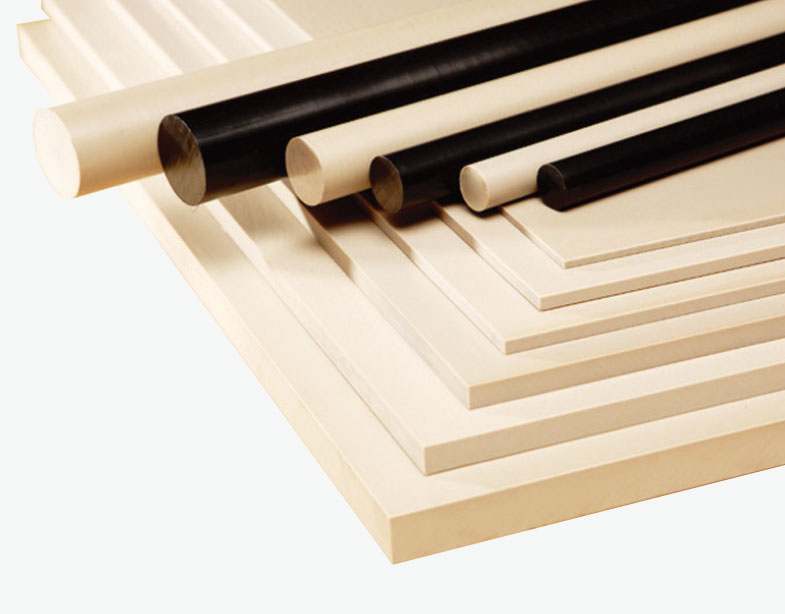

PEEK

Characteristic

PEEK is advanced material that has best performance between existent engineering plastics by thermal resistance, chemical resistance, wear resistance, machinability, etc. Temperature under continuous operation is reached 250℃, and it shows excellent performance because it is equable in high temperature and high pressure.

Usage

Semiconductor, liquid crystal and LCD manufacturing equipment parts
Bolts, nuts, valve seals, general machine parts, etc.
Bearings and trist washers, silicon wafer baskets, connector parts, etc.
Parts related to welding equipment and plating processing equipment

Property		Unit	Test Method	Condition of Specimen	Wj4700 PEEK
Mechanical Properties
Tensile Strength at Break		MPa	ISO 527	Dry	95
Tensile Strength at Break		MPa	ISO 527	Moist
Elongation at Break		%	ISO 527	Dry	30
Elongation at Break		%	ISO 527	Moist
Modulus of Elasticity in Tension		MPa	ISO 527	Dry	3500
Modulus of Elasticity in Tension		MPa	ISO 527	Moist
Charpy notched Impact Strength	+23℃	KJ/m²	ISO 179 / 1eU	Dry	No Break
Charpy notched Impact Strength	-40℃	KJ/m²		Dry
Charpy Impact Strength		KJ/m²	ISO 179 / 1eU	Dry	6, 5
Charpy Impact Strength		KJ/m²		Moist
Hardness Shore Scale D			ISO 868	Dry	87
Time Yield Limit б 1/1000	23℃/50% RH	MPa	ISO 899	Dry
Time Yield Limit б 1/1000	100°	MPa	ISO 899	Dry
Apparent Modulus E c 1/1000 2O		MPa	ISO 868	Moist
