BAODI Equipment

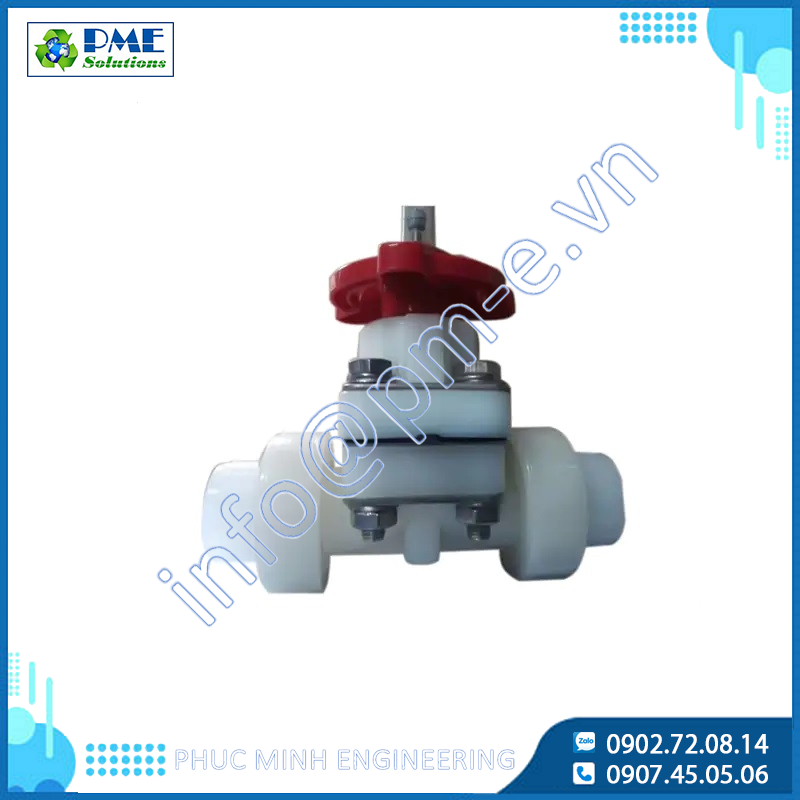

G41F-6S - PVDF SOCKET DOUBLE UNION DIAPHRAGM VALVE

Price: Contact

  • Model: G41F-6S
  • Trademark: BAODI
  • Origin: China
    • Project details Download Catalogue Evaluate

    PVDF SOCKET DOUBLE UNION DIAPHRAGM VALVE

    • Media: Acid
    • Temperature: Ordinary Temperature
    • Actuator: Manual
    • Connection: Welded Diaphragm Valve
    • Material: Plastic
    • Structure: Weir Diaphragm Valve
    • Valve type: Weir
    • Connection: Socket welding/fusion
    • Model NO.: G41F-6S
    • Pressure: Low Pressure
    • Flow Direction: Bidirectional
    • Function: Field Bus
    • Usage: Flow Control
    • Standard: DIN, GB, ANSI, BSW, JIS
    • Size: Dn15-Dn100
    • Trademark: Baodi
    • Transport Package: Carton/Plywood Box
    • Specification: ANSI JIS GB DIN
    • Specification: 1/2"-2"
    • Origin: China
    • HS Code: 8481804090
    • End connection: Socket
    • Working pressure: 0.6Mpa
    • Working temperature: PVDF- ~40ºC-+120ºC



    PVDF SOCKET DOUBLE UNION DIAPHRAGM VALVE DETAILS

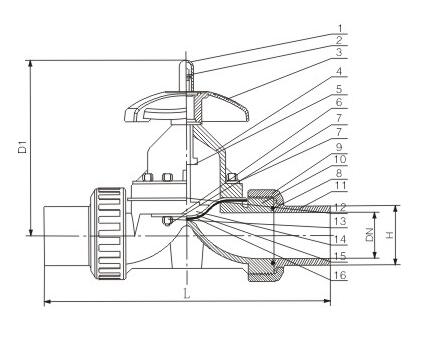

    Part material list

    The datas are updating. Please contact our sales for more details

    Item

    Parts

    Pcs

    Materials

    Item

    		 Parts Pcs

    Materials

    (1)

    Idm

    1

    PPG+NYLON/BRASS

    (9)

    		 Indicator bottle 1

    PC

    (2)

    Diaphragm

    1

    EPDN,VITON

    (10)

    		 0 ring 2

    EPDM,VITON

    (3)

    Body

    1

    UPVC,PP,CPVC,PPG,PVDF

    (11)

    		 Press plate 1

    PPG+NYLON

    (4)

    Dentin

    1

    PPG+NYLON/BRASS

    (12)

    		 Indicator 1

    PE

    (5)

    From the outer cover

    2

    UPVC,PP,CPVC,PPG,PVDF

    (13)

    		 Screw 4

    SUS304

    (6)

    Hand handle

    1

    PP

    (14)

    		 Nut 4

    SUS304

    (7)

    Joint

    2

    UPVC,PP,CPVC,PPG,PVDF

    (19)

    		 Huake 4

    SUS304

    (8)

    Upper cover

    1

    PPG





    JIS、ANSI、DIN Specs dimension list

    The datas are updating. Please contact our sales for more details

    Stcndards

    /Nom.Size

    		 ANSI(Unit：inch) ANSI(Unit:inch) DIN(Unit:mm)
    d P B L H A F K kgf/cm² d P B L H A F K kgf/cm² d P B L H A F K kgf/cm²
    tg yk xjmp Teflon tg yk xjmp Teflon tg yk xjmp Teflon
    15 1/2" 22 PT1/2 22.2 54 164 104 81 25 M6 7 10 0.840 NPT1/2 0.875 2.126 6.457 4.094 3.189 0.984 M6 104 148 20 R1/2 16.0 54 164 104 81 25 M6 7 10
    20 3/4" 26 PT3/4 25.4 54 164 104 81 25 M6 7 10 1.050 TPT3/2 1.000 2.126 6.457 4.094 3.189 0.984 M6 101 148 25 R3/4 18.5 54 164 104 81 25 M6 7 10
    25-1" 32 PT1 28.6 63 180 116 91 25 M6 7 10 1.315 NPT1 1.125 2.480 7.087 4.587 3.582 0.984 M6 104 148 32 R1 22.0 63 180 116 91 25 M6 7 10
    32-1 1/4" 38 PT1 1/4 31.8 85 235 142 117 45 M6 7 10 1.660 NPT1 1/4 1.250 3.346 9.252 5.591 4.606 1.772 M6 104 148 40 R1 1/4 26.0 85 235 142 117 45 M8 7 10
    40-1 1/4" 48 PT1 1/2 34.9 85 235 145 117 45 M8 7 10 1.900 NPT1 1/2 1.375 3.346 9.252 5.591 4.606 1.772 M6 104 148 50 R1 1/2 31.0 85 235 142 117 45 M8 7 10
    50-2" 602 PT2 23.1 99 266 176 150 455 M8 7 10 2.375 NPT2 1.500 3.898 10.472 6.929 5.906 1.772 M6 104 148 63 R2 37.5 99 266 176 150 45 M8 7 10
