Pressure Reducing Valve

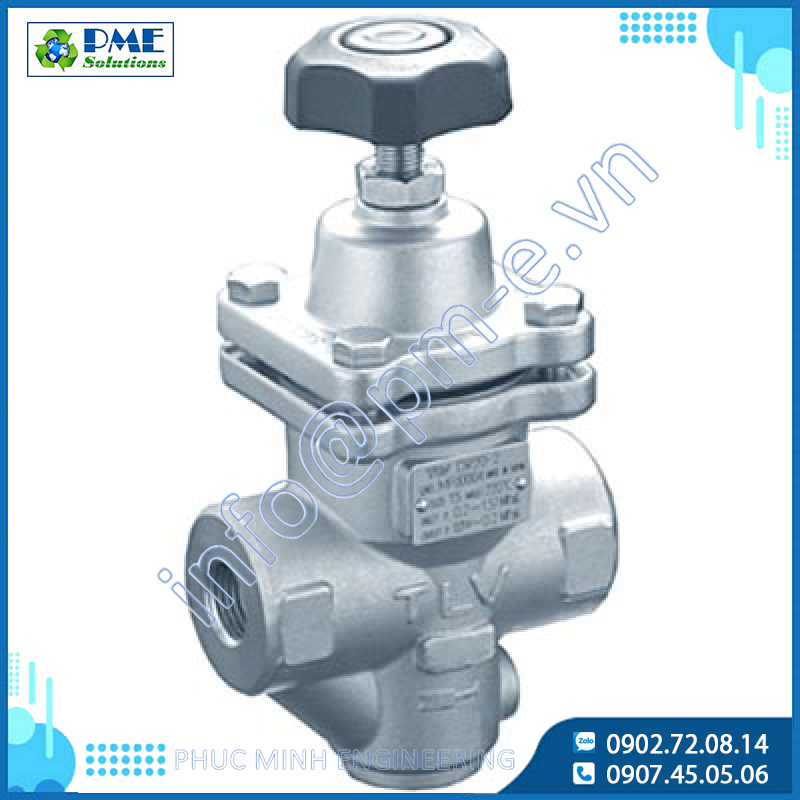

DR20/A-DR20 - Direct Acting Pressure Reducing Valves
Price: Contact
Compact, light-weight, direct-acting pressure reducing valves. Stainless steel construction.
Extremely compact pressure reducing valve for use on small process equipment.
DOWNLOAD CATALOG Direct-acting Pressure Reducing Valve Pamphlet (354 KB)
DR20/A-DR20
Benefits and Features
- Exceptionally light and compact PRV
- Soft seat for extra-tight sealing (A-DR20)
- Wetted parts are of all stainless steel construction with high durability and corrosion resistance for long service life
- Stable secondary pressure
- High flow rate for its class
- Capable of a 30:1 pressure reduction
- Easy to operate and adjust
- Built-in screen ensures extended trouble-free operation
Stainless Steel Construction
- Features stainless steel construction, achieving high durability and a long service life.
Application Areas
- Compact heat exchangers and compact steam processes.
Product Details
| Model | Photo | Connection | Body Material | Applicable Fluids | PMO (MPaG) | TMO (°C) | Primary Pressure (MPaG) | Secondary Pressure (MPaG) | Maximum Flow Rate | Specification |
|---|---|---|---|---|---|---|---|---|---|---|
| DR20 |
|
Screwed | Stainless (ASTM A351 Gr.CF8) |
Steam Air |
1.6 | 220 | 0.2 - 1.6 | 0.014 - 1.0 | 610 kg/h | Specification |
| A-DR20 |
|
Screwed | Stainless (ASTM A351 Gr.CF8) |
Air | 1.0 | 100 | 0.2 - 1.0 | 0.014 - 0.4 | 460 m3/h | Specificaiton |
- PMO = Maximum Operating Pressure
- TMO = Maximum Operating Temperature
