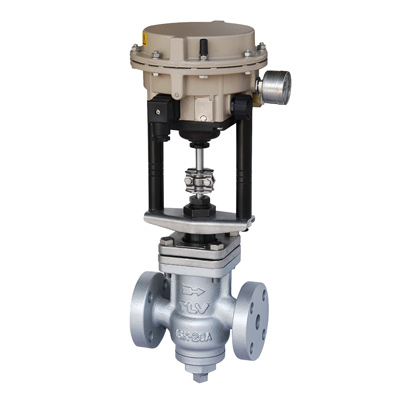

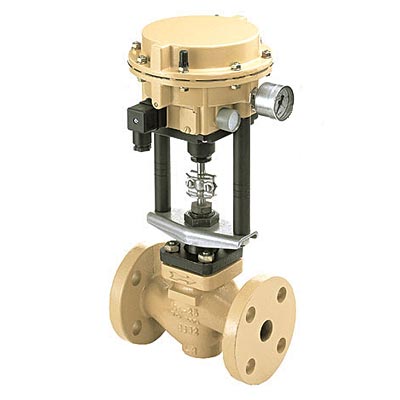

Features a positioner and actuator in a compact unit, thus allowing for greater ease of use and installation. Zero adjustment is simple and requires no tools. (Air to open)

• One combination I/P positioner/actuator (I/P positioned actuator) fits all size valves, to minimize spare inventory requirements.
• Integrated I/P positioner design simplifies installation. Only a single air and electrical signal needed, with no additional instrumentation or mounting kit requirements.
• Top mounting of the I/P positioned actuator eliminates passerby damage and misadjustment associated with side-mount components.
• Positioner vents air automatically to simplify zero setting which ensures tight shut-off and improves control during low flow.
• Multi-spring actuator is highly efficient, and its low overall height facilitates compact installation.
• Self-adjusting chevron packing minimizes seal leaks, stem wear and stiction/hysteresis problems.
• Rolling actuator diaphragm ensures linearity over the operating stroke and maximizes life.

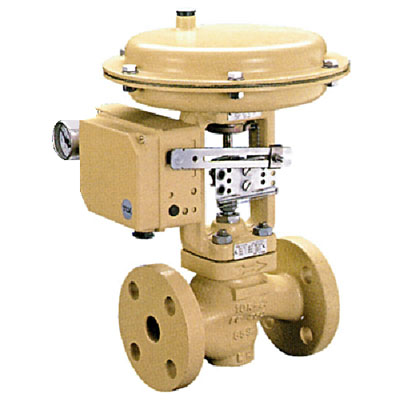

Compact design, yet offers large Cv values and wide rangeability. The top of the valve and the yolk are a single unit, eliminating the possibility of valve stem misalignment and stabilizing the seating surfaces, thus ensuring long-term superior sealing capability. Reliable two-port globe-style valve with equal percentage and linear characteristics for use on steam, water or air. These extremely durable control valves with actuators deliver Class IV or VI performance in severe service applications.

General use control valve featuring an I/P positioner combined with a compact pneumatic actuator.
