Benefits and Features

• The rapid response pneumatic actuator precisely adjusts the valve position to ensure accurate pressure control.
• Large surface area integral screen for pilot valve extends trouble-free service.
• Combining with a controller and an electropneumatic transducer enables automatic PID operation.
• When combined with an air regulator it can be used as a pressure reducing valve to set secondary pressure remotely, and 2 point pressure switching is possible as well.
• By adjusting the internal spring load, steam can continue to be supplied at the required lowest set pressure even with motive air cut off (emergency case).

Application Areas

• Suitable for automatic control of pressure, temperature and flow rate of water, steam, etc.

Product Details

Model	Photo	Connection	Body Material	Applicable Fluids	PMO (MPaG)	TMO (°C)	Primary Pressure Range (MPaG)	Specifications	Manual

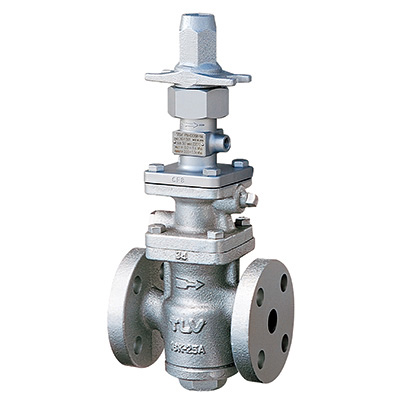

PN-COSR-16		Flanged	Cast Iron (FC250)	Steam	1.6	220	0.2～1.6	Specifications	Manual

• PMO = Maximum Operating Pressure
• TMO = Maximum Operating Temperature

The latest version of each product's instruction manual can be found on this page.
