What is a Spiral Wound Gasket? How to Choose for Pumps & Mechanical Seals

24/04/2026

What is a Spiral Wound Gasket and Why is it Important?

Are you experiencing leakage issues in your pump system or high-pressure equipment? Choosing the right spiral wound gasket is essential to ensure reliable sealing and long-term system performance.

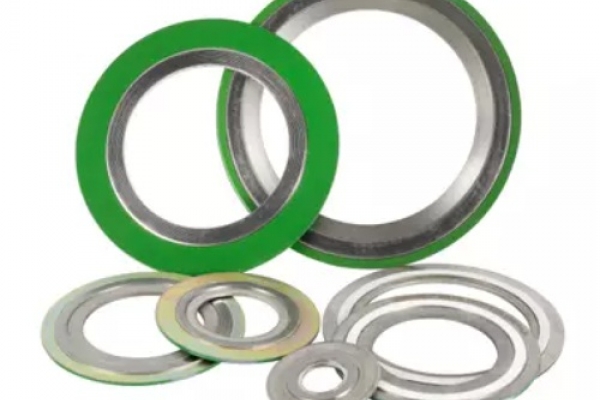

A spiral wound gasket is a semi-metallic sealing element made by winding metal strips and soft filler materials in a spiral form. This design provides excellent flexibility, strength, and resistance to extreme operating conditions.

Basic Structure

Metal Winding: Stainless steel (304, 316), Inconel… for strength and pressure resistance
Filler Material: Graphite or PTFE for sealing and temperature resistance
Inner & Outer Rings: Improve stability and proper alignment during installation

Key Advantages of Spiral Wound Gaskets

High-pressure resistance: Ideal for industrial pump systems
Excellent temperature tolerance: Performs well under thermal fluctuations
Elasticity: Compensates flange surface imperfections
Vibration resistance: Suitable for dynamic systems

Common Types of Spiral Wound Gaskets

1. Basic Type (Style R)

No inner or outer ring
Suitable for low to medium pressure
Used in tongue & groove flanges

2. Outer Ring Type (Style CGI)

Includes a centering ring
Suitable for medium to high pressure
Common in raised face flanges

3. Customized Gaskets

Tailored materials and dimensions
Suitable for harsh environments
Ideal for pumps and mechanical seals

How to Choose a Spiral Wound Gasket for Pump Systems

1. Operating Pressure and Temperature

High pressure → reinforced gasket required
High temperature → graphite filler
Chemical environments → PTFE filler

2. Material Selection

Metal Material	Filler	Application
SS316	Graphite	Steam, high temperature
Inconel	PTFE	Corrosive chemicals
Monel	Mica/Graphite	Oxidizing environments

3. Media Compatibility

Oil & gas → anti-permeation materials
Chemicals → PTFE or Inconel
Steam → graphite is preferred

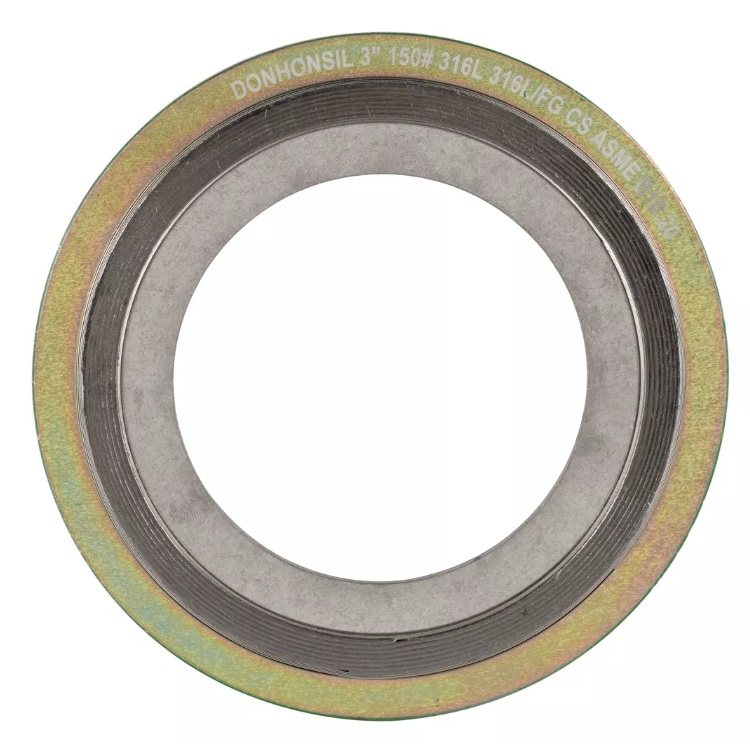

Spiral Wound Gasket là gì? Vai trò trong hệ thống công nghiệp

4. Flange Type Compatibility

Flange Type	Recommended Gasket
Raised Face	With outer ring
Flat Face	Basic type
Tongue & Groove	Customized

Installation Guidelines for Spiral Wound Gaskets

Best Practices

Tighten bolts in a cross pattern
Apply uniform torque
Ensure clean flange surfaces

Common Mistakes to Avoid

Over-tightening → gasket damage
Uneven tightening → leakage
Dirty/damaged flange → poor sealing

Maintenance and Service Life

To ensure optimal performance:

Perform regular leak inspections
Replace damaged or deformed gaskets
Consider vibration and thermal cycling effects

Applications of Spiral Wound Gaskets

Industrial pump systems
Chemical plants
Oil & gas industry
Power plants

Conclusion

Selecting the right spiral wound gasket helps:

Prevent leakage
Extend equipment lifespan
Ensure safe and stable operation

PM-E provides high-quality sealing solutions tailored to meet various industrial requirements.

FAQ

What is a spiral wound gasket?
A semi-metallic gasket made of metal windings and filler materials like graphite or PTFE for high-performance sealing.

Why use spiral wound gaskets in pump systems?
Because they can withstand high pressure and temperature while maintaining a reliable seal.

When should graphite be used?
In high-temperature environments such as steam systems.

Is PTFE suitable for chemicals?
Yes, it offers excellent resistance to corrosive media.

Can spiral wound gaskets be reused?
No, reuse is not recommended due to sealing reliability concerns.
