Gasket Materials by Industry – How to Choose the Right Gasket for Your Application | PM-E.vn

Gaskets are critical sealing components used in piping systems, industrial valves, pumps, pressure vessels, and mechanical equipment. Their primary function is to prevent leakage of liquids, gases, steam, and chemicals while maintaining system safety and efficiency.

Choosing the right gasket material for each industry is essential for ensuring long equipment life, safe operation, and lower maintenance costs. Every industry has different working conditions such as temperature, pressure, chemical exposure, vibration, or hygiene standards.

In this article, PM-E.vn explains common gasket materials and how to select the best one for each application.

Why Choosing the Right Gasket Material Matters

Using the wrong gasket material can cause:

• Leakage of oil, water, gas, or chemicals
• Damage to flanges, valves, and pumps
• Pressure loss in the system
• Production downtime
• Higher maintenance costs
• Safety risks

Therefore, gasket selection should be based on:

• Operating temperature
• Working pressure
• Media compatibility
• Industry standards
• Maintenance frequency

1. Oil & Gas Industry

Applications

• High-pressure pipelines
• Industrial valves
• Pipeline flanges
• Pressure vessels
• Oil & gas processing equipment

Recommended Materials

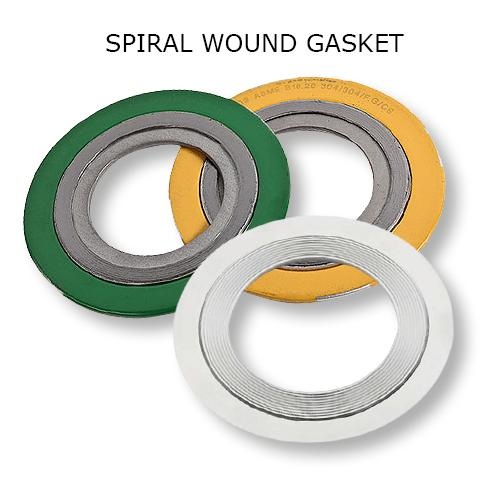

• Spiral Wound Gaskets
• Ring Type Joint (RTJ)
• Kammprofile Gaskets
• Graphite Gaskets
• Mica Gaskets
• Non-Asbestos Gaskets

Key Requirements

• High temperature resistance
• High pressure resistance
• Oil, gas, and chemical resistance
• Strong vibration resistance

2. Automotive Industry

Applications

• Cylinder head gaskets
• Intake/exhaust manifold gaskets
• Gearbox gaskets
• Oil pump gaskets
• Door and window seals

Recommended Materials

• Silicone Rubber
• Nitrile (NBR)
• FKM / Viton
• EPDM
• Cork Composite

Key Requirements

• Engine heat resistance
• Oil and fuel compatibility
• Continuous vibration resistance

3. Aerospace Industry

Applications

• Aircraft engines
• Hydraulic systems
• Cabin pressure seals
• Auxiliary power units (APU)

Recommended Materials

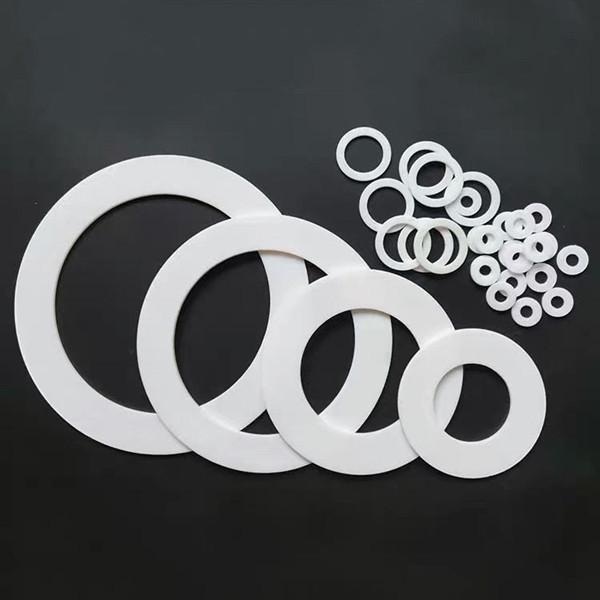

• PTFE
• Graphite
• High-performance rubber
• Engineering polymers

Key Requirements

• Lightweight design
• FAA / military standards compliance
• Extreme temperature and pressure resistance

4. Food Processing Industry

Applications

• Food pipelines
• Storage tanks
• Steam systems
• CIP / SIP equipment

Recommended Materials

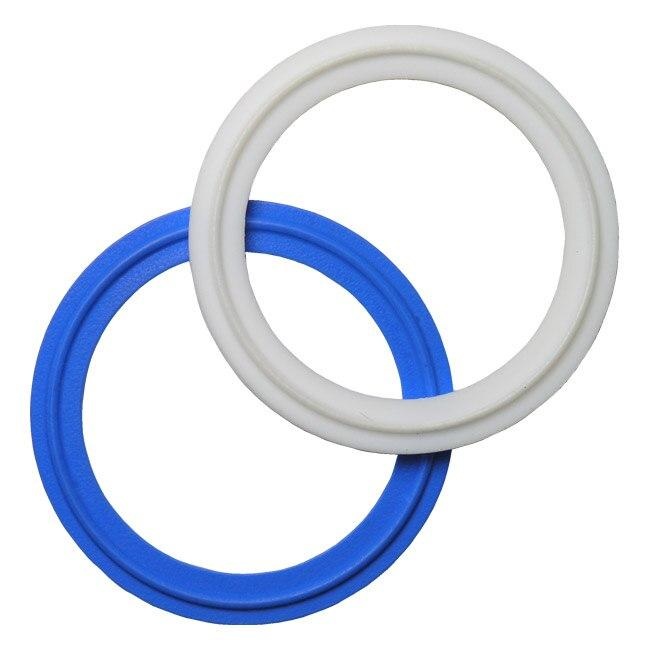

• Food Grade Silicone
• EPDM
• PTFE
• Non-Asbestos Materials

Key Requirements

• FDA / NSF certification
• Odorless and non-toxic
• Resistant to cleaning chemicals
• Anti-bacterial performance

5. Drinking Water / Water Industry

Applications

• Water pipelines
• Water valves
• Pumps
• Water treatment plants

Recommended Materials

• EPDM
• Neoprene
• Graphite
• Non-Asbestos Materials

Key Requirements

• Safe for potable water
• UV resistance
• Long service life

6. Electrical Industry

Applications

• Outdoor electrical enclosures
• Control cabinets
• Technical boxes
• Dustproof and waterproof sealing

Recommended Materials

• Cork
• Neoprene
• EPDM Foam
• Nitrile Foam

Key Requirements

• Electrical insulation
• Water resistance (IP protection)
• Dust protection
• Outdoor weather resistance

7. Petrochemical / Chemical Industry

Applications

• Chemical pipelines
• Chemical valves
• Acid/alkali pumps
• Reaction tanks

Recommended Materials

• PTFE
• Graphite
• Non-Asbestos Materials
• Viton
• Spiral Wound Gaskets

Key Requirements

• Strong corrosion resistance
• High temperature resistance
• High pressure capability

8. Pharmaceutical Industry

Applications

• Cleanroom piping
• Pharmaceutical production equipment
• Sterile tanks

Recommended Materials

• Medical Grade Silicone
• PTFE
• Expanded PTFE

Key Requirements

• Sterility
• Low bacterial growth
• GMP compliance

9. Pumping & Compressor Industry

Applications

• Air compressors
• Vacuum pumps
• Water pumps
• Fluid transfer pipelines

Recommended Materials

• EPDM
• NBR
• PTFE
• Neoprene

Key Requirements

• Wear resistance
• Low friction
• Chemical compatibility

10. Rail Industry

Applications

• Fuel tanks
• Technical compartments
• Engine rooms

Recommended Materials

• Silicone
• EPDM
• NBR
• Non-Asbestos Materials

Key Requirements

• Fire resistance
• Vibration resistance
• Passenger safety compliance

Quick Gasket Material Selection Table

PM-E.vn Provides Gasket Solutions for Industrial Valves

PM-E.vn supplies gasket solutions for:

• Gate valves
• Butterfly valves
• Ball valves
• Globe valves
• Check valves
• Industrial pumps
• Pipe flanges

Custom gasket fabrication is also available upon request.

Frequently Asked Questions

Which gasket material is best for chemicals?

PTFE is one of the best choices for chemical resistance.

Which gasket is suitable for drinking water?

EPDM certified for potable water is widely used.

Which gasket handles high temperatures best?

Graphite, mica, and spiral wound gaskets.

How often should gaskets be replaced?

Inspection is recommended every 6–12 months depending on the system.

Conclusion

Choosing the right gasket material for each industry helps improve sealing performance, extend equipment life, and reduce operating costs.

If you need gasket solutions for industrial valves, pipelines, steam systems, chemicals, or water service, contact PM-E.vn for professional technical advice and cost-effective solutions.
