What Is a Bellows Seal Valve? When Should You Use a Bellows Seal Valve?

15/04/2026

🔷 What is a bellows seal valve?

A bellows seal valve is a special type of industrial valve designed to prevent leakage at the valve stem sealing area by using a metallic component called a bellows.

Unlike conventional valves that use packing seals, a bellows seal valve uses a fully welded sealing structure, eliminating the risk of external leakage.

👉 Bellows seal valves are commonly designed as globe valves or gate valves with bellows sealing construction.

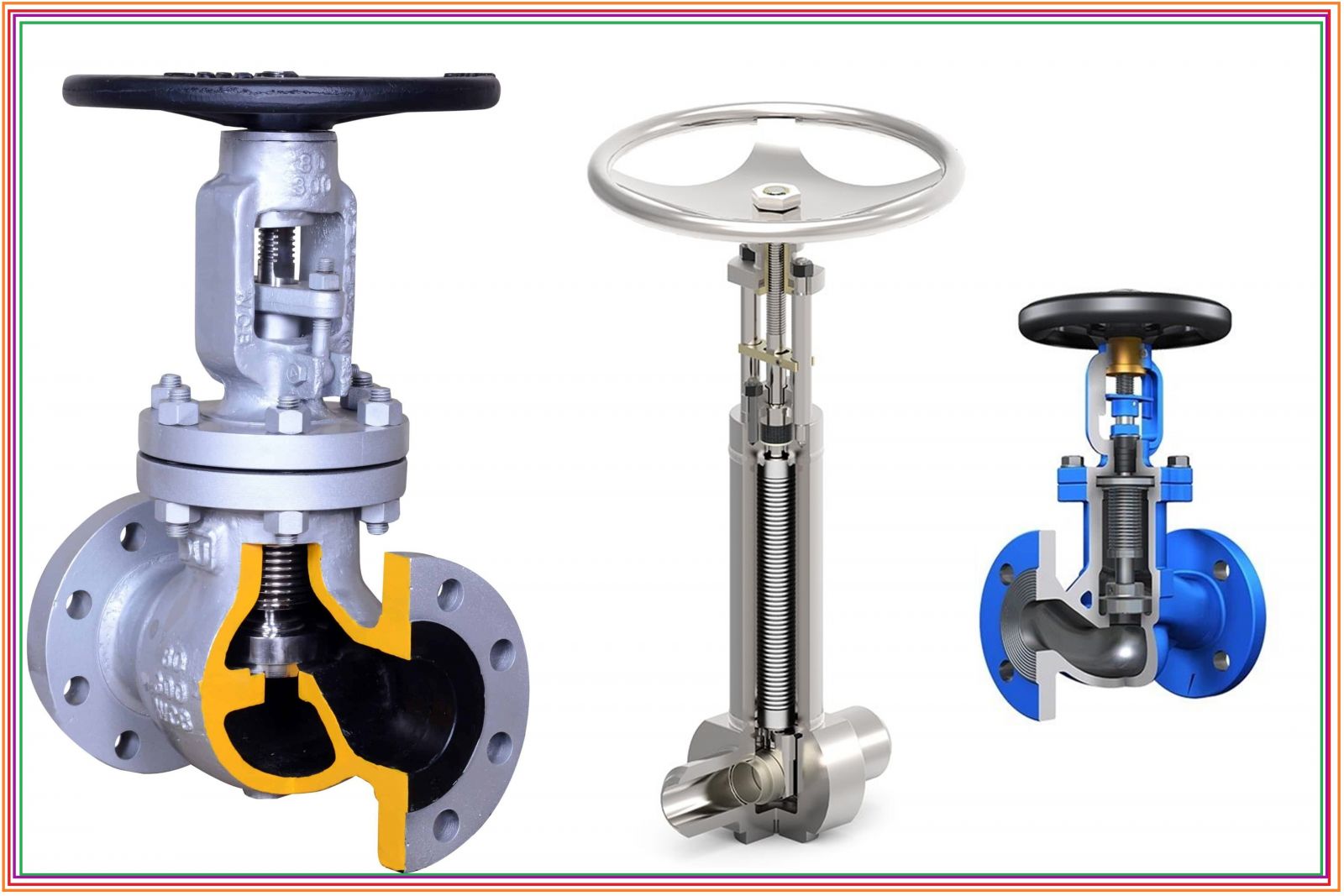

What Is a Bellows Seal Valve? When Should You Use a Bellows Seal Valve?

⚙️ Structure of a bellows seal valve

A bellows seal valve typically consists of:

Valve body
Valve stem
Metal bellows assembly
Bonnet
Disc (valve plug)

👉 Key feature:
The bellows is welded at one end to the stem and the other end to the bonnet, forming a completely sealed system.

🔄 Working principle

During operation:

The valve stem moves up and down
The bellows expands and contracts accordingly
No fluid escapes to the external environment

👉 This ensures zero leakage performance.

📌 Advantages of bellows seal valves

✔️ 1. Zero leakage performance

Eliminates leakage at the stem compared to traditional packing systems.

✔️ 2. Environmental safety

Prevents leakage of toxic gases, chemicals, and steam.

✔️ 3. Long service life

Metal bellows offer excellent fatigue resistance and stable operation.

✔️ 4. Reduced maintenance

No need for frequent packing replacement like conventional valves.

⚠️ Disadvantages

Higher cost compared to standard valves
More complex structure
Not suitable for extreme vibration or mechanical overload conditions

🏭 When should you use a bellows seal valve?

Bellows seal valves are recommended in the following cases:

🔥 1. Hazardous or toxic media

Toxic gases
Corrosive chemicals
Volatile fluids

🔥 2. Zero-leakage requirements

Critical safety systems
High-standard industrial plants

🔥 3. High temperature and pressure systems

Steam systems
Thermal power plants

🔥 4. Specialized industries

Chemical processing
Pharmaceutical industry
Oil & gas industry
LNG and cryogenic applications

📊 Comparison: standard valve vs bellows seal valve

Criteria	Standard Valve	Bellows Seal Valve
Stem leakage	Possible	Almost zero
Packing system	Yes	No
Maintenance	Frequent	Low
Environmental safety	Medium	Very high
Cost	Lower	Higher

🏁 Conclusion

A bellows seal valve is an ideal solution for systems requiring high safety and zero-leakage performance.

👉 Key takeaways:

Bellows = flexible metal sealing element
Function = prevent stem leakage
Applications = chemicals, steam, oil & gas
Main benefit = safety + zero leakage
