1. What Is a Steam Trap?

A steam trap is a device used to discharge condensate while retaining live steam inside pipelines or steam-using equipment.

Its main functions include:

• Removing condensate at the right time

• Preventing steam loss

• Improving heat transfer efficiency

• Protecting equipment from water hammer

• Reducing boiler fuel consumption

A steam trap acts like an “automatic valve” that distinguishes steam from condensate based on temperature, pressure, and density.

---

2. Why Must Factories Install Steam Traps?

✅ 2.1. Remove condensate from the system

If condensate is not removed properly, it will:

• reduce heat transfer efficiency,

• cause corrosion in pipelines,

• shorten equipment lifespan.

✅ 2.2. Save 8–15% fuel consumption

A leaking or failed trap → boiler runs harder → fuel cost increases.

✅ 2.3. Prevent water hammer accidents

Condensate buildup may cause:

• pipe vibration,

• flange breakage,

• heat exchanger failure.

✅ 2.4. Extend system lifespan

A functional trap keeps steam dry → protects the entire system.

---

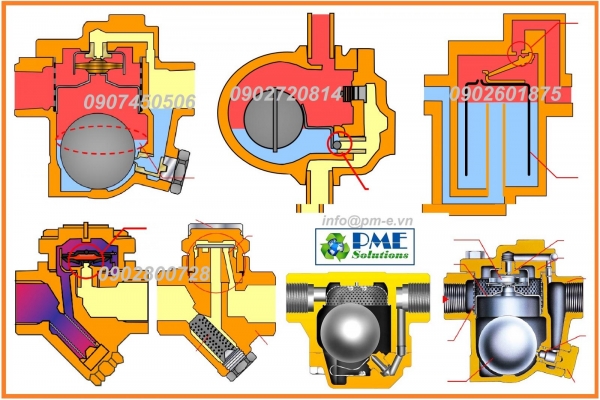

3. Steam Trap Structure

Depending on the model, a steam trap may include:

• Body (cast iron, steel, stainless steel)

• Float, bimetal element, or orifice

• Seat & disc

• Built-in strainer

• Cover assembly

---

4. Types of Steam Traps – Advantages & Disadvantages

Steam traps are divided into three main groups:

---

✅ 4.1. Float Type Steam Trap

Applications: heat exchangers, heating coils, steam tanks.

Advantages:

• Continuous discharge

• Stable at varying loads

• Reliable performance

Disadvantages:

• Not suitable for high-pressure steam

• Higher cost

---

✅ 4.2. Thermodynamic Steam Trap

Applications: main steam lines, outdoor systems, long piping.

Advantages:

• Compact and inexpensive

• High-pressure capability

• Durable & low maintenance

Disadvantages:

• Sensitive to weather/wind

• Not ideal for equipment requiring stable steam

---

✅ 4.3. Thermostatic Steam Trap

Applications: CIP, jacket kettles, food & pharmaceutical processes.

Advantages:

• Discharges condensate when cold

• Ensures extremely dry steam

• Ideal for hygiene-critical industries

Disadvantages:

• Slower discharge rate than float traps

---

✅ 4.4. Orifice Steam Trap

Advantage: No moving parts → extremely durable.
Disadvantage: Prone to clogging.

---

5. Comparison Table of Steam Traps (2025 Standard)

---

6. How Steam Traps Work

✅ 6.1. Float Trap

Condensate fills chamber → float rises → opens valve → discharges → level drops → closes.

✅ 6.2. Thermodynamic Trap

Based on speed difference between steam & condensate:
Steam creates pressure → closes disc → condensate enters → disc opens → discharge → repeat.

✅ 6.3. Thermostatic Trap

Thermal element expands with steam → closes; contracts with cold condensate → opens.

---

7. How to Select the Correct Steam Trap for Industrial Systems

✅ 7.1. Select by condensate load (kg/h)

Based on equipment capacity:

• Heat exchangers: 10–30% of steam load

• Heating coils: 5–15%

✅ 7.2. Select by steam pressure (bar)

High pressure → choose:

• thermodynamic trap

• high-pressure float trap

• thermostatic for precision

✅ 7.3. Select by temperature

Steam 180–220°C → cast iron
Steam 220–300°C → carbon steel
Steam >300°C → stainless steel / alloy

✅ 7.4. Select by application

✅ 7.5. Select by brand

Phuc Minh supplies traps from:

• VYC - Spain

• Samyang – Korea

• TungLung - Taiwan

• Spirax Sarco – Germany

• Yoshitake – Japan

• TLV – Japan

• VENN - Japan

• Yooyoun - Korea

• YNV - Korea

---

8. Installation Guide for Steam Traps

✅ 8.1. Install a strainer before the trap

20–80 mesh filter prevents clogging.

✅ 8.2. Install a pocket (drip leg)

Helps collect condensate effectively.

✅ 8.3. Follow flow direction

Wrong direction → trap fails.

✅ 8.4. Maintain pipe slope of 1–2%

Condensate flows naturally into the trap.

✅ 8.5. Install a bypass line

For maintenance without shutdown.

---

9. Signs of a Failed Steam Trap – Troubleshooting

✅ Signs:

• No condensate discharge

• Continuous white steam leak

• Loud knocking (water hammer)

• Increased fuel consumption

✅ Causes:

• Worn float or bimetal element

• Weak spring

• Seat blocked by debris

• No strainer installed

✅ Recommended maintenance:

Every 6–12 months
Industry trap failure rate: 15–30%

---
