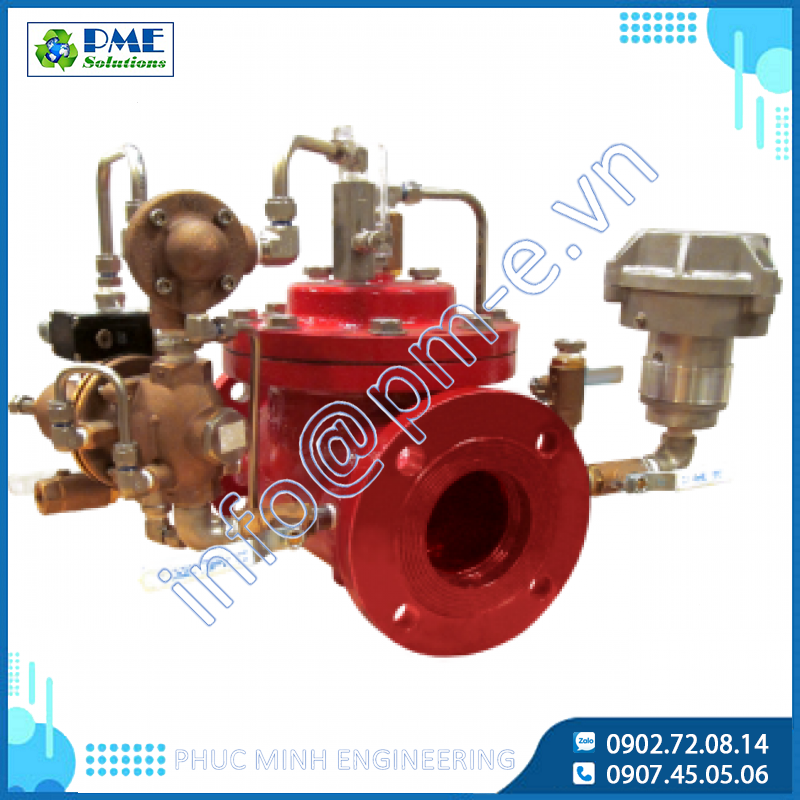

116-5MR

Pressure Reducing, Solenoid Shutoff Deluge Valve

Electrically controlled deluge valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 3w solenoid valve is energized. The valve must be manually reset following automatic activation using the ball valve manual reset lever. When tripped, the valve regulates to a steady, preset downstream pressure, regardless of upstream pressure or flow rate fluctuations. An emergency manual release valve is fitted as standard.

FEATURES & BENEFITS

• Opens quickly when the solenoid valve is activated
• Reduces a higher upstream pressure to a lower downstream pressure
• Constant downstream pressure over a wide flow range
• Downstream pressure is adjustable with single screw
• Adjustable opening speed control
• Manual override to open the valve fully
• Local ball valve manual reset assembly prevents closure using solenoid valve
• Visual indicator for indication of main valve position
• Large supply drain port to drain sprinkler main
• Factory tested
• Can be installed both vertically or horizontally
• Wide range of materials available
