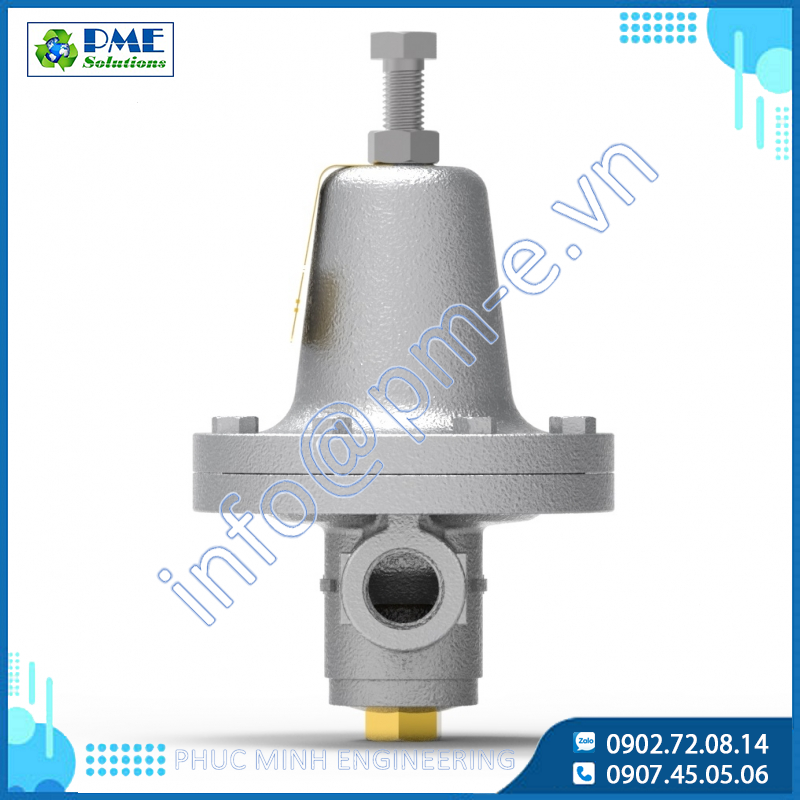

YPR-50 Type Pressure Reducing Valve for Steam 10K

Install a water separator at the inlet of the pressure reducing valve to prevent flow of water coming in and to ensure removal of condensation water.

Features

• Direct operating pressure reducing valve for small flow for outstanding pressure control performance and wide pressure regulating range.
• Stainless steel components for corrosion resistance, long service life and durability.


Specifications:

• Type: YPR-50
• Size: DN15 ~ DN25
• Structure: Direct operating
• Applicable fluid: Steam
• Primary Pressure: Max. 1.0MPa
• Secondary pressure regulating range: 0.02~0.1MPa (for low pressure), 0.1~0.2MPa (for medium pressure), 0.2~1MPa (for standard pressure)
• Maximum pressure reduction ratio: 10:1
• Minimum differential pressure in the inlet and outlet side of the valve: 0.05MPa
• Leakage allowance: 0.01%less of rated flow (ANSI b16.104 class IV)
• Fluid temperature: 220°C below
• Material:
  • Body: GC200
  • Disc, Seat : STS
  • Diaphargm: STS
• Connection: KS PT SCREW
• Hydraulic Test pressure: 1.5MPa

▶ Strainer (over 80 Mesh ) installation is required to ahead inlet when valve installing.

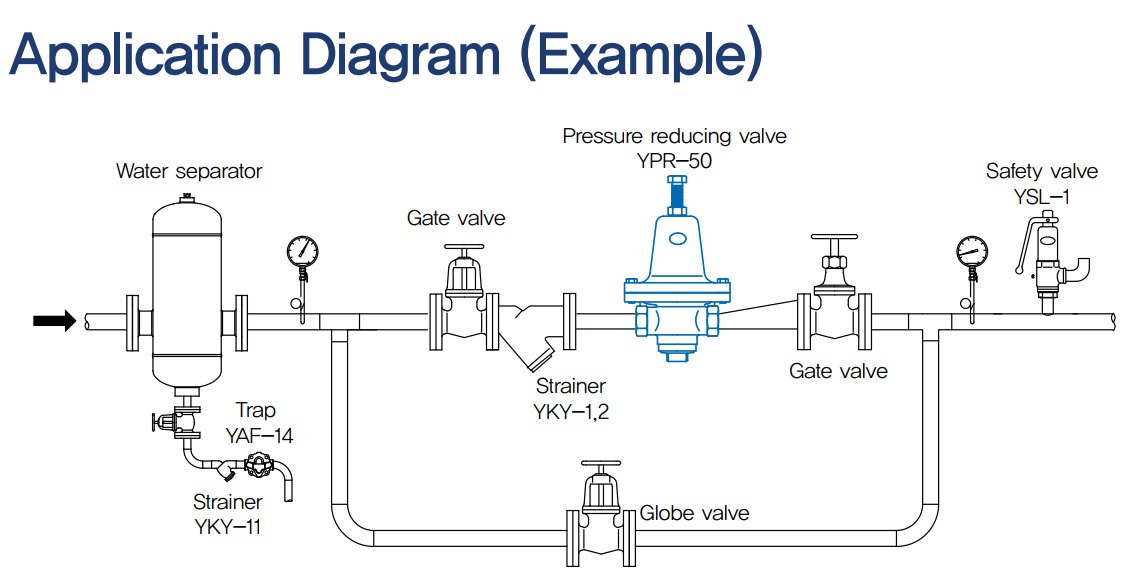

▶ Install a water separator at the inlet of the pressure reducing valve to ensure the removal of condensate
