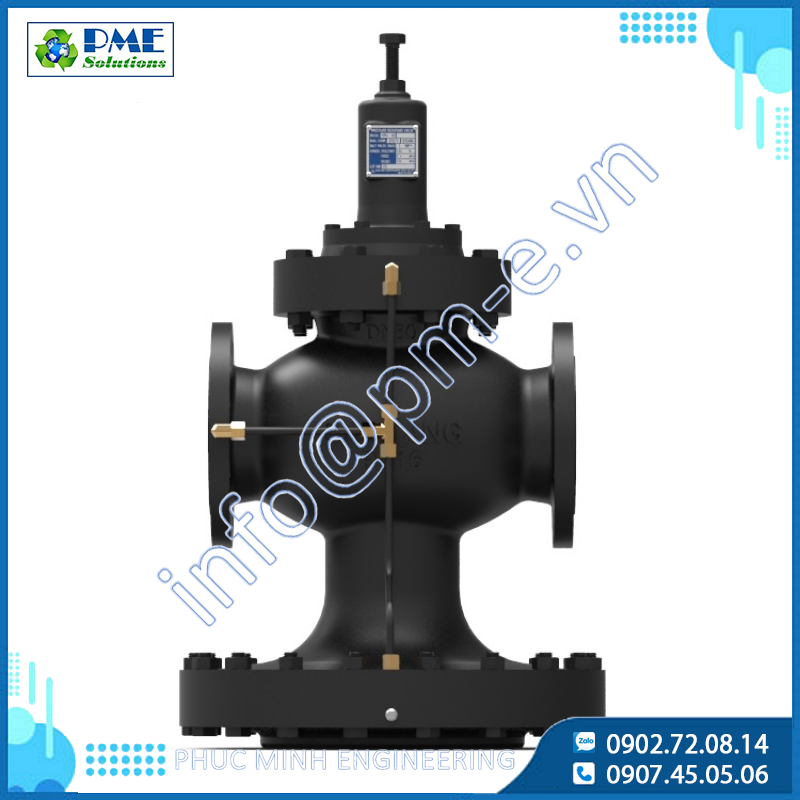

YPR-100 - Pressure Reducing Valve For Steam

• Type: YPR-100
• Size: 15(½”) ~ 150(6”)
• Structure: Pilot
• Applicable fluid: Steam
• Fluid temperature: 220℃ below
• Primary pressure: Max.1.7 MPa.
• High pressure regulating range: 0.02~0.2MPa (for low pressure), 0.14~0.69MPa (for medium pressure), 0.55~1.37MPa (for high pressure)
• Maximum pressure reduction ratio: 14:1
• Minimum differential pressure in the inlet and outlet side of the valve: 0.05MPa
• Leakage allowance: 0.01% less of rated flow
• End connection: KS 10K RF Flange
• Materials:
  • Body: GCD450
  • Disc, Seat: STS
  • Diaphragm: Copper
• Hydraulic Test Pressure: 2.6 MPa

▶ Strainer (over 80 Mesh ) installation is required to ahead inlet when valve installing.
▶ Install a water separator at the inlet of the pressure reducing valve to ensure the removal of condensate
