Wj 1841 Series

Carbonized Fiber Packing Series

Carbonized Fiber Packing Series

Characteristic

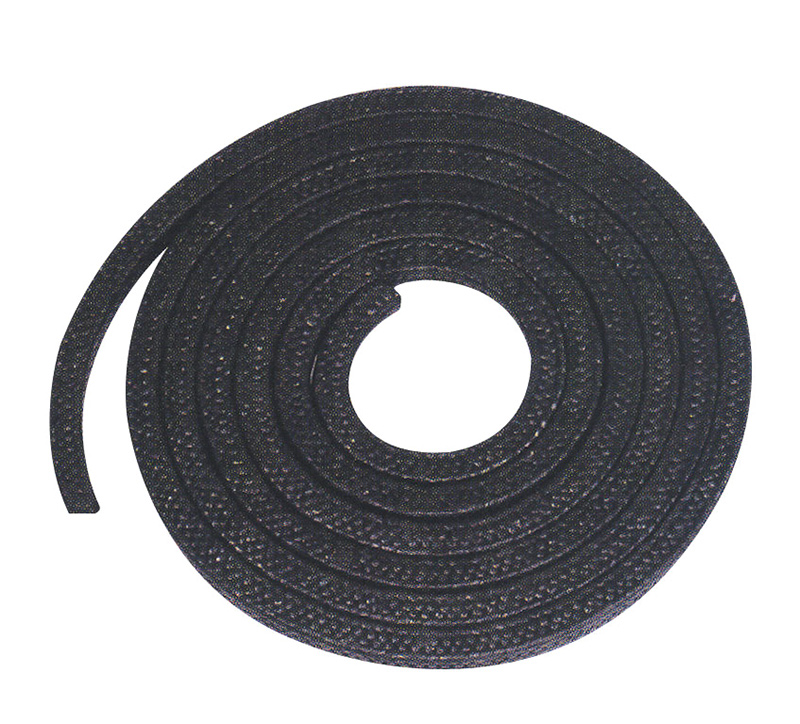

• Wj1841 is a braided coil product that cross section is to be a square shape.
• It is excellent in thermal and chemical, resistance and has long durability of products because there is low product damage by frictional heat due to excellent selflubricating property.
• In accordance with fluids, there are three types that combines graphite, PTFE and special lubricant.
• 1) Wj 1841G Carbonized Fiber Packing with Graphite

Application

• Valves for acid and alkali solvents sea water, industrial and other fluids.
• 2) Wj 1841P Carbonized Fiber Packing with PTFE(Valve use)
• 3) Wj 1841L Carbonized Fiber Packing with Lubrication Oil and PTFE(Pump use)

Specification:

Service
P(bar)	50	200	200
T(°C)		300
PH		2~12
V(m/s)	16	2.5	2

Service
P(bar)	-	200	200
T(°C)		300
PH		2~12
V(m/s)	16	2.5	2

Service
P(bar)	50	200	200
T(°C)		200
PH		2~12
V(m/s)	16	2.5	2
