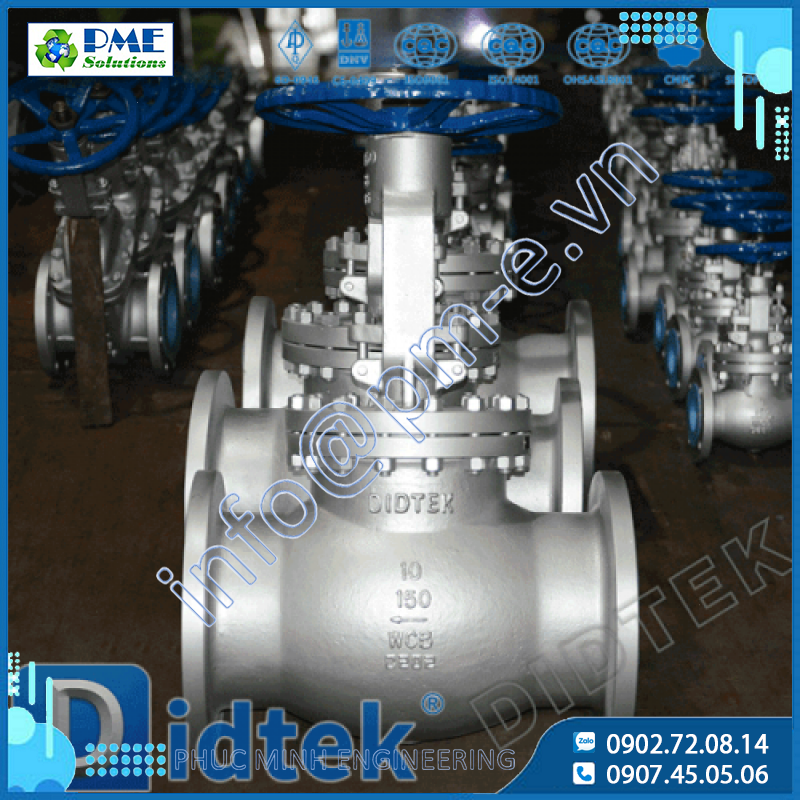

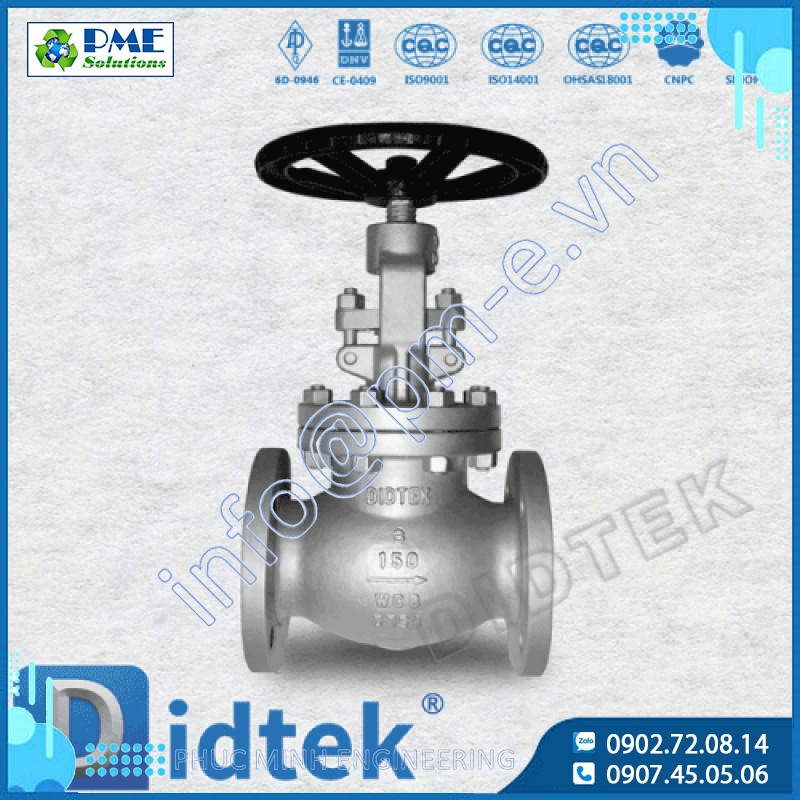

Didtek Cast steel Globe Valves are manufactured to the latest edition of BS1873 and tested to API Standard 598.
Applicable Standards:
– Globe valve, BS1873
– Steel Valves, ASME B16.34
– Face to face ASME B16.10
– End Flanges ASME B16.5/ASME B16.47
– Butt welding ends ASME B16.25
– Inspection and test API 598
Pressure Range:
– ASME CL, 150, 300, 600, 900, 1500, 2500
Tempreature Range:
– -50°C~650°C
Size Range:
– 2”~24”

Design Description:
– Outside Screw and York
– Bolted Bonnet and Pressure Seal
– Flexible wedge, fully guided
– Rising stem and non-rising stem
– Available with gear operator
– Flange Ends
– Buttwelding Ends
– Seat welded stellite or 13% Cr”
