Safety Valves

Safety valve model 496 of VYC for steam

Price: Contact

  • Model: 496
    • Model: 496AP/496ES/496CP/496EP
    • Size: 20×32 – 200×300
    • Material: Cast Iron/ Steel/ Stainless Steel
    • Connection: Flange PN16, PN25, PN40
    • Operating Temperature: -60 ~ 300ºC
    • Maximum working pressure: PN40
  • Trademark: VYC
  • Origin: Spain
  • Steam safety valve

    Steam safety valve is a type of safety valve specialized in hot steam pipelines. If the plant has hot steam pipelines or boilers, it is necessary to install at least one heat safety valve to limit the danger to the plant's system.

    Technical characteristics VYC Model 496 Safety valve for steam

    • Size: 20×32 – 200×300
    • Material: Cast Iron/ Steel/ Stainless Steel
    • Connection: Bich
    • Operating Temperature: -60 ~ 300ºC
    • Maximum working pressure: PN40
    • Activated by direct acting Helicoid springs.
    • Materials are carefully selected to be resistant to corrosion. With the exception of washers and couplings, the valves contain no non-ferrous materials.
    • The inner body is designed to provide a favorable flow profile.
    • The sealing surface is treated and balanced, making them extremely tight
    • Large discharge capacity.
    • All components are numbered, registered and tested.

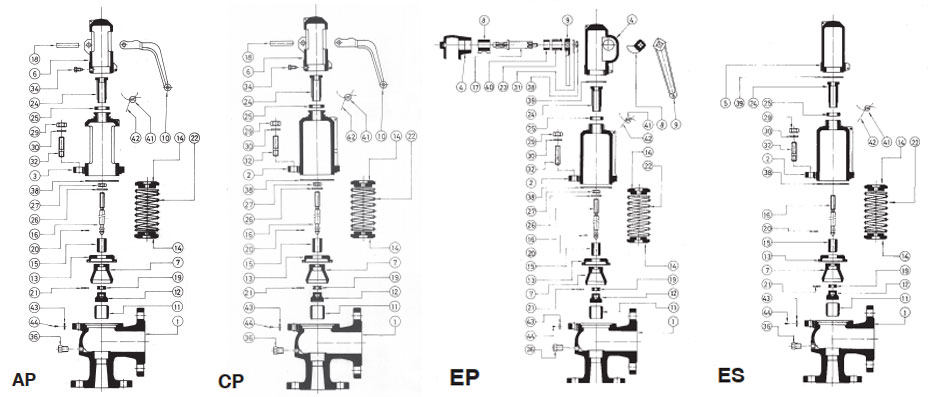

    Construction of VYC Model 496 Safety valve for steam



    Download catalogues

     Fabrication Program
     Catalogues by product
     Operating principles AP CP EP ES


     Assembly and disassembly instructions AP CP EP ES


     Complementary technical instructions
     Categorisation C Є
