What Is the Difference Between a Gasket and a Seal? A Complete Industrial Guide

In industrial systems, proper sealing is essential to prevent leakage, maintain pressure, and ensure safe operation. Two of the most common sealing terms are gasket and seal, but many people still confuse them.

Although both are designed to prevent leaks, they are used in completely different operating conditions. This article from PM-E.vn explains the difference between gasket and seal, helping you choose the right product for your system.

What Is a Gasket?

A gasket is a sealing material placed between two stationary surfaces, usually flanges or equipment covers. When bolts are tightened, the gasket is compressed to fill gaps and prevent liquids or gases from escaping.

Common Gasket Applications:

• Pipe flanges
• Industrial valves
• Heat exchangers
• Boilers
• Automotive engines
• Chemical tanks

Common Types of Gaskets:

• EPDM / NBR / Viton rubber gaskets

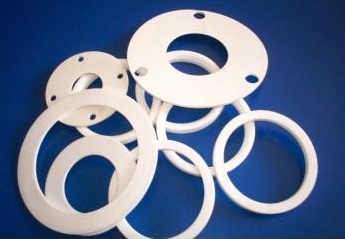

• PTFE Teflon gaskets

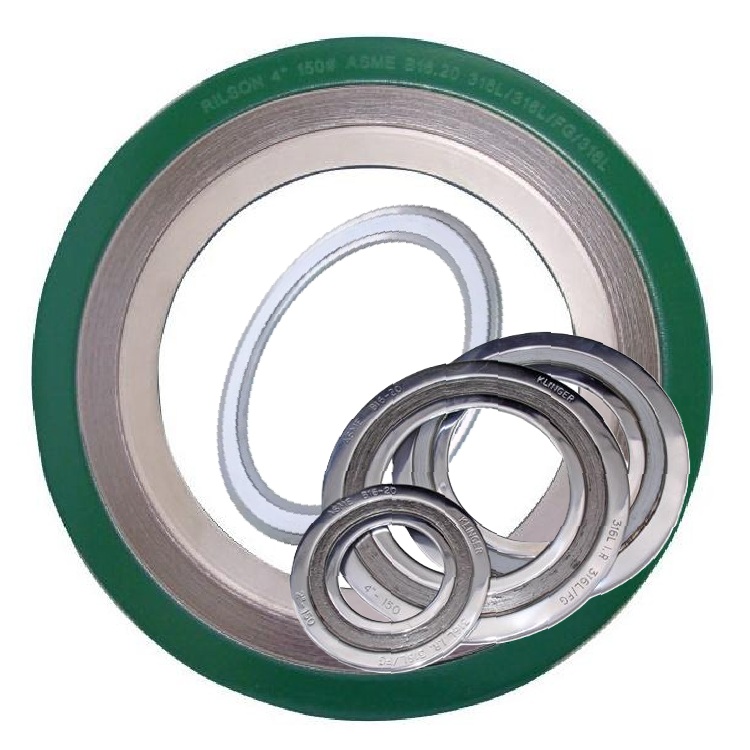

• Spiral wound gaskets
• Ring joint gaskets
• Graphite gaskets
• Non-asbestos gaskets

What Is a Seal?

A seal is a sealing device used for moving components, such as rotating shafts, pistons, or valve stems. Seals are designed to withstand friction, wear, and motion while preventing leakage during operation.

Common Seal Applications:

• Industrial pumps
• Motor shafts
• Gearboxes
• Hydraulic cylinders
• Air compressors
• Control valves

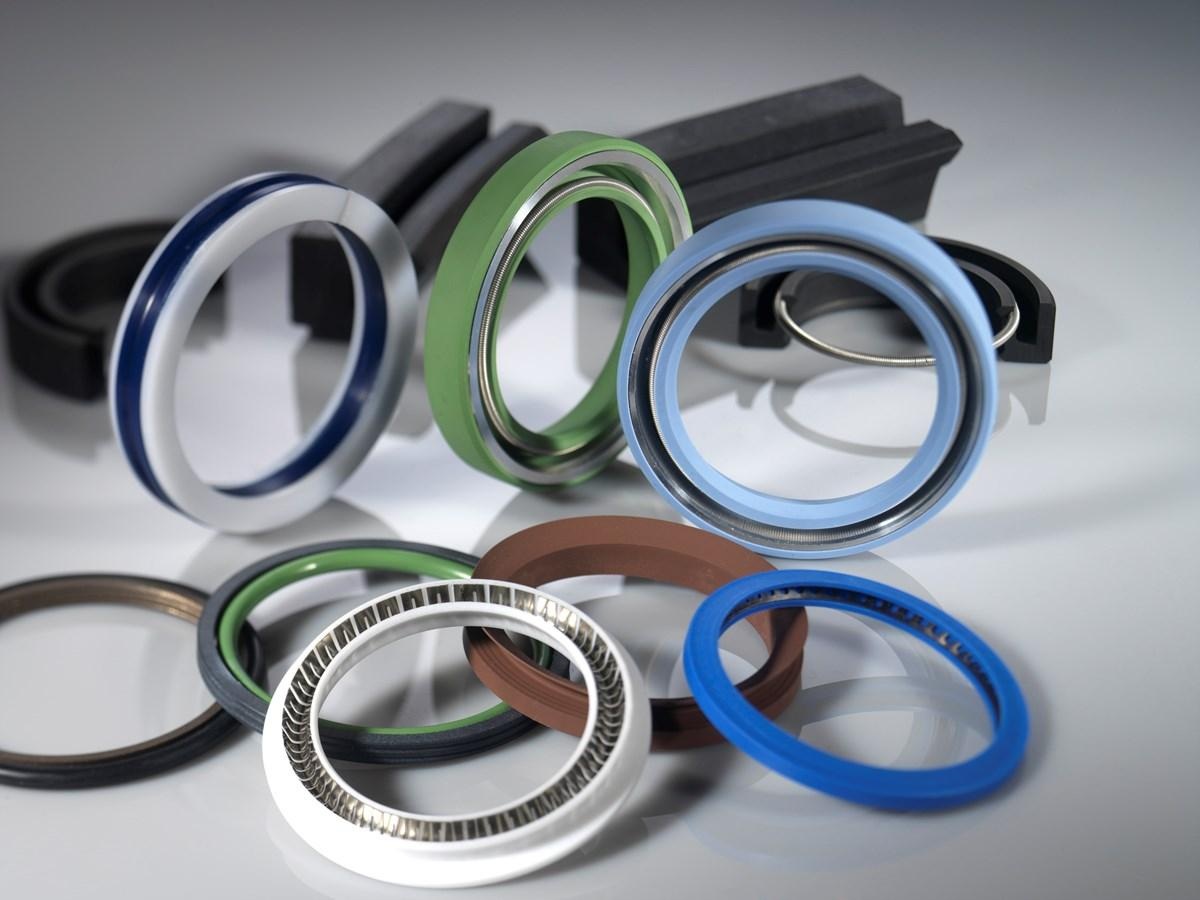

Common Types of Seals:

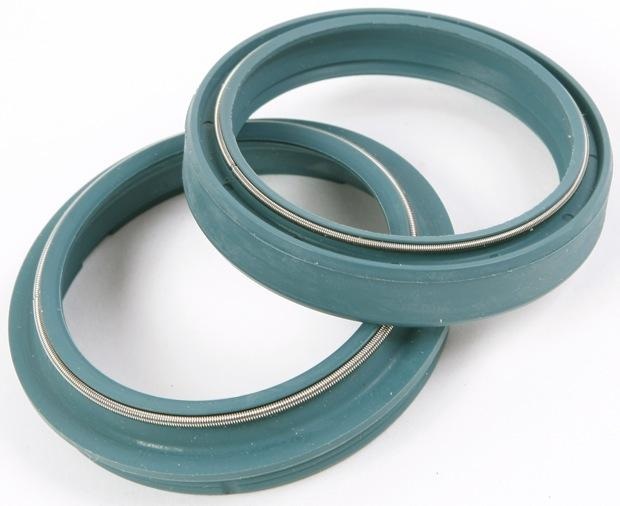

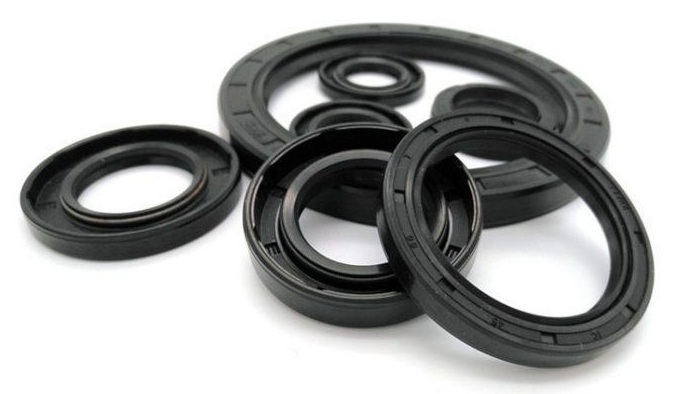

• Oil seal

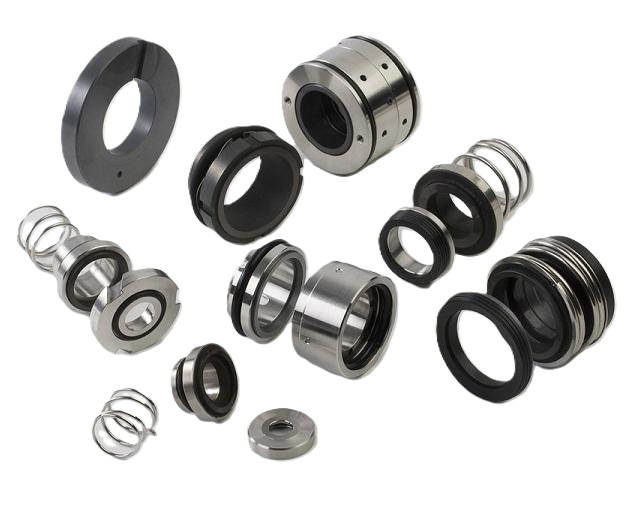

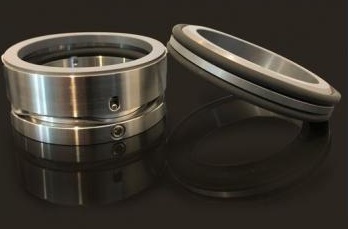

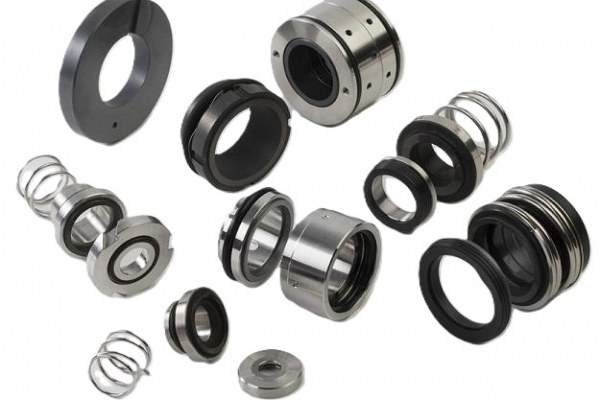

• Mechanical seal
• Lip seal
• Rotary shaft seal
• O-ring seal
• Valve stem seal

Key Differences Between Gasket and Seal

When Should You Use a Gasket?

Use a gasket when the system has:

• Pipe flanges
• Fixed joints with no movement
• High temperature or high pressure
• Steam, oil, or chemical service

Examples: steam valve flanges, hot oil pipelines, heat exchangers.

When Should You Use a Seal?

Use a seal when there is:

• Continuous shaft rotation
• Reciprocating piston movement
• Pump or motor operation
• Need to prevent oil leakage at high speed

Examples: centrifugal pumps, gearboxes, electric motors.

Materials Used for Gaskets and Seals

Gasket Materials:

• PTFE
• Graphite
• Non-asbestos
• EPDM
• Stainless steel SS304 / SS316

Seal Materials:

• NBR
• FKM / Viton
• Silicone
• PTFE
• Ceramic + Carbon (mechanical seal)

Risks of Choosing the Wrong Gasket or Seal

Incorrect selection may cause:

• Fluid leakage
• Pressure loss
• Shaft damage
• Increased maintenance cost
• Unexpected shutdowns
• Safety hazards

How to Choose the Right Gasket or Seal

Consider the following:

1. Operating temperature
2. System pressure
3. Media type: water, steam, oil, chemicals
4. Whether movement exists
5. Standard size: DIN / ANSI / JIS
6. Maintenance frequency

PM-E.vn Supplies Industrial Gaskets and Seals

PM-E.vn supplies:

• Spiral wound gaskets
• Ring joint gaskets
• PTFE gaskets
• EPDM / NBR / Viton rubber gaskets
• Mechanical seals for pumps
• Industrial oil seals
• Custom flange gaskets

We provide high-quality products, technical support, and nationwide delivery.

FAQ

Is a gasket the same as a seal?

Not exactly. A gasket is mainly for static sealing, while a seal is often used for dynamic sealing.

Is an O-ring a gasket or a seal?

It can be used as both, depending on the application.

Where are mechanical seals used?

Mostly in pumps, mixers, and compressors.

Can a gasket be reused?

Generally, reusing a gasket is not recommended if proper sealing is required.

Conclusion

Understanding the difference between gasket and seal helps businesses choose the right sealing solution, improve equipment life, and reduce leakage risks. Gaskets are ideal for stationary joints, while seals are best for moving components.

If you need support selecting industrial gaskets, pump seals, or flange sealing products, contact PM-E.vn for expert technical assistance.
