FREQUENTLY ASKED QUESTIONS ABOUT LEVER FLOAT STEAM TRAPS

Lever Float Steam Traps are mechanical steam traps widely used in industrial steam systems that require continuous and stable condensate discharge.

These steam traps operate using a float connected to a lever mechanism that automatically controls the condensate discharge valve. They are highly suitable for heat exchangers, heating coils, and industrial steam systems with large condensate loads.

Below are some of the most frequently asked questions to help users better understand and properly select Lever Float Steam Traps.

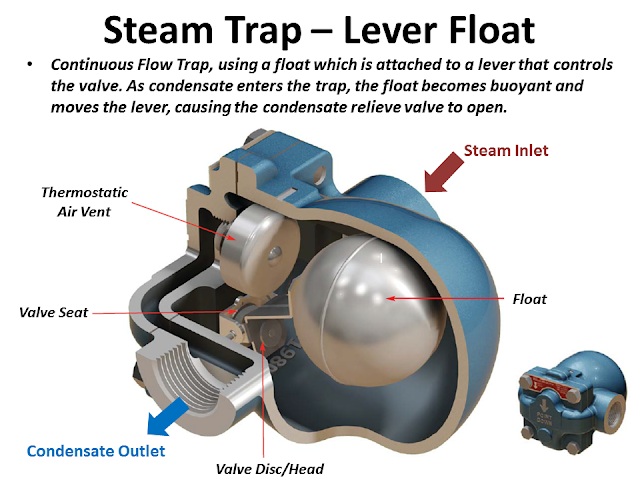

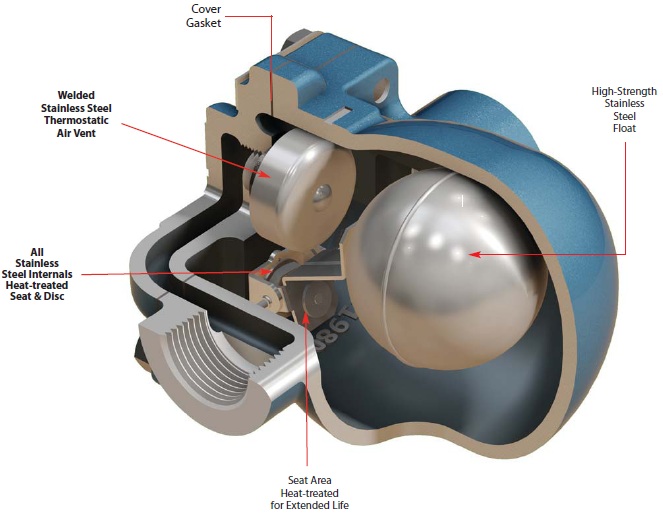

1. What Is a Lever Float Steam Trap?

A Lever Float Steam Trap is a device designed to automatically discharge condensate from a steam system without allowing live steam to escape.

The trap uses:

• A float inside the valve body
• A lever mechanism
• An automatic discharge valve

As the condensate level changes, the float moves and activates the lever to open or close the discharge port.

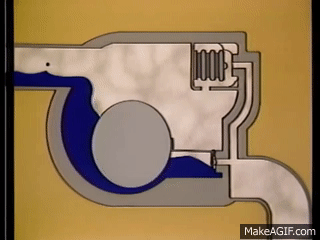

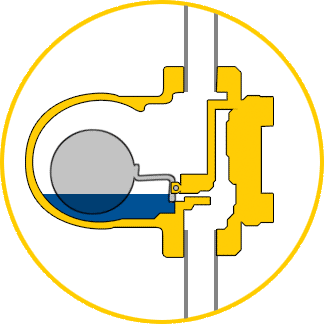

2. How Does a Lever Float Steam Trap Work?

When condensate enters the trap:

• The internal water level rises
• The float rises upward
• The lever lifts the discharge valve
• Condensate is discharged continuously

When condensate volume decreases:

• The float drops
• The discharge valve closes
• Steam leakage is prevented

This process operates automatically according to the actual condensate load.

3. What Are the Advantages of Lever Float Steam Traps?

Continuous Condensate Discharge

• Improves heat transfer equipment efficiency.

Stable Operation

• Especially suitable for large condensate loads.

Energy Saving

• Minimizes steam loss.

Quiet Operation

• Produces minimal operating noise.

High Heat Transfer Efficiency

• Reduces condensate accumulation inside equipment.

4. What Are the Disadvantages of Lever Float Steam Traps?

Some limitations include:

• Larger size compared to disc steam traps
• Higher initial cost
• More mechanical components
• Sensitive to dirt and debris
• Requires periodic maintenance

Without proper maintenance, the lever mechanism and valve components may wear over time.

5. Where Are Lever Float Steam Traps Commonly Used?

These steam traps are commonly used in:

• Heat exchangers
• Heating coils
• Steam sterilizers
• HVAC systems
• Industrial dryers
• Food processing equipment
• Chemical plants
• Pharmaceutical plants
• Low and medium-pressure steam systems

6. Why Do Lever Float Steam Traps Improve Heat Transfer Efficiency?

Due to continuous condensate discharge:

• Condensate does not accumulate
• Heat transfer surfaces remain exposed to steam
• Waterlogging is minimized
• Equipment efficiency improves

This helps:

• Save energy
• Reduce heating time
• Maintain stable operating temperatures

7. Should a Y-Strainer Be Installed Before the Steam Trap?

YES.

A Y-strainer helps:

• Prevent dirt and debris from entering the steam trap
• Protect the valve seat and mechanism
• Reduce the risk of float blockage
• Extend equipment lifespan

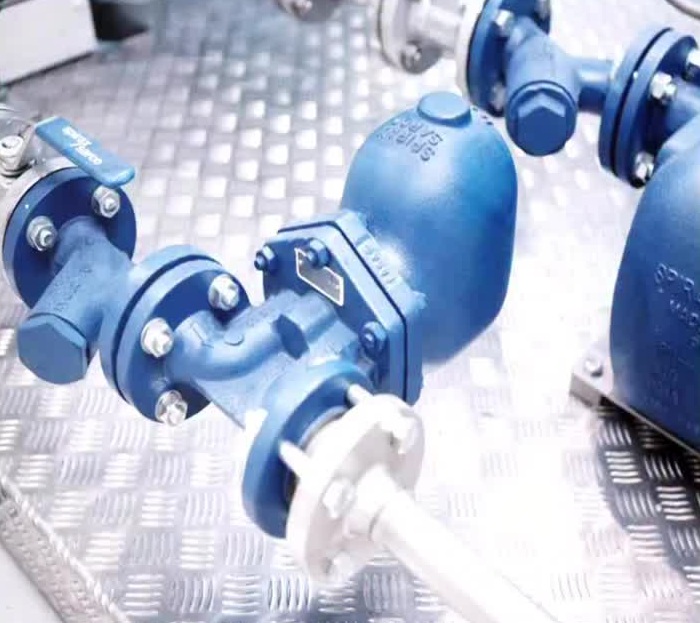

A recommended installation includes:

• One Y-strainer before the steam trap
• Isolation valves before and after the trap for easier maintenance

8. Should Lever Float Steam Traps Be Installed Horizontally or Vertically?

Most Lever Float Steam Traps are designed for horizontal installation.

Incorrect installation may cause:

• Improper float movement
• Incorrect valve operation
• Steam leakage
• Poor condensate discharge

Always follow the manufacturer’s installation instructions.

9. Why Does a Lever Float Steam Trap Leak Steam?

Common causes include:

• Worn valve seat
• Dirt or debris inside the trap
• Damaged or punctured float
• Misaligned lever mechanism
• Incorrect operating pressure

Steam leakage may result in:

• Energy loss
• Increased operating costs
• Reduced system efficiency

10. How Often Should Steam Traps Be Inspected?

Generally recommended:

• Inspect every 3–6 months
• Heavy-duty systems may require more frequent inspections

Inspection methods include:

• Thermal imaging cameras
• Ultrasonic testing devices
• Temperature measurement
• Condensate flow monitoring

11. How to Select the Right Lever Float Steam Trap?

Important selection factors include:

• Working pressure
• Condensate load
• Operating temperature
• Pipe size
• Connection type
• Valve body material
• Actual application requirements

Selecting the correct steam trap helps:

• Improve operating efficiency
• Save steam energy
• Reduce maintenance costs

12. Which Brands of Lever Float Steam Traps Are Recommended?

Popular brands include:

• TLV
• Yoshitake
• Armstrong
• Spirax Sarco
• Miyawaki
• Watson McDaniel

It is recommended to choose:

• Genuine products
• Products with full CO-CQ certification
• Proper technical specifications
• Reliable technical support

13. Does PM-E Supply Lever Float Steam Traps?

PM-E specializes in supplying:

• Lever Float Steam Traps
• Mechanical Steam Traps
• Japanese Steam Traps
• Industrial steam valves
• Genuine steam equipment

PM-E provides:

• Technical consultation
• Proper model selection support
• Fast quotation service
• Nationwide delivery

Conclusion

Lever Float Steam Traps are highly effective solutions for steam systems requiring:

• Continuous condensate discharge
• High heat transfer efficiency
• Stable operation
• Energy savings

To ensure long-term and efficient system performance, users should:

• Select the correct steam trap type
• Install the trap properly
• Perform regular maintenance
• Use genuine products

If you need assistance selecting the right steam trap for your industrial steam system, PM-E is ready to provide fast and professional technical support.
