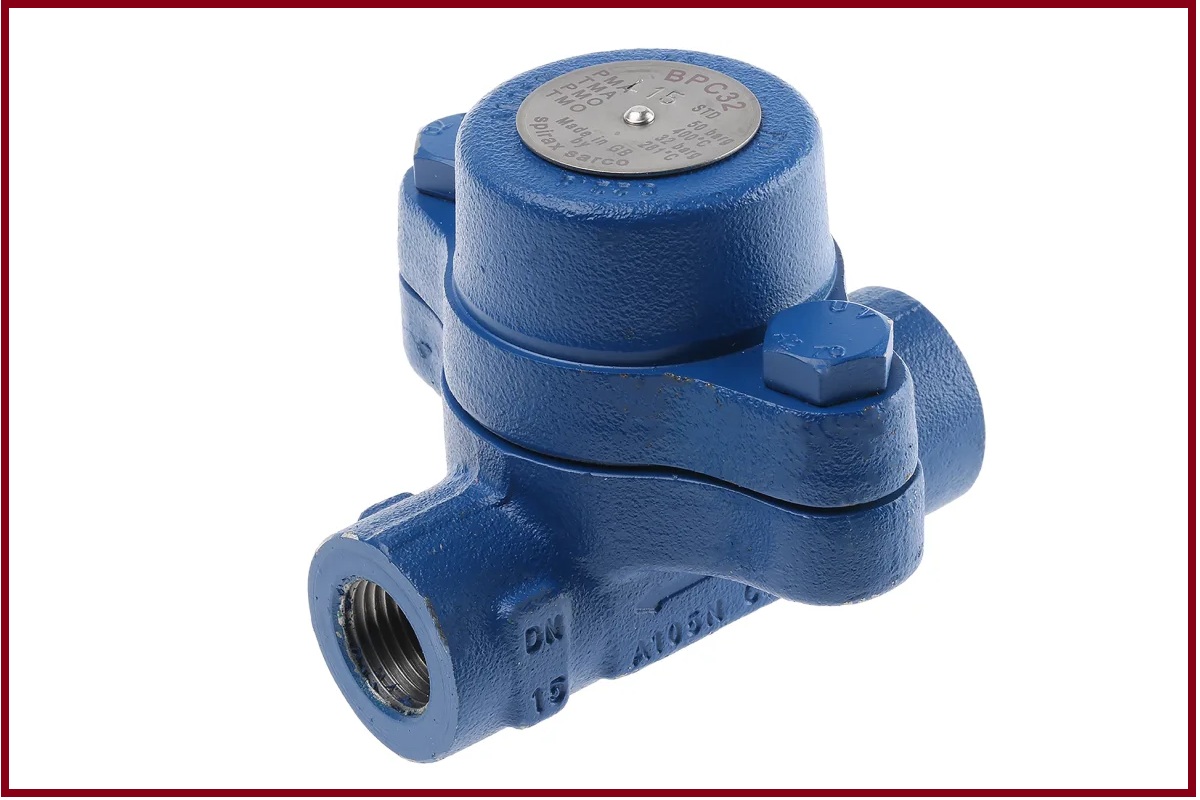

FREQUENTLY ASKED QUESTIONS ABOUT THERMOSTATIC STEAM TRAPS

Thermostatic Steam Traps are steam traps that operate based on the temperature difference between steam and condensate.

These steam traps are widely used in systems requiring efficient removal of air, cold condensate, and non-condensable gases to improve heat transfer efficiency and save energy.

Below are some of the most frequently asked questions to help users better understand and properly select Thermostatic Steam Traps.

---

1. What Is a Thermostatic Steam Trap?

A Thermostatic Steam Trap is a device designed to automatically discharge condensate and non-condensable gases from a steam system without allowing live steam to escape.

The trap operates based on:

• Fluid temperature
• Expansion and contraction of a temperature-sensitive element

Common types include:

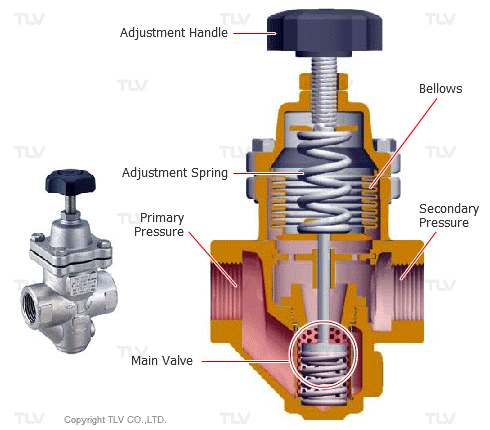

• Balanced Pressure Steam Trap

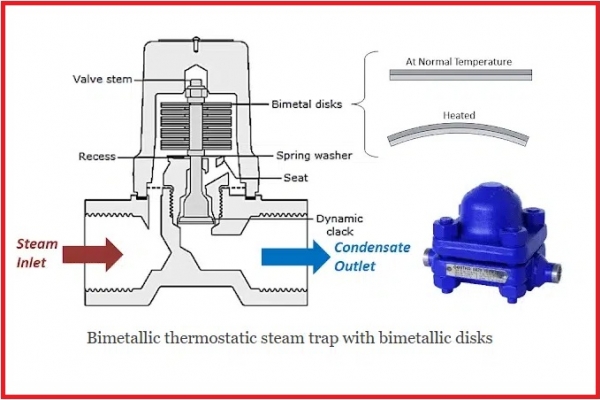

• Bimetallic Steam Trap
• Capsule Steam Trap

---

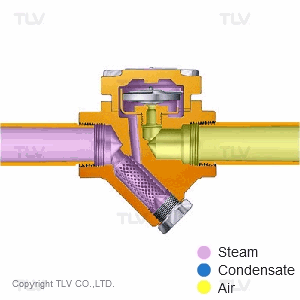

2. How Does a Thermostatic Steam Trap Work?

When cold condensate or air enters the trap:

• The temperature is low
• The sensing element contracts
• The discharge valve opens

When steam reaches the trap:

• The temperature rises
• The sensing element expands
• The discharge valve closes
• Steam loss is prevented

This process occurs automatically according to the actual system temperature.

---

3. What Are the Advantages of Thermostatic Steam Traps?

Excellent Air Venting Capability

Helps steam systems start up faster.

Energy Saving

Condensate is discharged only when its temperature drops.

Compact Design

Easy to install in limited spaces.

Quiet Operation

Produces minimal operating noise.

Suitable for Variable Loads

Performs well in systems with fluctuating loads.

---

4. What Are the Disadvantages of Thermostatic Steam Traps?

Some limitations include:

• Slower condensate discharge compared to some mechanical traps
• Less suitable for very large condensate loads
• Temperature sensing elements may age over time
• Performance may decrease if the operating temperature range is selected incorrectly

Some models may also be sensitive to severe water hammer conditions.

---

5. Where Are Thermostatic Steam Traps Commonly Used?

Thermostatic Steam Traps are commonly used in:

• Steam tracing systems
• Steam pipelines
• HVAC systems
• Small heating equipment
• Food processing equipment
• Fast air venting startup systems
• Low and medium-pressure steam systems
• Small heat exchangers

---

6. Why Do Thermostatic Steam Traps Vent Air More Efficiently?

Because the trap responds directly to temperature:

• Air and cold condensate are discharged immediately during startup
• Steam appears only after the system temperature rises
• Warm-up time is significantly reduced

This helps:

• Improve operating efficiency
• Reduce heating time
• Save energy

---

7. Should a Y-Strainer Be Installed Before the Steam Trap?

YES.

A Y-strainer helps:

• Prevent dirt and debris from entering the steam trap
• Protect the valve seat and sensing element
• Reduce the risk of valve blockage
• Extend equipment lifespan

A recommended installation includes:

• One Y-strainer before the steam trap
• Isolation valves before and after the trap for easier maintenance

---

8. Should Thermostatic Steam Traps Be Installed Horizontally or Vertically?

Installation orientation depends on the specific model and manufacturer.

Some models are designed for:

• Horizontal installation
• Vertical installation
• Either orientation

Incorrect installation may cause:

• Unstable condensate discharge
• Steam leakage
• Reduced operating efficiency

Always follow the manufacturer’s technical installation instructions.

---

9. Why Does a Thermostatic Steam Trap Leak Steam?

Common causes include:

• Damaged temperature sensing element
• Worn valve seat
• Dirt or debris inside the trap
• Operating pressure exceeding design limits
• Incorrect installation

Steam leakage may result in:

• Energy loss
• Reduced system efficiency
• Increased operating costs

---

10. How Often Should Steam Traps Be Inspected?

Generally recommended:

• Inspect every 3–6 months
• Continuous-duty systems may require more frequent inspections

Inspection methods include:

• Thermal imaging cameras
• Ultrasonic testing devices
• Temperature measurement
• Evaluation of air and condensate discharge performance

---

11. How to Select the Right Thermostatic Steam Trap?

Important selection factors include:

• Working pressure
• Operating temperature
• Condensate load
• Pipe size
• Connection type
• Required sub-cooling level
• Actual application conditions

Selecting the correct steam trap helps:

• Save steam energy
• Improve system efficiency
• Reduce maintenance costs

---

12. Which Brands of Thermostatic Steam Traps Are Recommended?

Popular brands include:

• TLV
• Spirax Sarco
• Armstrong
• Yoshitake
• Miyawaki
• Watson McDaniel

It is recommended to choose:

• Genuine products
• Products with full CO-CQ certification
• Reliable technical support
• Proper operating specifications

---

13. Does PM-E Supply Thermostatic Steam Traps?

PM-E specializes in supplying:

• Thermostatic Steam Traps
• Balanced Pressure Steam Traps
• Japanese Steam Traps
• Industrial steam valves
• Genuine steam equipment

PM-E provides:

• Technical consultation
• Proper model selection support
• Fast quotation service
• Nationwide delivery

---

Conclusion

Thermostatic Steam Traps are highly effective solutions for steam systems requiring:

• Fast air venting
• Energy savings
• Stable operation
• Compact installation

To ensure efficient and long-lasting system performance, users should:

• Select the correct steam trap type
• Install the trap properly
• Perform regular inspections
• Use genuine products

If you need assistance selecting the right steam trap for your industrial steam system, PM-E is ready to provide fast and professional technical support.
