Insulation Sets - WSGE (Stainless Steel Core + Glass Reinforced Epoxy) - WOOJU GASPACK

Price: Contact

Model: WSGE

Insulation Sets - WSGE (Stainless Steel Core + Glass Reinforced Epoxy) - WOOJU GASPACK

Trademark: WOOJUGASPACK

Origin: Korea

Order

Project details Download Catalogue Evaluate

Stainless Steel Core + Glass Reinforced Epoxy

WSGE

Characteristic

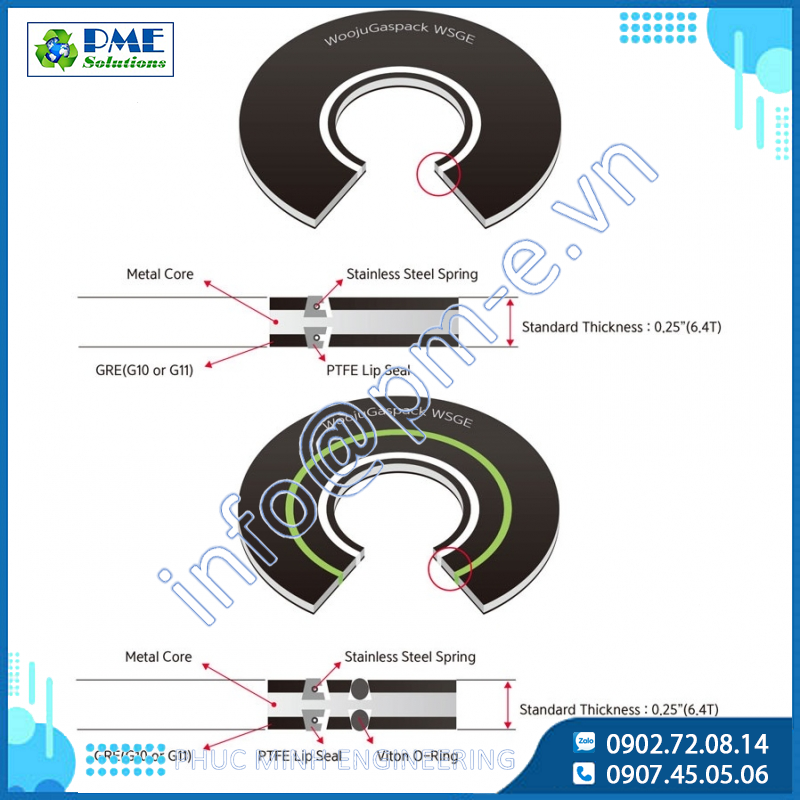

WSGE is consist of high strength glass reinforced epoxy laminate bonded to 316L core of stainless steel. WSGE is suitable for all services, including ANSI 600 to 2500 class and API 15000, has two types, single type and double type. Single type uses PTFE lip seals with sophisticated spring sealing elements, and double type has Viton O-ring on the outside of PTFE

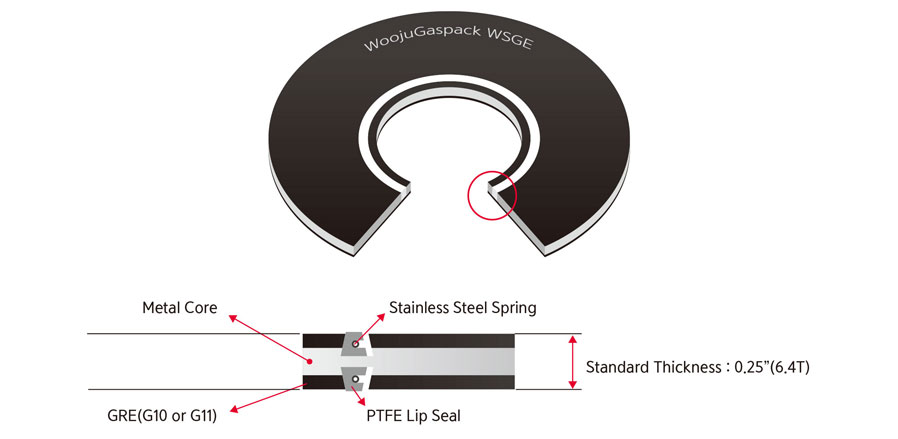

Single Type

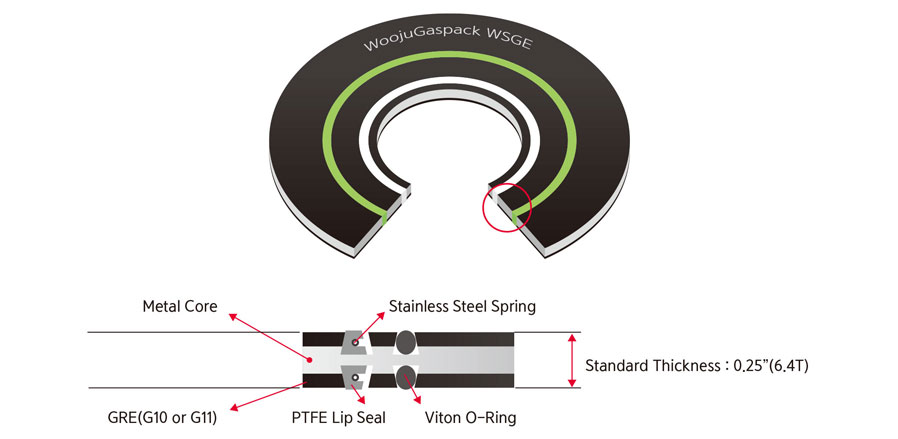

Double Type

Advantages and benefits

Extreme, high-reliability sealing and electrical isolation solution for critical service applications.
Seals and isolates all pressure ratings through ANSI 2500 class and API 10,000 psi service.
Withstands severe service conditions including vibration, temperature and pressure fluctuations.
Designed to with stand corrosive environments.
Good electrical isolation properties for cathodic protection.
Pressure-activated seals provide high confidence sealing, eliminates costly leaks and provides a solution for fugitive emissions.
Gasket is sized to the bore to protect flange faces from media-induced corrosion and flow induced erosion.
High-strength laminate material resists failure due to excessive compression.
Available to match any flange specification. (ANSI, ASME, API, MSS, DIN others)
Can mate mismatched RTJ with raised-face flanges.
Easy installation, make up and removal.

WSGE Dimensions (ANSI B16.5)

SIZE (NPS)	150#
	GASKET		BOLT SIZE	WASHERS		SLEEVES
	ID ±1.016	OD ±1.016	BOLT SIZE	EFOXY Q'TY	STEEL Q'TY	Q'TY
1/2	12.7	45.7	1/2	8	8	4
3/4	19.1	55.2	1/2	8	8	4
1	25.4	64.8	1/2	8	8	4
1-1/4	31.8	74.3	1/2	8	8	4
1-1/2	38.1	83.8	1/2	8	8	4
2	52.5	101.6	5/8	8	8	4
2-1/2	62.7	120.7	5/8	8	8	4
3	77.9	133.4	5/8	8	8	4
3-1/2	90.1	158.8	5/8	16	16	8
4	102.3	171.5	5/8	16	16	8
5	128.2	193.7	3/4	16	16	8
6	154.1	219.1	3/4	16	16	8
8	202.7	276.2	3/4	16	16	8
10	254.5	336.6	7/8	24	24	12
12	304.8	406.4	7/8	24	24	12
14	336.6	447.7	1	24	24	12
16	387.4	511.2	1	32	32	16
18	438.2	546.1	1-1/8	32	32	16
20	489.0	603.3	1-1/8	40	40	20
24	590.6	714.4	1-1/4	40	40	20

SIZE (NPS)	300#
	GASKET		BOLT SIZE	WASHERS		SLEEVES
	ID ±1.016	OD ±1.016	BOLT SIZE	EFOXY Q'TY	STEEL Q'TY	Q'TY
1/2	12.7	52.1	1/2	8	8	4
3/4	19.1	64.8	5/8	8	8	4
1	25.4	71.1	5/8	8	8	4
1-1/4	31.8	80.7	5/8	8	8	4
1-1/2	38.1	93.4	3/4	8	8	4
2	52.5	108.0	5/8	16	16	8
2-1/2	62.7	127.0	3/4	16	16	8
3	77.9	146.1	3/4	16	16	8
3-1/2	90.1	161.9	3/4	16	16	8
4	102.3	177.8	3/4	16	16	8
5	128.2	212.7	3/4	16	16	8
6	154.1	247.7	3/4	24	24	12
8	202.7	304.8	7/8	24	24	12
10	254.5	358.8	1	32	32	16
12	304.8	419.1	1-1/8	32	32	16
14	336.6	482.6	1-1/8	40	40	20
16	387.4	536.6	1-1/4	40	40	20
18	438.2	593.7	1-1/4	48	48	24
20	489.0	650.9	1-1/4	48	48	24
24	590.6	771.5	1-1/2	48	48	24

SIZE (NPS)	600#
	GASKET		BOLT SIZE	WASHERS		SLEEVES
	ID ±1.016	OD ±1.016	BOLT SIZE	EFOXY Q'TY	STEEL Q'TY	Q'TY
1/2	12.7	52.1	1/2	8	8	4
3/4	19.1	64.8	5/8	8	8	4
1	25.4	71.1	5/8	8	8	4
1-1/4	31.8	80.7	5/8	8	8	4
1-1/2	38.1	93.4	3/4	8	8	4
2	52.5	108.0	5/8	16	16	8
2-1/2	62.7	127.0	3/4	16	16	8
3	77.9	146.1	3/4	16	16	8
3-1/2	90.1	158.8	7/8	16	16	8
4	102.3	190.5	7/8	16	16	8
5	128.2	238.1	1	16	16	8
6	154.1	263.5	1	24	24	12
8	202.7	317.5	1-1/8	24	24	12
10	254.5	396.9	1-1/4	32	32	16
12	304.8	454.0	1-1/4	40	40	20
14	336.6	489.0	1-3/8	40	40	20
16	387.4	562.0	1-1/2	40	40	20
18	438.2	609.6	1-5/8	40	40	20
20	489.0	679.5	1-5/8	48	48	24
24	590.6	787.4	1-7/8	48	48	24

SIZE (NPS)	900#
	GASKET		BOLT SIZE	WASHERS		SLEEVES
	ID ±1.016	OD ±1.016	BOLT SIZE	EFOXY Q'TY	STEEL Q'TY	Q'TY
1/2	12.7	61.6	3/4	8	8	4
3/4	19.1	67.9	3/4	8	8	4
1	25.4	77.5	7/8	8	8	4
1-1/4	31.8	87.0	7/8	8	8	4
1-1/2	38.1	96.5	1	8	8	4
2	52.5	139.7	7/8	16	16	8
2-1/2	62.7	161.9	1	16	16	8
3	77.9	165.1	7/8	16	16	8
4	102.3	203.2	1-1/8	16	16	8
5	128.2	244.5	1-1/4	16	16	8
6	154.1	285.8	1-1/8	24	24	12
8	202.7	355.6	1-3/8	24	24	12
10	254.5	431.8	1-3/8	32	32	16
12	304.8	495.3	1-3/8	40	40	20
14	336.6	517.5	1-1/2	40	40	20
16	387.4	571.5	1-5/8	40	40	20
18	438.2	635.0	1-7/8	40	40	20
20	489.0	695.3	2	40	40	20
24	590.0	835.0	2-1/2	40	40	20

SIZE (NPS)	1500#
	GASKET		BOLT SIZE	WASHERS		SLEEVES
	ID ±1.016	OD ±1.016	BOLT SIZE	EFOXY Q'TY	STEEL Q'TY	Q'TY
1/2	12.7	61.6	3/4	8	8	4
3/4	19.1	67.9	3/4	8	8	4
1	25.4	77.5	7/8	8	8	4
1-1/4	31.8	87.0	7/8	8	8	4
1-1/2	38.1	96.5	1	8	8	4
2	52.5	139.7	7/8	16	16	8
2-1/2	62.7	161.9	1	16	16	8
3	77.9	171.5	1-1/8	16	16	8
4	102.3	206.4	1-1/4	16	16	8
5	128.2	250.8	1-1/2	16	16	8
6	154.1	279.4	1-3/8	24	24	12
8	202.7	349.3	1-5/8	24	24	12
10	254.5	431.8	1-7/8	24	24	12
12	304.8	517.5	2	32	32	16
14	336.6	574.7	2-1/4	32	32	16
16	387.4	638.2	2-1/2	32	32	16
18	438.2	701.7	2-3/4	32	32	16
20	489.0	752.5	3	32	32	16
24	590.6	898.5	3-1/2	32	32	16

SIZE (NPS)	2500#
	GASKET		BOLT SIZE	WASHERS		SLEEVES
	ID ±1.016	OD ±1.016	BOLT SIZE	EFOXY Q'TY	STEEL Q'TY	Q'TY
1/2	12.7	67.9	3/4	8	8	4
3/4	19.1	74.3	3/4	8	8	4
1	25.4	83.8	7/8	8	8	4
1-1/4	31.8	102.9	1	8	8	4
1-1/2	38.1	115.6	1-1/8	8	8	4
2	52.5	142.9	1	16	16	8
2-1/2	62.7	165.1	1-1/8	16	16	8
3	77.9	193.7	1-1/4	16	16	8
4	102.3	231.8	1-1/2	16	16	8
5	128.2	276.2	1-3/4	16	16	8
6	154.1	314.3	2	16	16	8
8	202.7	384.2	2	24	24	12
10	254.5	473.1	2-1/2	24	24	12
12	304.8	546.1	2-3/4	24	24	12
