Safety Relief Valves
YSF-6 - Safety Valve for Steam 10K
Price: 10,826,000 d

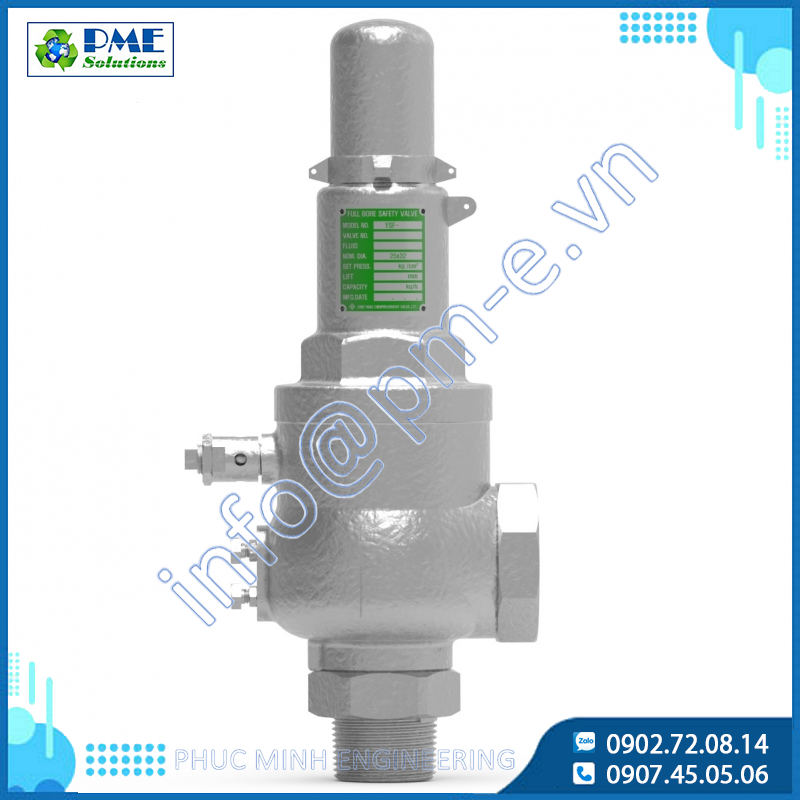

YSF-6 Type Safety Valve (Full Bore-Closed Bonnet Type)
Steam boiler
Pressure Vessel
Features
- Simple structure and outstanding performance.
- Superb performance, followed by strict quality control procedure.
- High impact resistance and good abrasion resistance: The disc and seat are stainless steel welded with satellite.
- Test lever attached: Periodical performance inspections can be conducted.
- Approved by the Korea Occupational Safety and Health Agency (KOSHA).
Specification:
- Type: YSF-6
- Size: 20(3/4“)~50(2")
- Test lever: No
- Applicable fluid: Liquid
- Set pressure range: 0.1~1.0 MPa
- Fluid temperature: 80°C below
- Material:
- Body: GC200
- Disc, Seat: STS304, SCS13
- End connection:
- Inlet: KS PT SCREW (MALE)
- Outlet: KS PT SCREW (FEMALE)
- Hydraulic test pressure: 1.5 times
▶ Install a strainer (40 MESH or more) at the front end when installing the valve.
