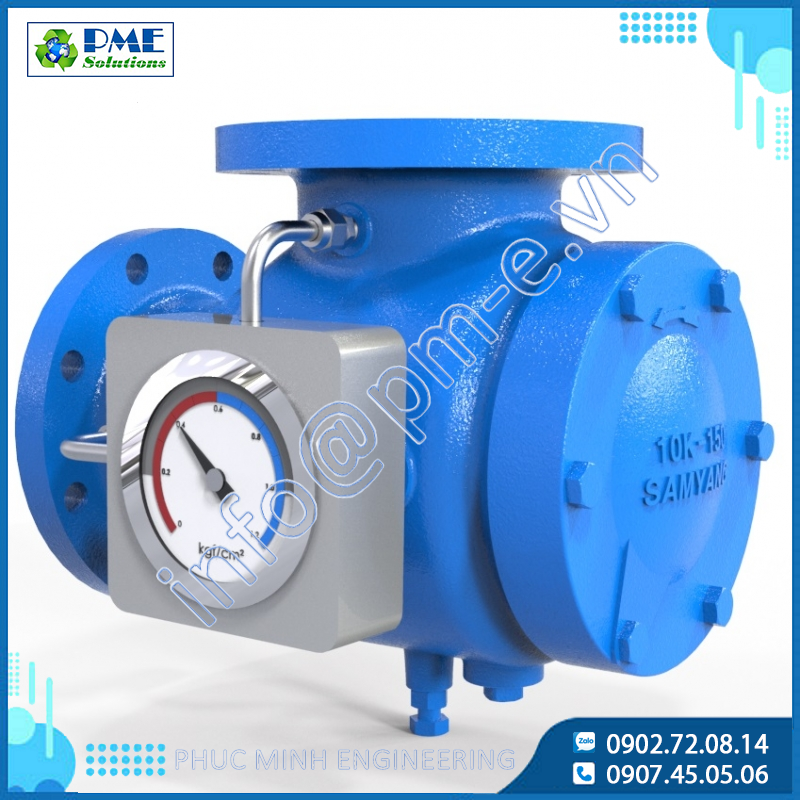

YSD-3S Type - Intelligent Suction Diffuser

Features

• Structure to verify whether internal screen need cleaning.
• Quick-changeable hinge structure enable quick cleaning of the screen.
• Built-in magnet protects the pump & pipeline from damage caused by iron content & welding slags.
• Maximized pump efficiency & little pressure loss by outlet side located vane

Specification:

• Type: YSD-3S
• Applicable fluid: Water, Liquid
• Applicable pressure: Maximum 3.0MPa
• Fluid temperature:  Maximum 120°C
• End connection: KS 30K RF FLANGED
• Materials
  • Body: SCPH2
  • Disc: STS304
  • Gasket: NBR, EPDM
  • Drain Plug: SS400, GC200
• Hydraulic test pressure: 4.5MPa
