Butterfly Valve

FARG Pressure Reducing Valve

Price: 900,000 d

  • Model: 504
  • FARG Italia Pressure Reducing Valve

    • Availability: In stock
    • Delivery time: check with PME staff when ordering.
    • Note: depending on the time of order, price and delivery time may change.
  • Size: DN15
  • FARG Pressure Reducing Valve

    • Brand: FARG
    • Origin: Italy
    • Size: DN15~DN80 (according to European standards) / 1/2" - 3" (according to American standards) / Phi 21mm~90mm (according to Vietnamese standards)
    • Operating temperature: 0~80 degrees C
    • Input operating pressure: Max.25 Bar / PN25
    • Material: Chrome-plated copper body
    • Connection type: Internal thread connection (ISO 228/1 standard)
    • Standard: EN 1567 / ISO 9001:2000
    • Adjustment: Screw, mechanical
    • Additional meter installation: Yes
    • Warranty: 12 months
    • Genuine imported goods
    • Available goods - Fast delivery.

    Reference Price List:

    TT Size Model  Selling Price (excluding VAT)
    1 DN15 Art. 504.1/2  900.000
    2 DN20 Art.504.3/4  1.200.000
    3 DN25 Art.504.1  1.700.000
    4 DN32 Art.504.11/4  2.500.000
    5 DN40 Art.504.11/2  3.100.000
    6 DN50 Art.504.2  4.300.000
    7 DN65 Art.504.21/2  8.200.000
    8 DN80 Art.504.3  12.400.000
    9 Pressure gauge with pressure reducing valve - FARG  360.000
    • Please contact Phuc Minh sales staff to receive the best discount factor and product status.
    • Discount factor depends on each time of your order. Sincerely thank you.



    Detailed product description / Technical specifications of FARG pressure reducing valve:

    FARG Pressure Reducing Valve Phuc Minh is a genuine, reputable supplier, ensuring quality and competitive prices for products imported in their entirety from Italy. Let's find out with us which pressure reducing valve is popular today:

    What is FARG?

    FARG stands for "Flow Adjustment and Regulation Valve", this is an important device in the supply system of water, gas, oil, and many other liquids. The smart design of the FARG pressure reducing valve allows it to adjust the flow and pressure in pipes and systems to ensure optimal performance.

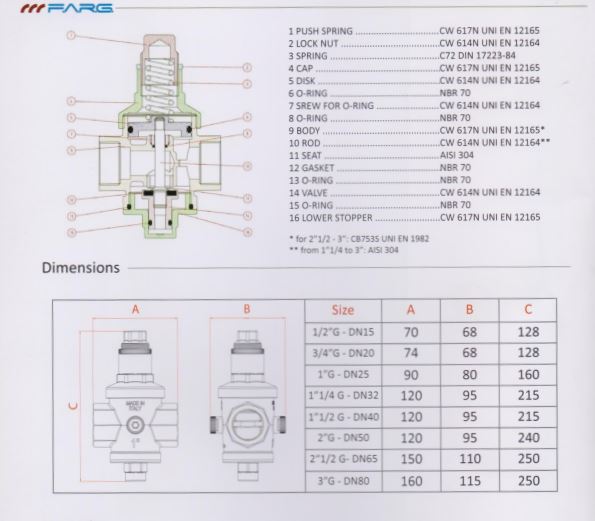

    FARG Pressure Reducing Valve Structure.

    • Valve body: made of copper material, the outside is plated with chrome to protect the valve to the maximum extent from damage when exposed to the outside environment.
    • Spring: made of stainless steel, with high elasticity, is the main detail to adjust the output pressure for the valve.
    • Valve disc: The company usually applies a valve disc made of copper-plated stainless steel. It is directly connected to the bottom of the spring to adjust the output pressure. Because being made from stainless steel will help the valve have better corrosion resistance and higher durability.
    • Valve membrane: made of EPDM rubber material. Its task is to seal the valve to ensure that the valve does not leak.
    • Adjusting locking screw: Is a locking screw used to adjust the pressure for the flow by pressing the spring down to increase pressure or loosening the spring to reduce pressure.
    • Fixing screw: Has the task of tightening and fixing the shaft and adjusting screw after adjusting the pressure according to the system's requirements. Avoid moving or self-adjusting, causing pressure changes during operation.
    • Cover: Helps protect the locking screw, valve shaft and installation parts in the valve. Can be removed for inspection or replacement of internal valve parts.

    Operating principle.

    As the flow of liquid or gas passes through the FARG pressure reducing valve, the sensor system records relevant parameters such as current pressure and flow. The control system then compares these parameters with preset values ​​to ensure that the pressure and flow are maintained at the safest and most efficient levels.
    If the pressure or flow increases beyond the allowable level, the system will adjust the valve to reduce the flow and pressure back to the desired level. Conversely, if the pressure and flow are too low, the valve will expand to allow more liquid or gas to pass through and increase the pressure to the desired level.



    Benefits of using FARG pressure reducing valves.

    Optimizing Performance.

    • FARG pressure reducing valves allow for optimizing system performance by maintaining pressure and flow at optimal levels. This helps to minimize waste and increase production efficiency.

    More Safety.

    • Using FARG pressure reducing valves ensures system safety by preventing excessive pressure and flow, helping to avoid accidents and fires.

    Energy Saving.

    • By regulating pressure and flow in the most efficient way, FARG pressure reducing valves help to save energy and reduce system operating costs.



    Application.

    • The Farg pressure reducing valve application is an effective solution for regulating pressure in water, gas, hot and cold steam systems.
    • The Farg pressure reducing valve has a simple design, is easy to install and maintain, has high durability and can withstand harsh conditions.
    • The Farg pressure reducing valve can help save energy, reduce wear and tear on other equipment in the system and increase safety for users.



    Notes on installing the farg pressure reducing valve.

    System Check Before Installation.

    • Before proceeding with the valve installation, it is important to perform a system check.
    • Open all valves at the back to ensure smooth flow and no obstructions.
    • The goal is to ensure the system is ready for installation, avoid unwanted pressure conditions, and ensure efficient valve operation.

    Correct Installation Order.

    • Next, install the valves in a specific order from upstream to downstream locations.
    • This order helps optimize valve operation and facilitates future maintenance and servicing.

    Correct Installation Direction.

    • Make sure you install the valve in the direction of the embossed arrow on the valve.
    • Depending on the system status, it can be installed vertically, horizontally, or vertically, but avoid installing upside down to ensure correct operation.

    Adjust the Outlet Pressure.

    • Use a pressure gauge to adjust the outlet pressure accurately.
    • This ensures that the pressure reducing valve operates properly and meets the required pressure.

    Inlet Pressure Higher than Set Pressure.

    • Always ensure that the inlet pressure is higher than the set pressure on the valve.
    • This ensures that the valve operates properly and avoids the risk of damage.

    Check and Adjust.

    • After installation is complete, open the faucet valve to supply water to the valve.
    • Check the pressure displayed on the gauge and adjust the knob to achieve the required pressure.

    Use Water Hammer Valves and Anti-Shock Valves.

    • Consider installing water hammer valves and anti-shock valves to protect the pressure reducing valve from sudden impacts from water flow or collision.
    • This ensures the valve performs best in all situations and increases the durability of the system.





    Where to buy cheap FARG pressure reducing valve?

    Phuc Minh Engineering is a company specializing in direct import and distribution of cheap Pressure Reducing Valves, including FARG Pressure Reducing Valves from Italy. Applied in most civil or industrial systems, water supply and drainage systems in high-rise buildings, apartments, liquid and gas systems...

    Buying Farg Pressure Reducing Valves at Phuc Minh Engineering, you are guaranteed the following:

    • Genuine imports on modern production lines in Italy.
    • The company is available in stock, delivering anytime, anywhere.
    • Full CO, CQ, Warranty Certificates.
    • Consulting on installation and choosing to help customers buy the right valve according to each need and purpose of use.
    • Delivery nationwide via the most prestigious express delivery service - Viettel.
    • Free delivery within a radius of 15km around Ho Chi Minh City, depending on the total value of each order. Contact PME for answers.
