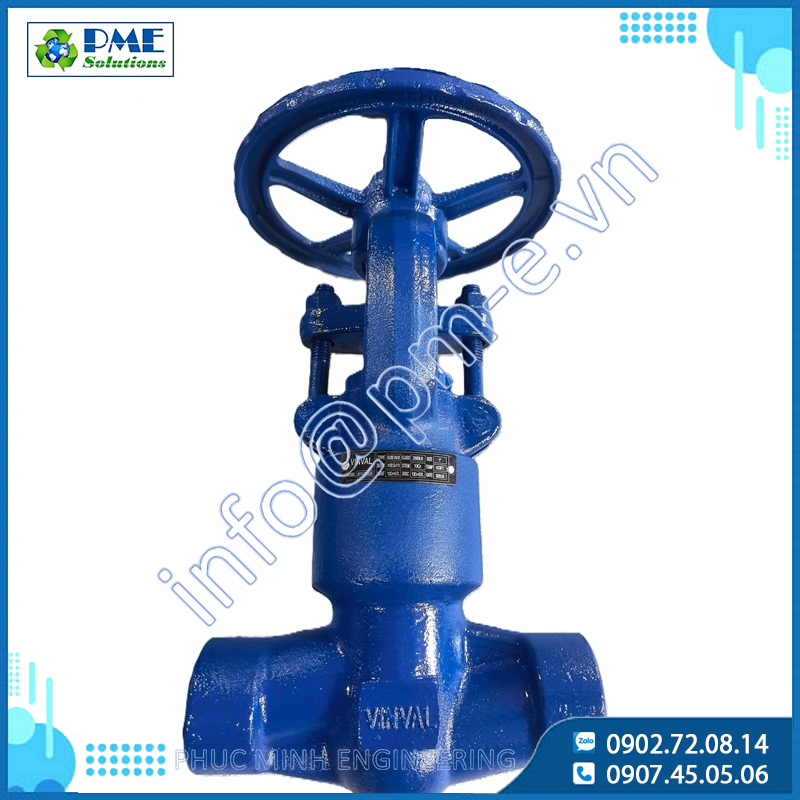

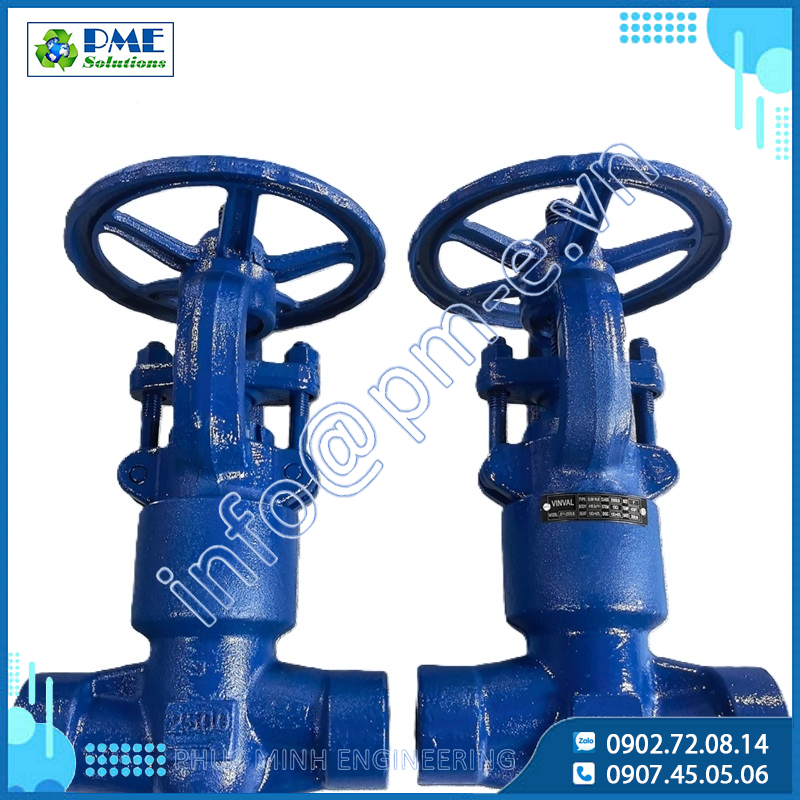

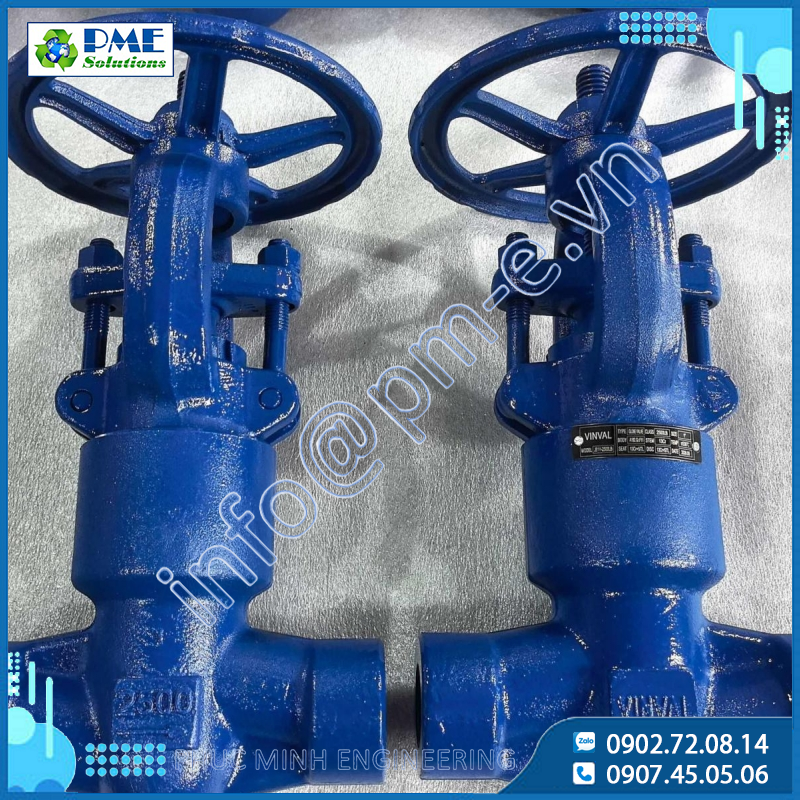

VINVAL J61Y-2500LB Forged Alloy Steel Globe Valve DN25 (1") | Class 2500#, Butt Weld (BW)

Product Overview

The VINVAL J61Y-2500LB Globe Valve is a high-pressure forged alloy steel globe valve designed for severe service applications involving high temperature and high-pressure conditions. Manufactured from ASTM A182 Gr. F11 alloy steel, this valve provides exceptional strength, thermal stability, and long-term reliability in demanding industrial environments.

Featuring a Class 2500 pressure rating and Butt Weld (BW) connections, the valve is ideal for critical steam, power generation, petrochemical, refinery, and industrial process systems where safety, durability, and leak-tight performance are essential.

The valve is equipped with a premium 13Cr + Full Stellite Trim, ensuring outstanding resistance to wear, erosion, and high-temperature service.

Technical Specifications

• Brand: VINVAL

• Model: J61Y-2500LB

• Valve Type: Globe Valve

• Size: DN25 (1")

• Pressure Rating: Class 2500#

• Connection Type: Butt Weld (BW)

• Operation: Handwheel

• Operating Temperature: -29°C to 538°C

• Body Material: ASTM A182 Gr. F11 Alloy Steel

• Suitable Media: Steam, thermal oil, gas, condensate, and industrial process fluids

Trim Materials

• Disc: 13Cr + Full Stellite Overlay

• Seat: 13Cr + Full Stellite Overlay

• Stem: 13Cr Stainless Steel

Key Features

Forged ASTM A182 Gr. F11 Alloy Steel Construction

The forged alloy steel body offers superior mechanical strength and excellent resistance to high-temperature creep, making it ideal for power plants and high-pressure process systems.

Class 2500 High-Pressure Design

Engineered for extreme pressure applications, the valve delivers reliable performance in critical service conditions where operational safety is paramount.

Full Stellite Hard-Faced Trim

The disc and seat are hard-faced with Stellite alloy to provide exceptional resistance against wear, erosion, and thermal fatigue, significantly extending service life.

Precise Flow Control

The globe valve design allows accurate throttling and flow regulation, helping maintain process efficiency and system stability.

Butt Weld Connection for Maximum Integrity

The BW end connection provides a permanent, leak-tight joint capable of withstanding high temperatures, vibration, and pressure fluctuations.

Reliable Long-Term Performance

Premium materials and precision manufacturing ensure dependable operation with reduced maintenance requirements throughout the valve's service life.

Advantages of VINVAL J61Y-2500LB Globe Valve

• Suitable for Class 2500 high-pressure systems

• Excellent performance at temperatures up to 538°C

• Superior resistance to wear and erosion

• Reliable shut-off and sealing performance

• Ideal for severe service applications

• Long service life and low maintenance costs

• Complies with demanding industrial requirements

Applications

The VINVAL J61Y-2500LB Globe Valve is widely used in:

• High-pressure steam pipelines

• Thermal and combined-cycle power plants

• Petrochemical and refinery facilities

• Oil & gas processing plants

• Chemical industries

• Boiler and superheater systems

• Industrial energy systems

• High-temperature process applications

Why Choose VINVAL Valves from PM-E?

• Genuine VINVAL products

• Complete CO, CQ, and technical documentation

• Professional engineering support

• Competitive pricing for projects and industrial users

• Fast delivery throughout Vietnam

• Full catalog, datasheet, and technical drawing support

Ordering Information

Product Name: VINVAL J61Y-2500LB Forged Alloy Steel Globe Valve

Size: DN25 (1")

Pressure Rating: Class 2500#

Connection Type: Butt Weld (BW)

Body Material: ASTM A182 Gr. F11 Alloy Steel

Trim Material: 13Cr + Full Stellite

Operation: Handwheel

Contact PM-E today for quotations, catalogs, technical datasheets, and engineering support for the VINVAL J61Y-2500LB Globe Valve.
