Type 180/180-S

Broady Relief valve

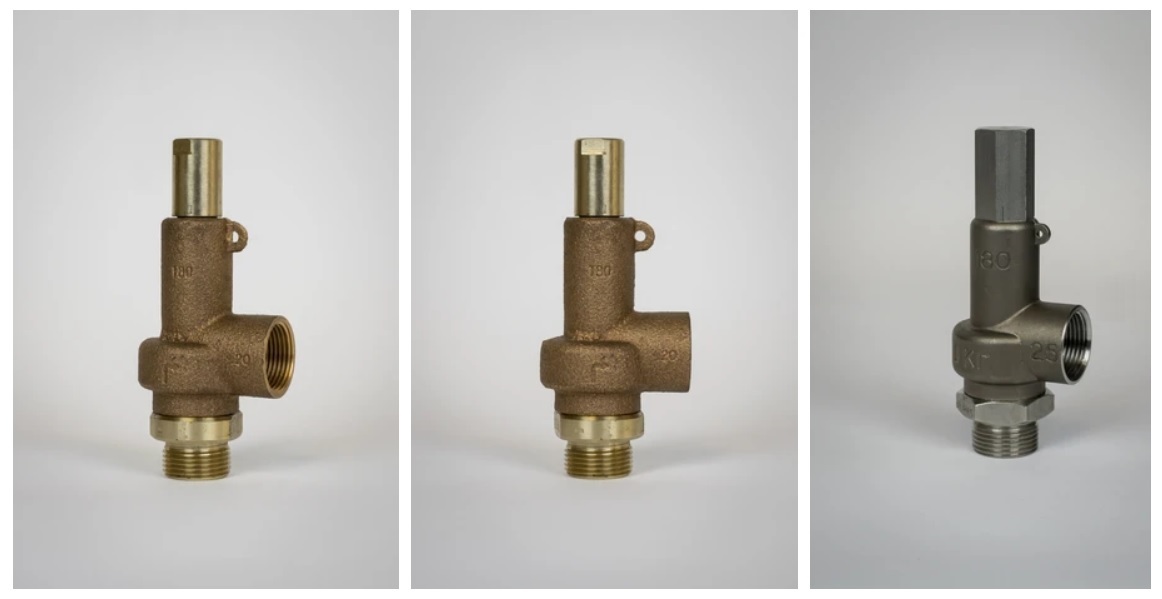

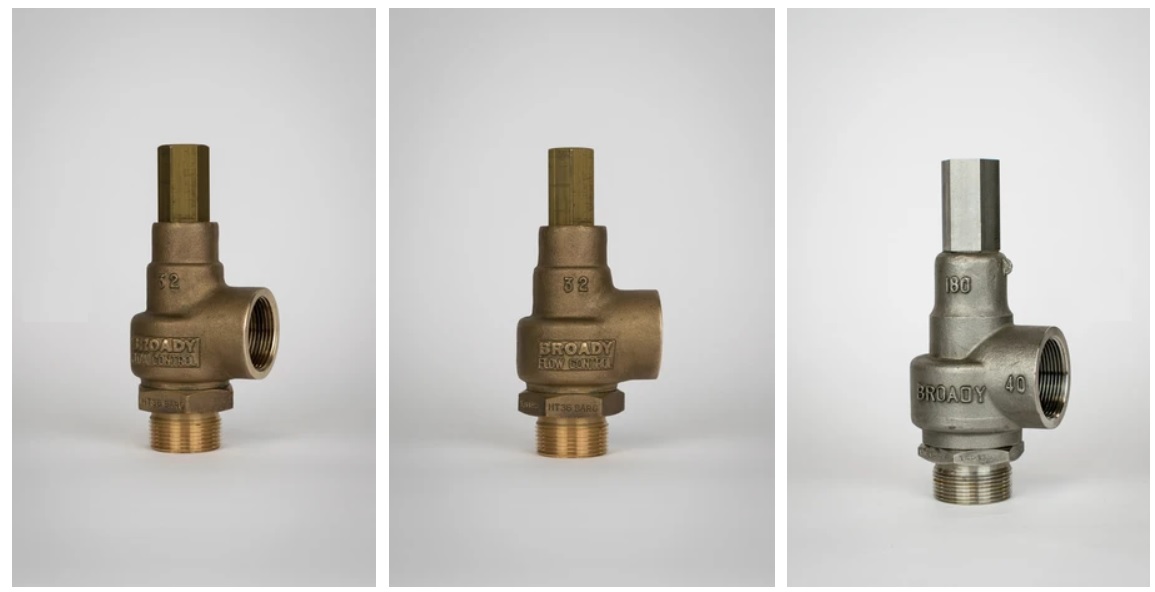

The Type 180/180-S Pressure Relief Valves are suitable for use on compressed air, gases, water, oil and steam.

​

The Type 180 valve is available in sizes from ½” to 3” in Bronze while the Type 180-S valve is available in sizes from ½” to 2” in Stainless Steel, both have screwed BSP ends male inlet x female outlet, although other end connections are available on request.

​

Both relief valves are available with the option of metal to metal precision lapped seats or Viton soft seats.

Below is a brief summary of our Type 180/180-S Pressure Relief Valve.

​

Sizes

1/2" to 3" (Bronze)

1/2" to 2" (Stainless Steel)

​

Screwed Connections

NPT or BSP

(Male x Female or Female x Female)

​

Material

Bronze or Stainless Steel

​

Set Pressure

0.35 Barg to 24 Barg (15NB up to 50NB)

0.35 Barg to 13.79 Barg (65NB to 80NB)

​

Medium

Gas, compressed air, water, oil and steam applications

​

​

Further information for this valve can be found in the Type 180/180-S Pressure Relief Valve technical datasheet.

Technical datasheets for all of our other valves can be found on the Technical  section of our website.

​

If further assistance is required please contact our sales team on +842835352125 - 0902720814 - 0907450506 - 0902800728 - 0766226161 or email info@pm-e.vn
