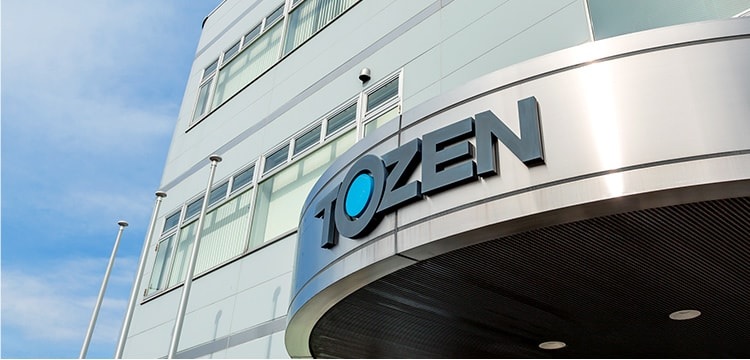

    List of Group locations

    JAPAN

    【TOZEN Corporation】

    THAILAND

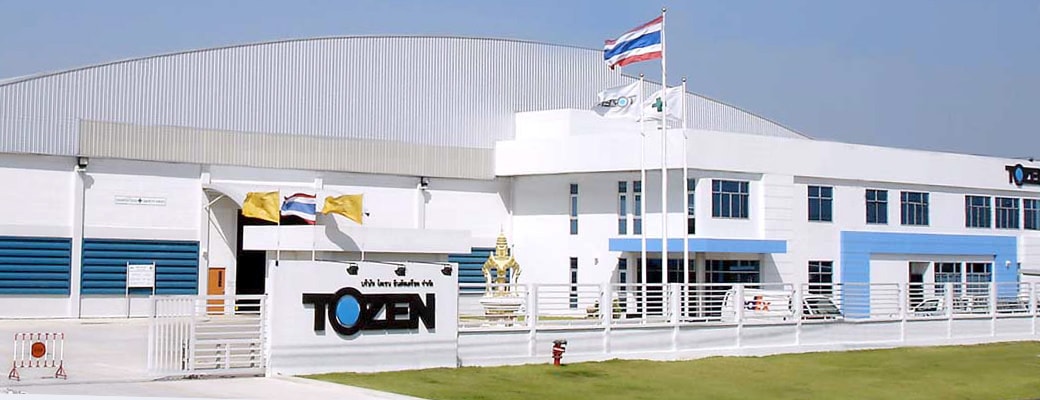

    • TOZEN INDUSTRIAL CO., LTD.
      3388/62, 18th Flr. Sirinrat Building, Rama 4 Road, Klongton, Klongtoey, Bangkok 10110, Thailand
      TEL: +66-2-029-0100 FAX: +66-2-029-0111

    MALAYSIA

    • TOZEN (M) SDN. BHD.
      Lot 26, Jalan BRP 9/1B, Putra Industrial Park, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor Darul Ehsan, Malaysia
      TEL: +60-3-6156-3636 FAX: +60-3-6156-3232



    • RITE DIMENSION SDN. BHD.
      No.3, Leboh Raya Kuala Kangsar Off Jalan Kuala Kangsar 30010 Ipoh, Perak, Malaysia
      TEL: +60-5-506-4791 FAX: +60-5-506-2693

    HONG KONG

    • TOZEN (H.K.) LTD.
      Unit 1607, 16/F. Ho Lik Centre, 66A Sha Tsui Road, Tsuen Wan, N.T., Hong Kong
      TEL: +852-2413-2330 FAX: +852-2413-1697

    THE PHILIPPINES

    • TOZEN PHILIPPINES, INC.
      Rey Marketing Compound, #15 C. Raymundo, Rosario, Pasig City 1609 Philippines
      TEL: +63-2721-54848, 63301, 64866 FAX: +63-2625-2238

    CHINA

    • SHANGHAI TOZEN MECHANICAL ENGINEERING PRODUCTS CO., LTD.
      No.598 Tongle Road, Industry Zone, Dongjing Town, Songjiang County, Shanghai 201619, China
      TEL: +86-21-5767-2180

    • SHANGHAI TOZEN RUBBER INDUSTRIAL CO., LTD.
      No.598 Tongle Road, Industry Zone, Dongjing Town, Songjiang County, Shanghai 201619, China
      TEL: +86-21-5767-4048~4049 FAX: +86-21-5767-2913

    INDONESIA

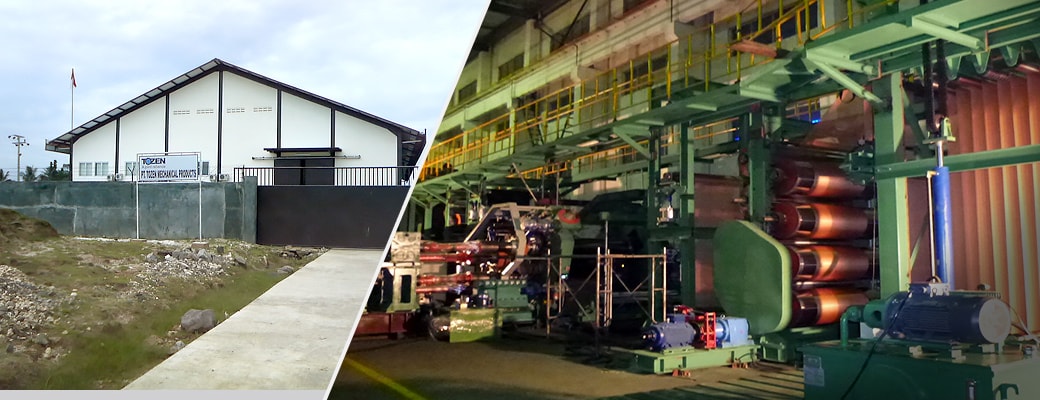

    • PT. TOZEN MECHANICAL PRODUCTS
      Jalan Raya Cikande Rangkasbitung KM4.5, Junti, Jawilan, Serang-BANTEN 42177, Indonesia
      TEL: +62-254-8488354 FAX: +62-254-8488415

    • PT. TOZEN MECHANICAL PRODUCTS MARKETING OFFICE
      Rukan Shibuya Blok D-12 PIK2, Teluk Naga, Tangerang, Banten 15510, Indonesia
      TEL: +62-21-39730986

    • PT. TOZEN ENGINEERING SOLUTIONS
      Rukan Shibuya Blok D-12 PIK2, Teluk Naga, Tangerang, Banten 15510, Indonesia
      TEL: +62-21-39730986

    VIETNAM

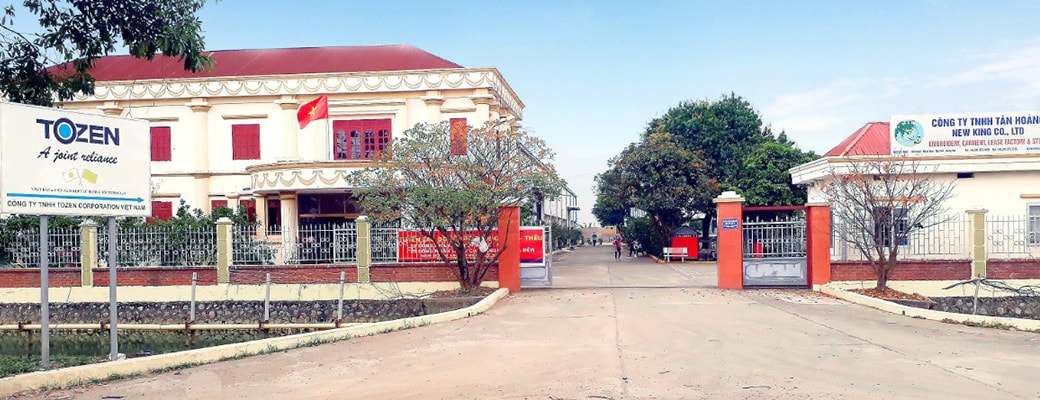

    • TOZEN CORPORATION VIETNAM CO., LTD.
      Nguyen Thien Thuat street, Nhan Hoa Ward, My Hao Town, Hung Yen Province, Vietnam

    • HOCHIMINH OFFICE
      C18, Road Number 19, Tran Nao Street, Binh An Ward, District 2, Hochiminh City, Vietnam

    ALL GLOBAL MARKETS

    • TOZEN INTERNATIONAL PTE. LTD.
      1 Pemimpin Drive #09-10 One Pemimpin Singapore 576151
      TEL: +65-63370157, 65702176, 65702183 FAX: +65-6338-1310



    ----------- TOZEN Product Information --------



    Products

                                             Seismic Isolation Systems

    Rubber Flexible Expansion Joint - Fluoro Carbon Polymer Flexible Joint

                                                                Valves

    Seismic Isolation Systems

    Related equipment

    Metal Flexible Joint


    The TOZEN Group’s business takes a global perspective.

    Our wide range of products and systems for piping,vibration isolation,
    and seismic isolation provides protection from plants to civil engineering,
    such as installed equipment and fresh water and sewage equipment in office buildings.



                                                                                                        Rubber Flexible Expansion Joint - Fluoro Carbon Polymer Flexible Joint

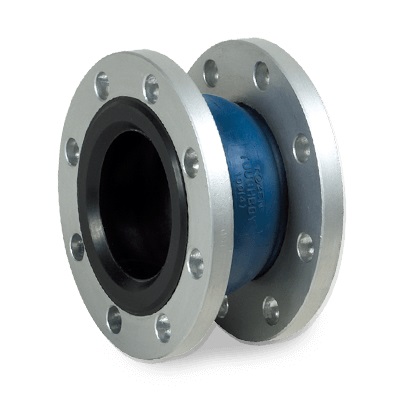

    TOUGHBOY

    Uses rubber conforming with the JWWA standard

    Can be used for fresh water and drinking water supply

    Excellent durability

    (Clears 400,000 times pressure fluctuation testing)

    Can be used with booster and pressure pumps

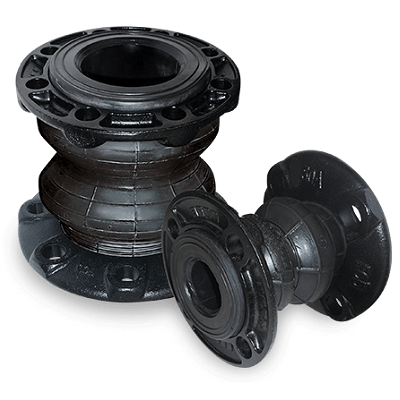

    PT CONNECTOR

    2-bellows type delivers both excellent vibration-isolating and displacement

    absorption performance

    Products where the flange specifications can be changed

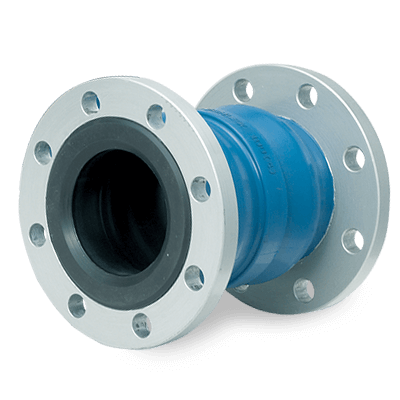

    TOUGHLEX

    Excellent durability against repeated displacement and pressure fluctuation

    (Clears 200,000 times pressure fluctuation testing)

    Low rebound type

    Can be used with pressure pumps

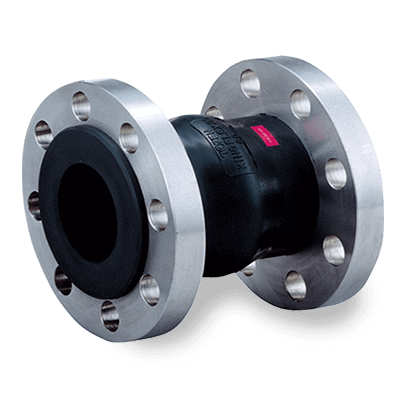

    KINGFLEX 20

    Products that can maintain high pressure resistance

    Can reduce loads on piping and equipment

    Low rebound type

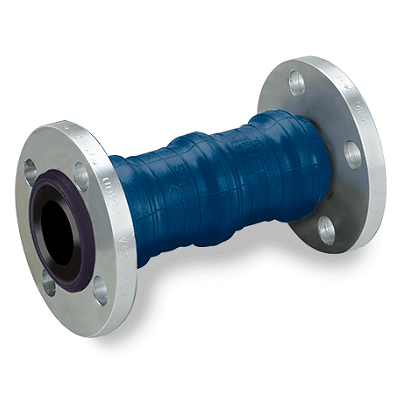

    PURE JOINT

    Uses rubber conforming with the standards in the Waterworks Act

    Can be used for fresh water and drinking water supply

    Enables large displacement absorption between short surfaces

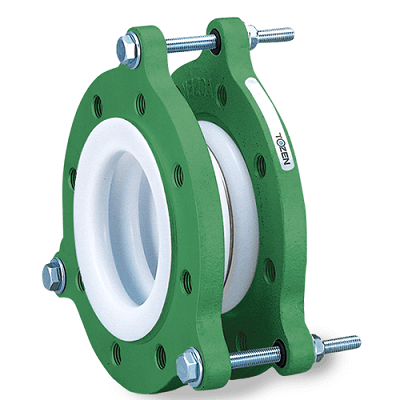

    FLONEXα

    Fluorocarbon polymer products with excellent chemical and heat resistance

    Compact design with short face-to-face dimensions

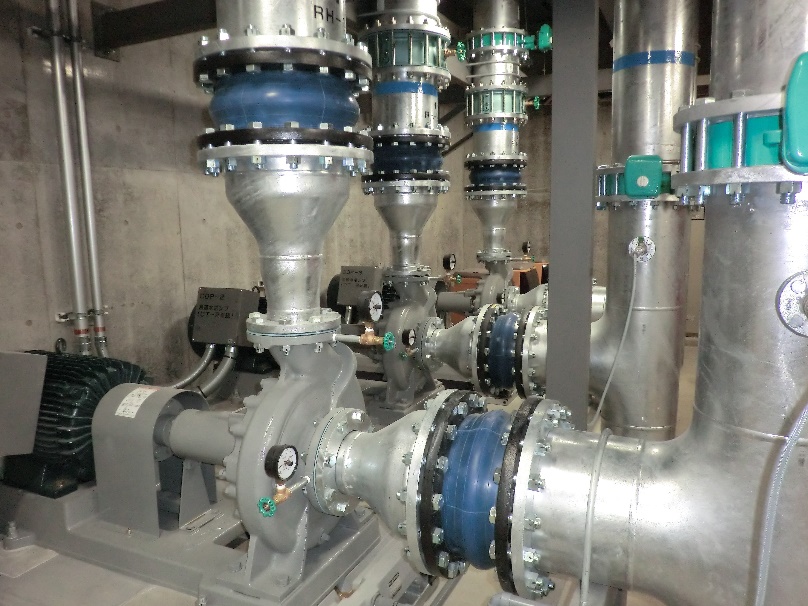

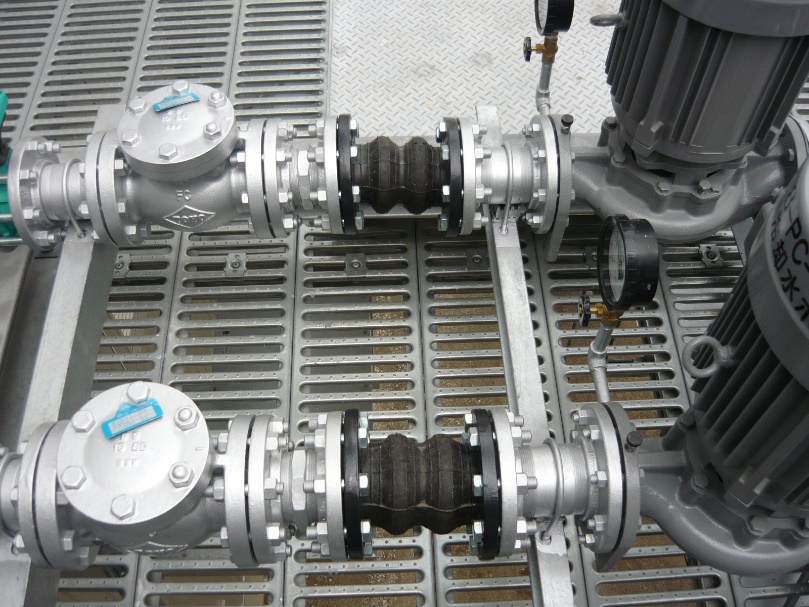

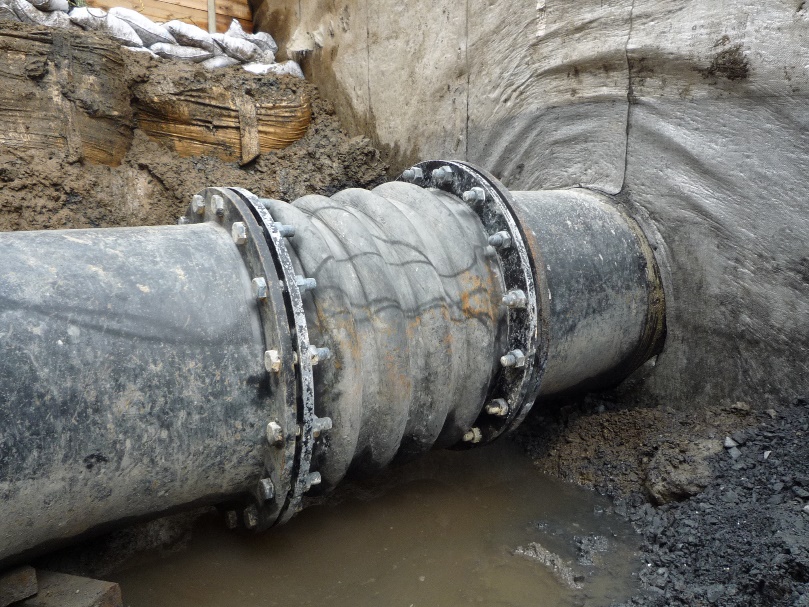

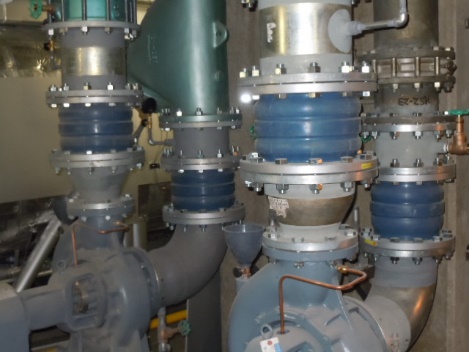

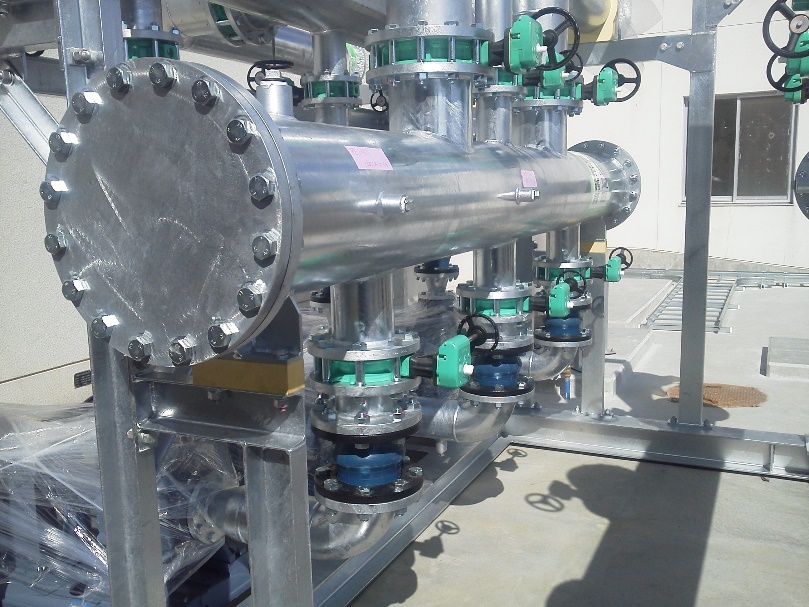

                                                                                  ------------------------------ Installation photo ------------------------------

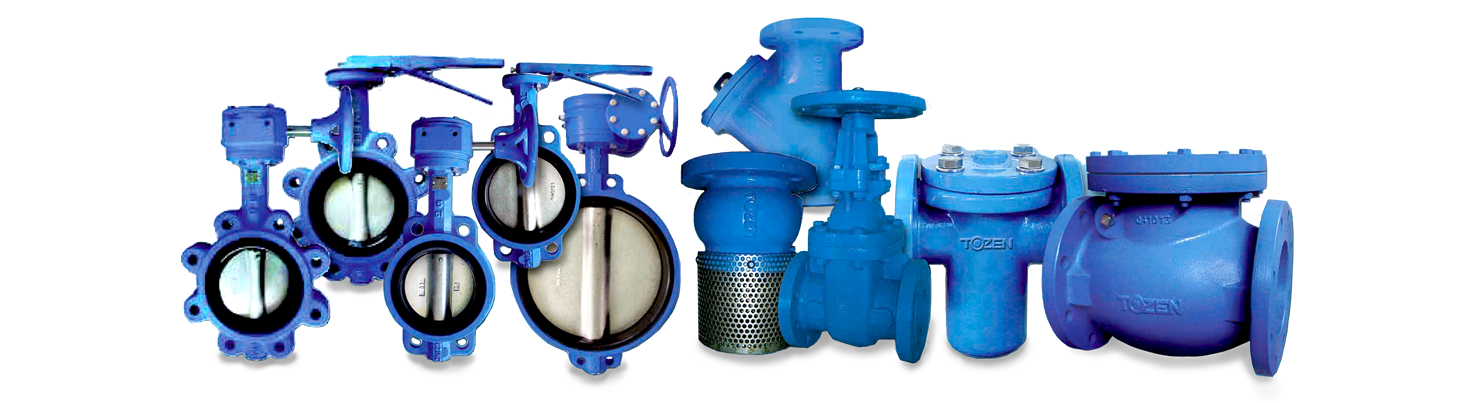

       Valves

    TOZEN Group handles various types of Valves.
    Each country has different standard, so for details,
    please contact us from the list who handles this product.

    ※These products are not available in Japan.

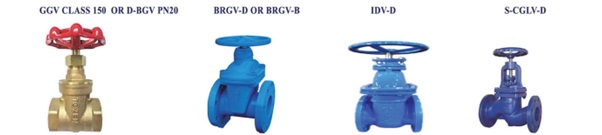

    1. TOZEN Gate valve/ Globe valve (Bronze gate valve, Rising stem gate valve, Non-Rising stem gate valve, Globe valve)

    • BRONZE GATE VALVE (MODEL GGV) MSS SP-80
      • SCREWED-IN BONNET SOLID WEDGE DISC
      • NON-RISING STEM INTEGRAL SEAT
      • ASBESTOS FREE
      • THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT.
    • DZR BRASS GATE VALVE (MODEL D-BGV PN20)
      • BS 5154, EN 12288
      • SCREWED-IN BONNET SOLID WEDGE DISC
      • NON-RISING STEM INTEGRAL SEAT
      • ASBESTOS FREE
      • THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT.
    • DUCTILE IRON RESILIENT SEAT GATE VALVE (MODEL DRGV-D )
      • NON-RISING STEM, INSIDE SCREWDIN 3352 F4 DESIGN,
      • FLANGED TO DIN 2532/2533 PN10/16.
    • IRON GATE VALVE (MODEL: IGV-D )
      • NON-RISING STEM, INSIDE SCREWDIN 3352 DESIGN,
      • FLANGED TO DIN 2532/2533 PN10/16
      • FACE-TO-FACE DIMENSION CONFORMS TO DIN3202 F4 SERIES.
    • DUCTILE IRON RESILIENT SEAT GATE VALVE (TYPE A) (MODEL: DRGV-B)
      • NON-RISING STEM, INSIDE SCREW BS 5163 – TYPE A DESIGN,
      • FLANGED TO BS 4504 PN16.
    • CAST IRON GLOBE VALVE (MODEL S-CGLV-D)

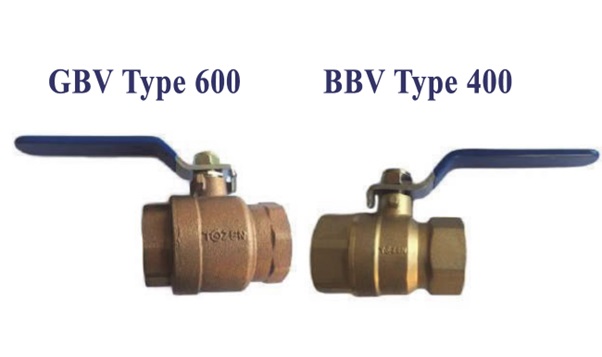

    2. TOZEN Ball Valve

    • BRONZEN BALL VALVE (MODEL GBV) TYPE 600.

      • MSS SP-110 SCREWED BODY CAP FULL BORE
      • BLOW-OUT PROOF STEM PTFE SEAT
      • THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT
    • BRASS BALL VALVE (MODEL BBV ) TYPE 400.
      • MSS SP-110SCREWED BODY CAP FULL BORE
      • BLOW-OUT PROOF STEM PTFE SEAT
      • THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT

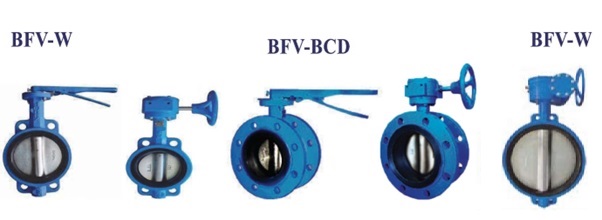

    3. TOZEN Butterfly Valve

    • WAFER TYPE BUTTERFLY VALVE (MODEL: BFV-W )
      • SUITABLE TO MULTI STANDARD
      • FACE-TO-FACE DIMENSION TO BS 5155 / BS EN 593
      • LEVER / WORM GEAR OPERATOR.
      • SIZE DN40 TO DN350.
      • W.P: PN16.
      • MATERIAL: CAST IRON DN40 TO DN150 & DUCTILE IRON (DN200 TO DN600)
    • WAFER TYPE BUTTERFLY VALVE WORM GEAR OPERATOR(MODEL: BFV-W)
      • FOR BS 4504 PN10 / PN16 FLANGE MOUNTING
      • FACE-TO-FACE DIMENSION TO BS 5155 / BS EN 593
      • DOUBLE-STAGE WORM GEAR OPERATOR
    • DOUBLE FLANGE BUTTERFLY VALVE (CONCENTRIC TYPE) (Model: BFV-DCB )

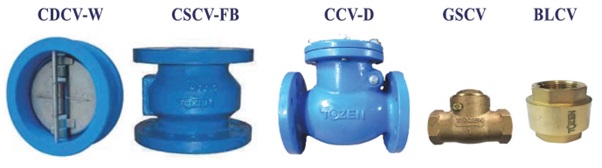

    4. TOZEN Check Valves

    • BRONZE SWING CHECK VALVE (MODEL: GSCV )
      • MSS SP-80SCREWED CAP
      • SWING TYPE DISC INTEGRAL SEAT
      • THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT.
    • BRASS LIFT CHECK VALVE (MODEL: BLCV )
      • VERTICAL LIFT IN-LINE TYPE
      • METAL DISC RUBBER SEAT
      • THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT
    • WAFER TYPE DUAL DOOR CHECK VALVE (MODEL: CDCV-W)
      • SUITABLE PN10/PN16, JIS10K & ANSI150 FLANGE MOUNTING
      • FACE-TO-FACE DIMENSION TO EN 558-1 SR. 16
    • SILENT CHECK VALVE (MODEL: CSCV-FB)

    • SWING CHECK VALVE (MODEL: CCV-D )

      • BRASS SEAT FLANGED TO EN1092-2 PN16
      • FACE-TO-FACE DIMENSION CONFORMS TO DIN3202-F6

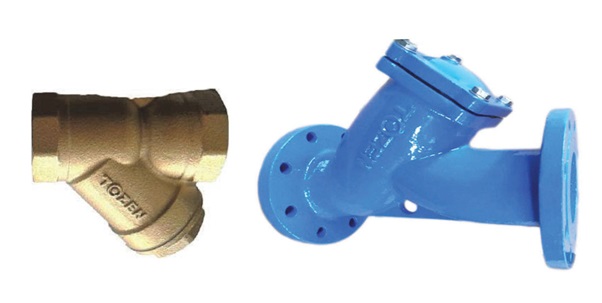

    5. TOZEN Strainers

    • CAST IRON Y TYPE STRAINER (MODEL: CYS-B )

      • BOLTED COVER WITH BLOW-OFF DRAIN PLUG
      • STAINLESS STEEL PERFORATED SCREEN
      • FACE TO FACE DIMENSION CONFORMS TO BS EN 558-1 SR.1
      • FLANGED END DRILLED TO BS EN1092-2 PN16
    • BRONZE Y TYPE STRAINER (MODEL: GYS-L )
      • Y-PATTERN BODY SCREWED CAP
      • STAINLESS STEEL SCREEN
      • ASBESTOS FREE
      • THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT

    6. TOZEN Foot valves

    • FOOT VALVE (MODEL CFV-B PN16, DFV-B25 PN25)

      • W.P: PN16 OR PN25.

    7. TOZEN Air Vent Valves

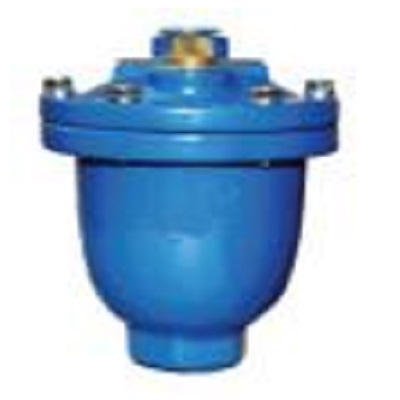

    • AUTOMATIC AIR VENT (MODEL: CAAV-B PN16, DAAV-B25 PN25)
      • THREADED TO BS 21 (ISO 7) / ASME B1.20.1

    8. TOZEN Float Valve.

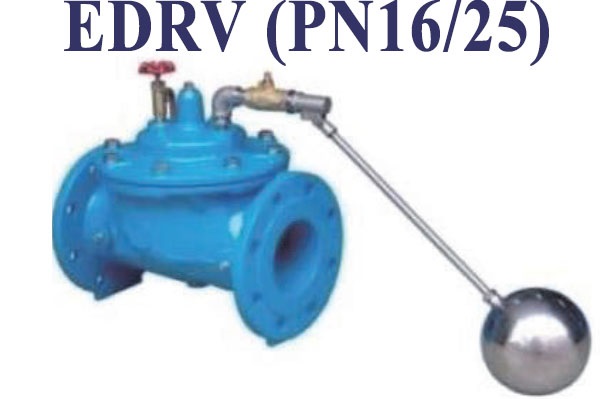

    • REMOTE CONTROL FLOAT VALVE (Model: EDRV)
      • FLANGED TO GB/T17241 PN16 / PN25

    9. TOZEN Reducing Valve

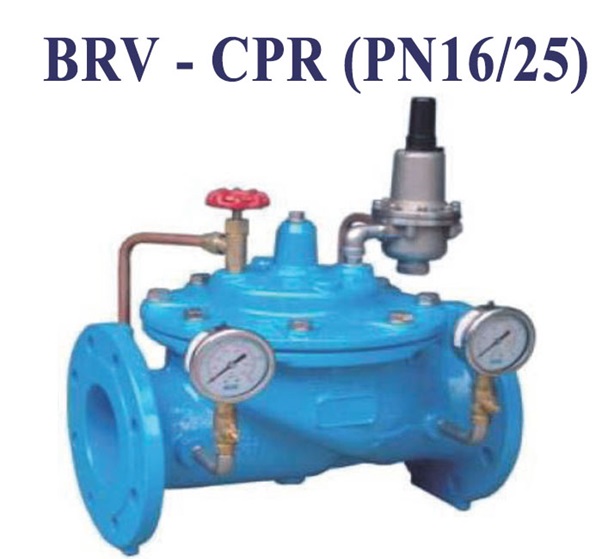

    • PRESSURE REDUCING VALVE (Model: PRV-CPR )
      • FLANGED TO GB/T17241 PN16 / PN25
    • PRESSURE DECOMPRESSION VALVE (Model: SV-CPS )
      • FLANGED TO GB/T17241 PN16 / PN25

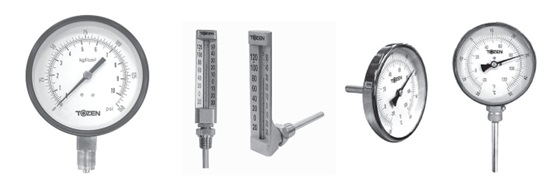

    10. TOZEN JAPAN Pressure Gauge & Temperature Gauge

    • GENERAL PRESSURE GAUGE – GP SERIES.

    • TOZEN GP SERIES PRESSURE GAUGE is designed and used for pressure measurement for various industries.

    • This durable gauge is ideal for services on water, air, oil and other pressure media not corrosive to brass.



    Vibration Isolation Products

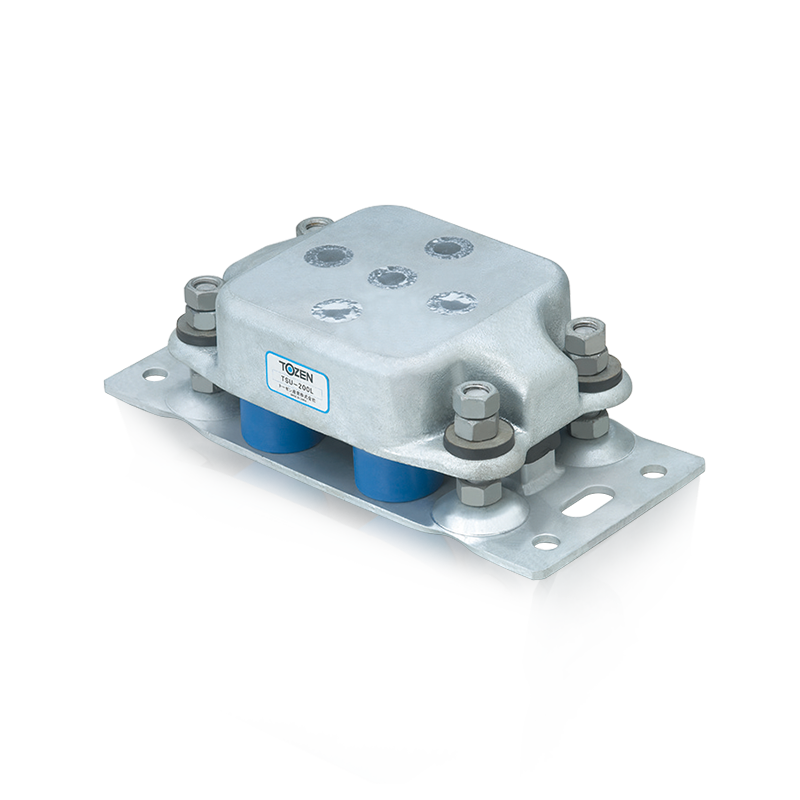

    Multi vibration-isolating unit
    TSU series

    High vibration-isolating performance. Vibration-isolating performance

    (approx. 4Hz-6Hz)

    Ease of installation is another great feature: isolate all vibrations simply by

    mounting devices to a common frame

    The 2.0G of horizontal resistance (1.0G of vertical resistance) provided by

    vibration-isolating material alone provides excellent earthquake resistance

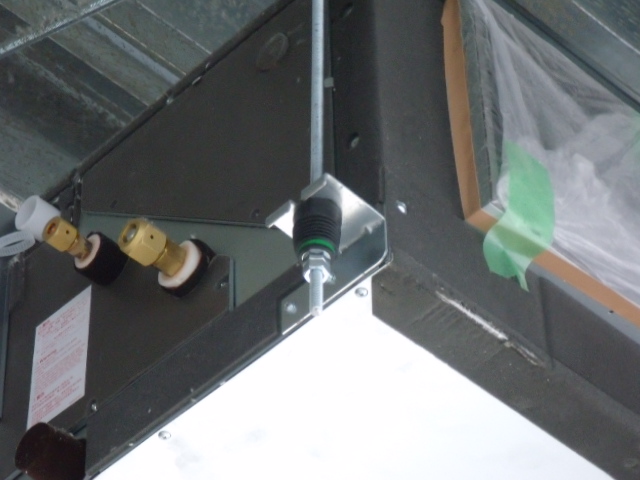

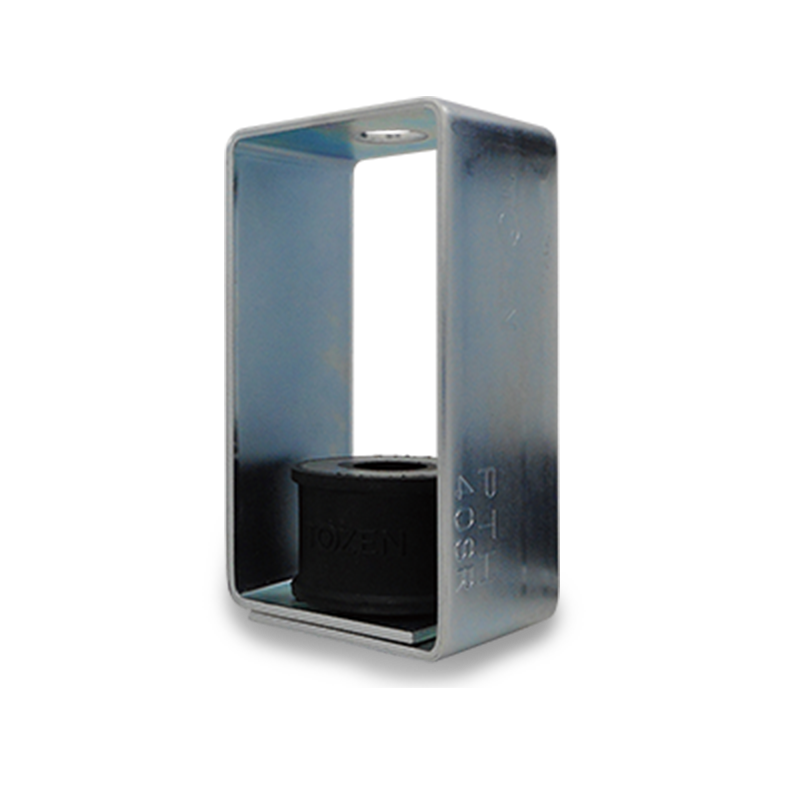

    Suspended rubber vibration isolator
    PTH series

    Applicable for vibration isolating for piping, ducts, and suspended

    equipment

    A wide product lineup for a variety of applications

    Complies with the RoHS directive and also meets outdoor specifications

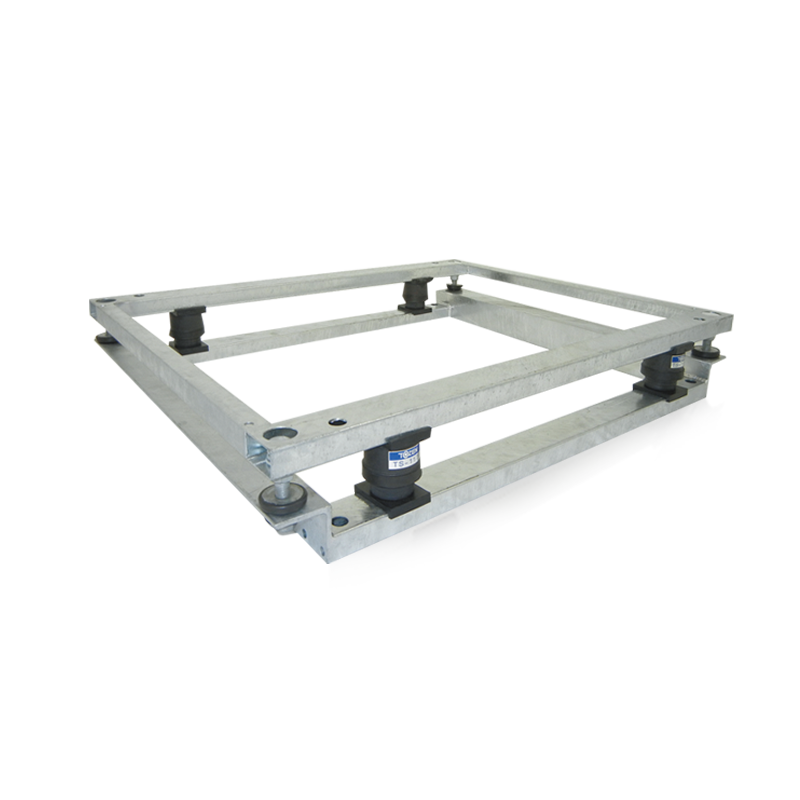

    Spring vibration-isolating frame

    Uses the TS Series to deliver higher vibration absorption (approx. 1.8Hz-5Hz)

    No significant level adjustment is required as it is already positioned at the

    device’s center of gravity

    Compatible with devices from all manufacturers, and customized design is

    also possible

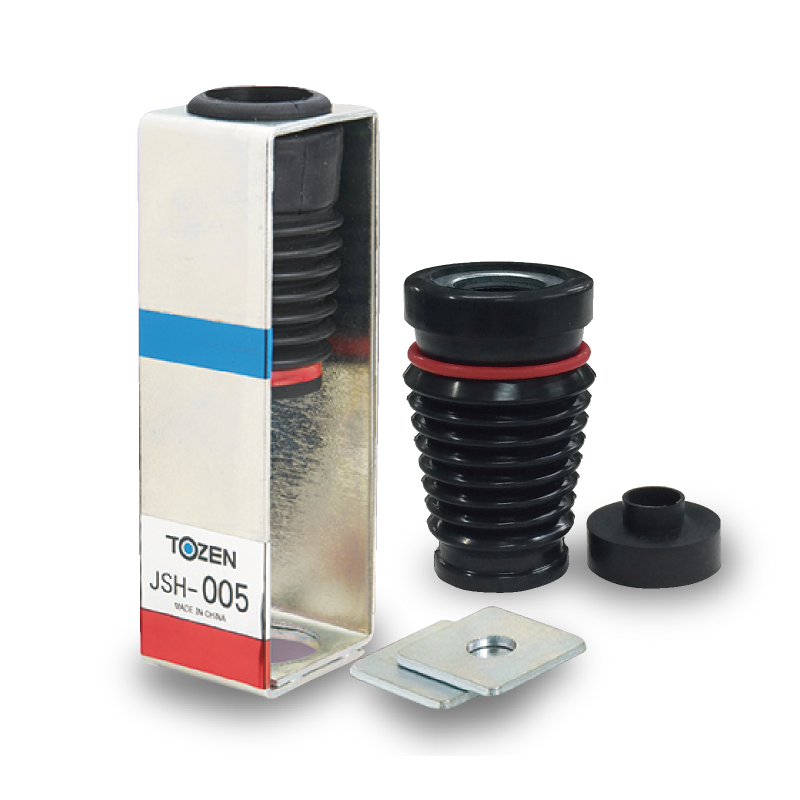

    Spring vibration-isolating material
    JS/JSH series

    More compact design than traditional spring hangers

    Applicable for vibration isolating for piping, ducts, and suspended

    equipment

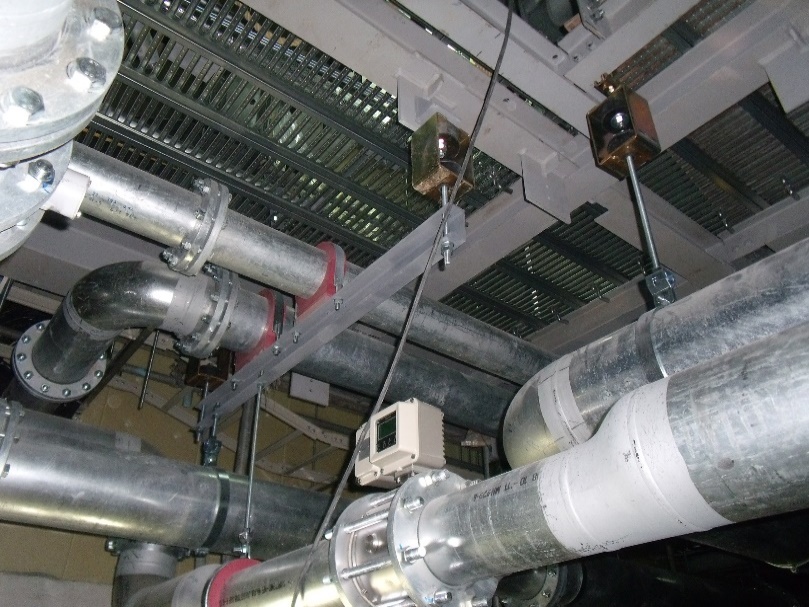

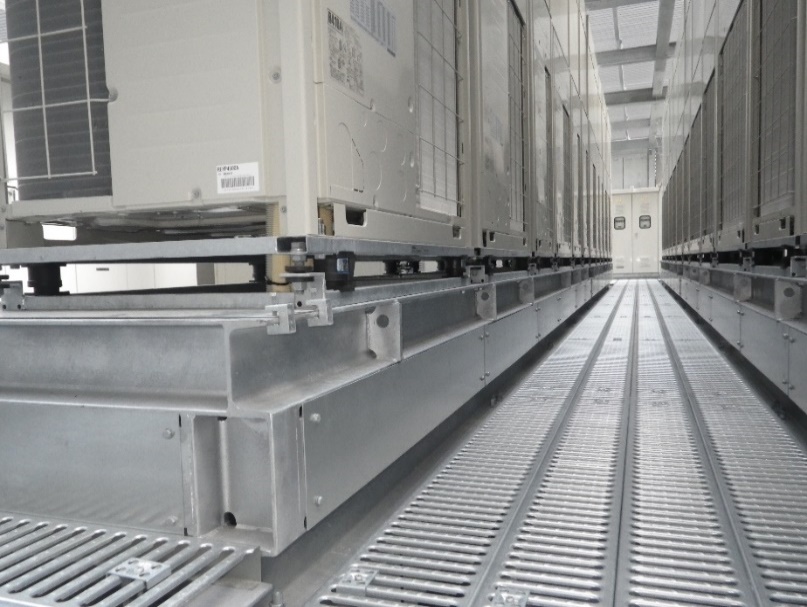

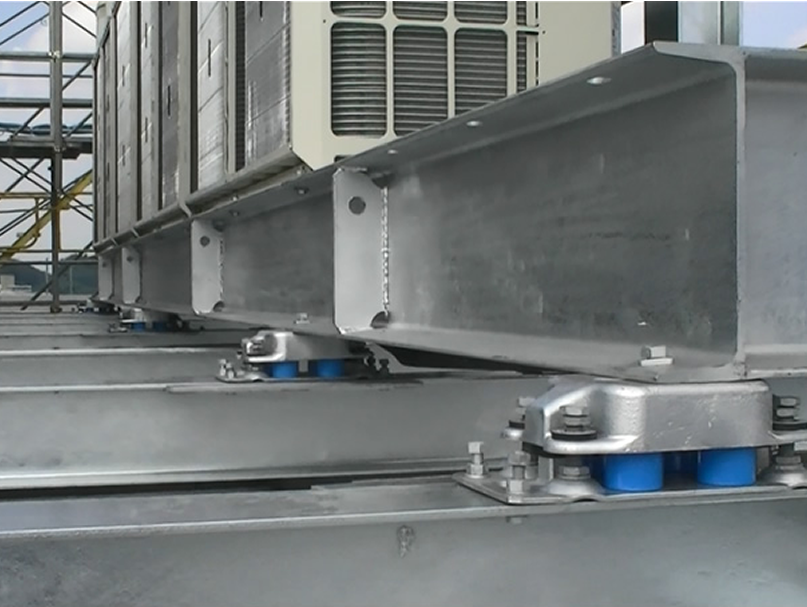

                                                                                                            =========== Installation examples  ===========



    Installation examples
    Installation examples





    Seismic Isolation Systems

    F system

    Absorption by a single joint enables excellent ease of installation, regardless of the location
    Can be installed on horizontal, diagonal, and vertical piping as well as on joints between short surfaces

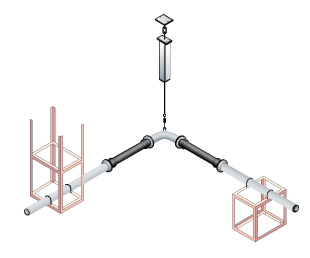

    H system

    Compact with excellent vibration damping due to the use of a spring in the suspended system that are also easy to install
    Excellent durability with flexible tracking even for up, down, left, right, and tilt movements





    C system

    A floor-mount system that can handle large diameter and consolidated multiple piping
    Leading track record in seismic isolation systems in Japan

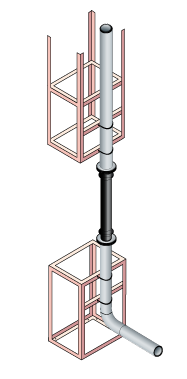

    V system

    Vertical system which can absorb displacement with a single joint, enabling space-saving installation





                                                                         ------------------------------ Installation examples ------------------------------

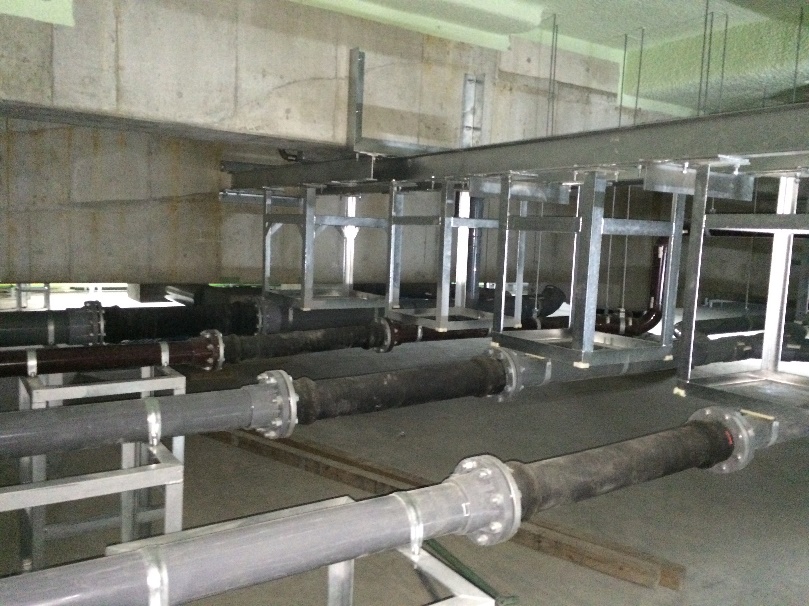

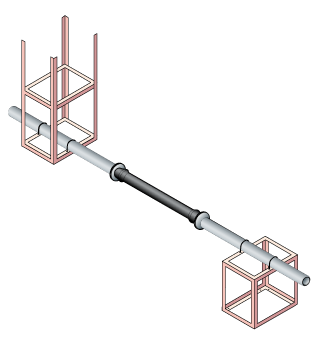

     F system(Horizontal)

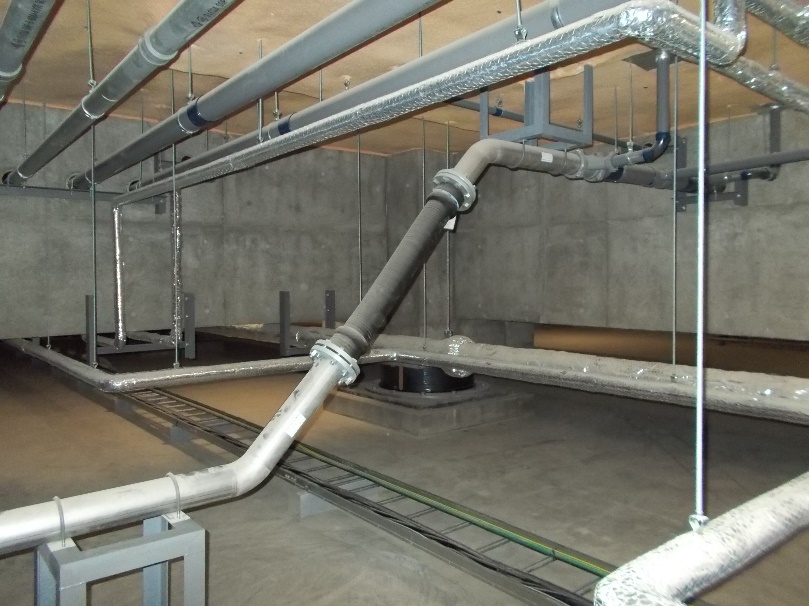

    F system(Diagonal)

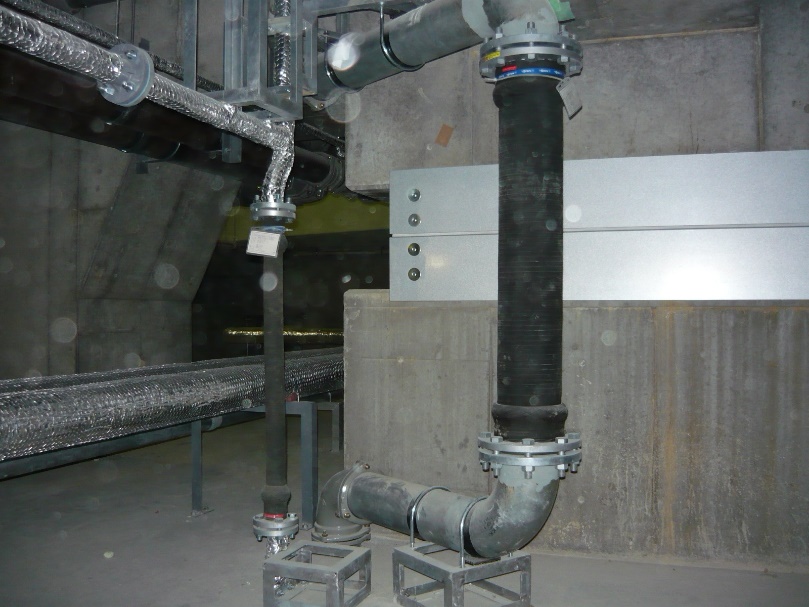

    F system(Vertical)

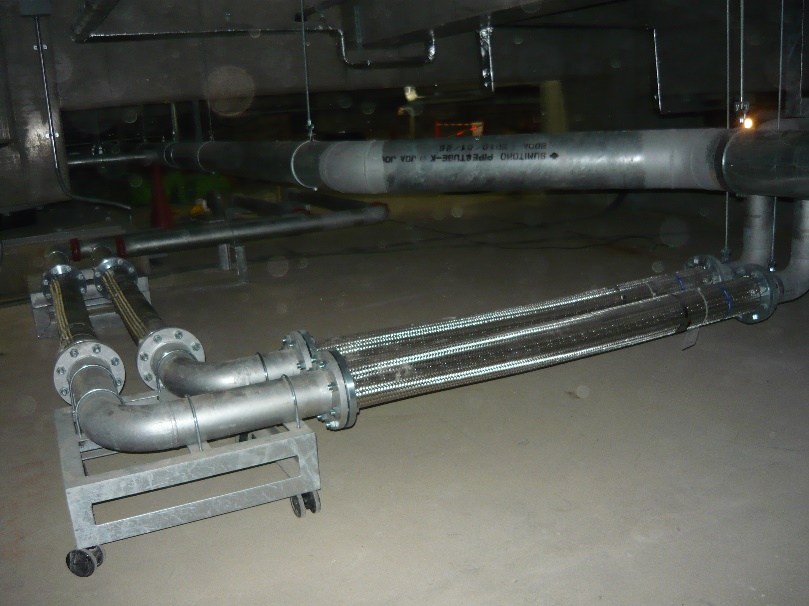

    C system

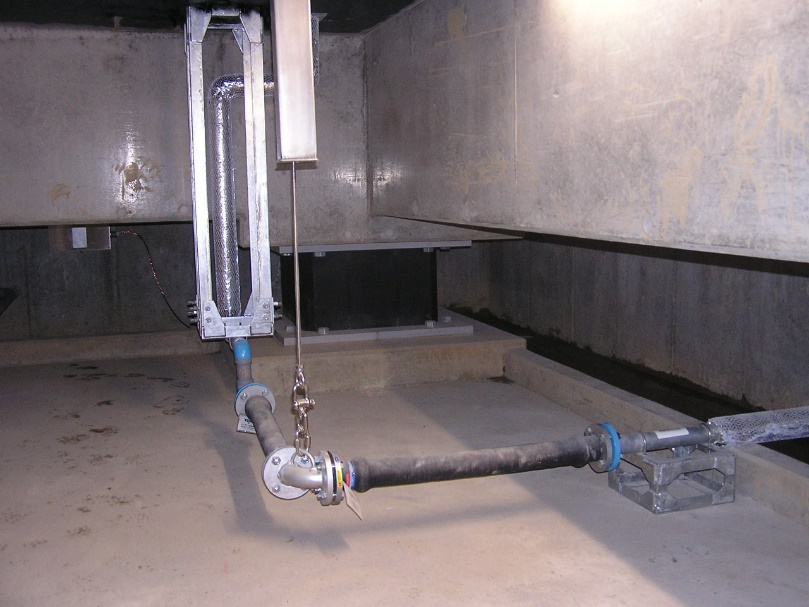

    H system

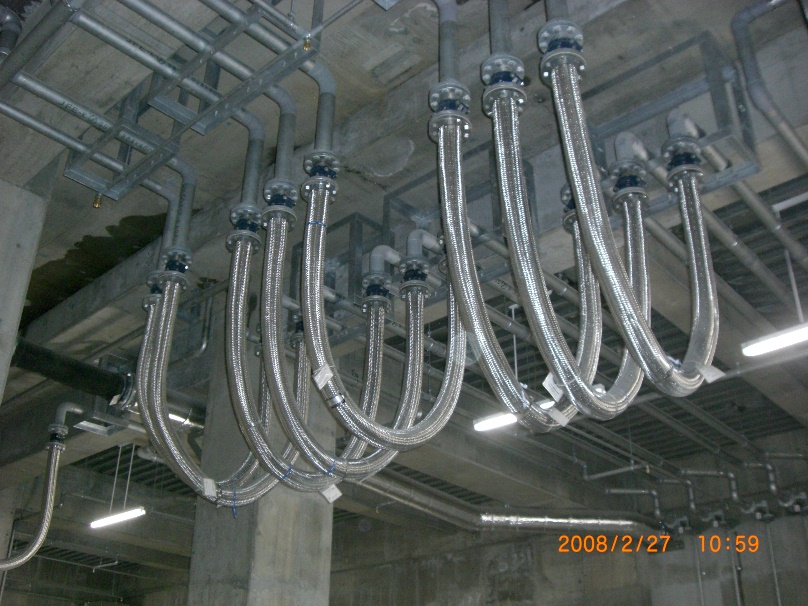

    U system

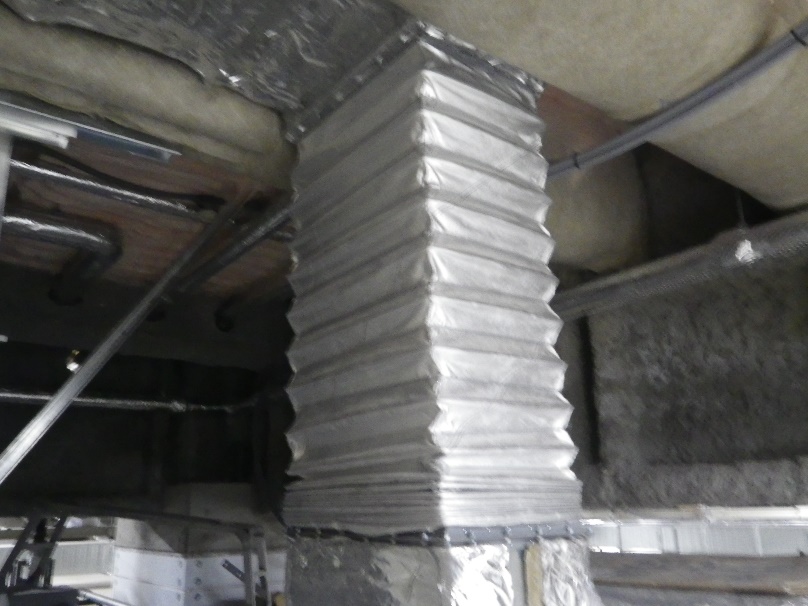

    J system





    Related equipment

    MOOHA



    Unlike the accumulator type, it can be directly installed into pipelines (inline type)
    Excellent water hammer absorption effect
    Easy and unrestricted installation, even in tight spaces
    Can also be used in outline work

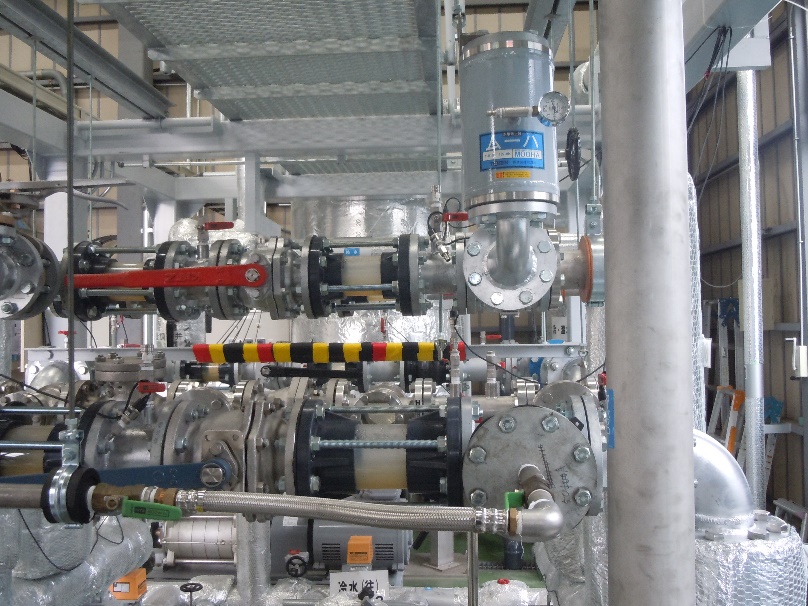

    Test equipment photo

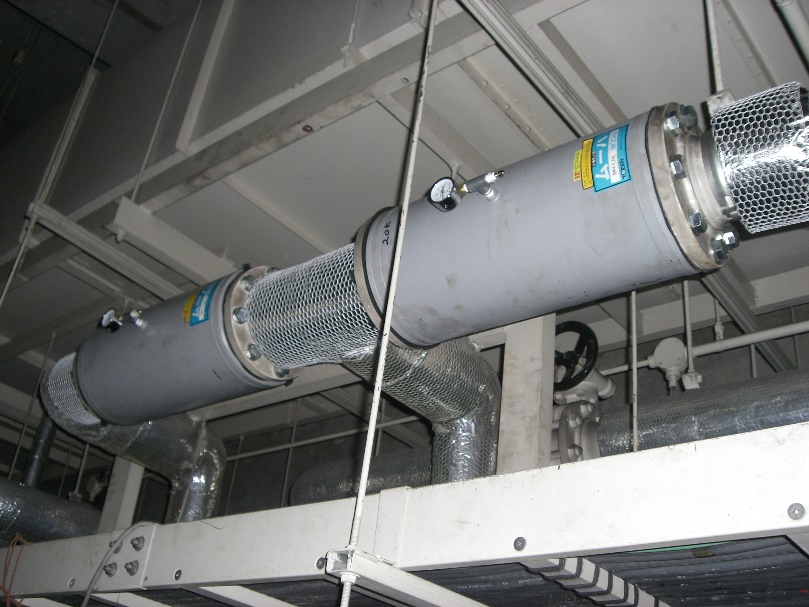

    Installation photo

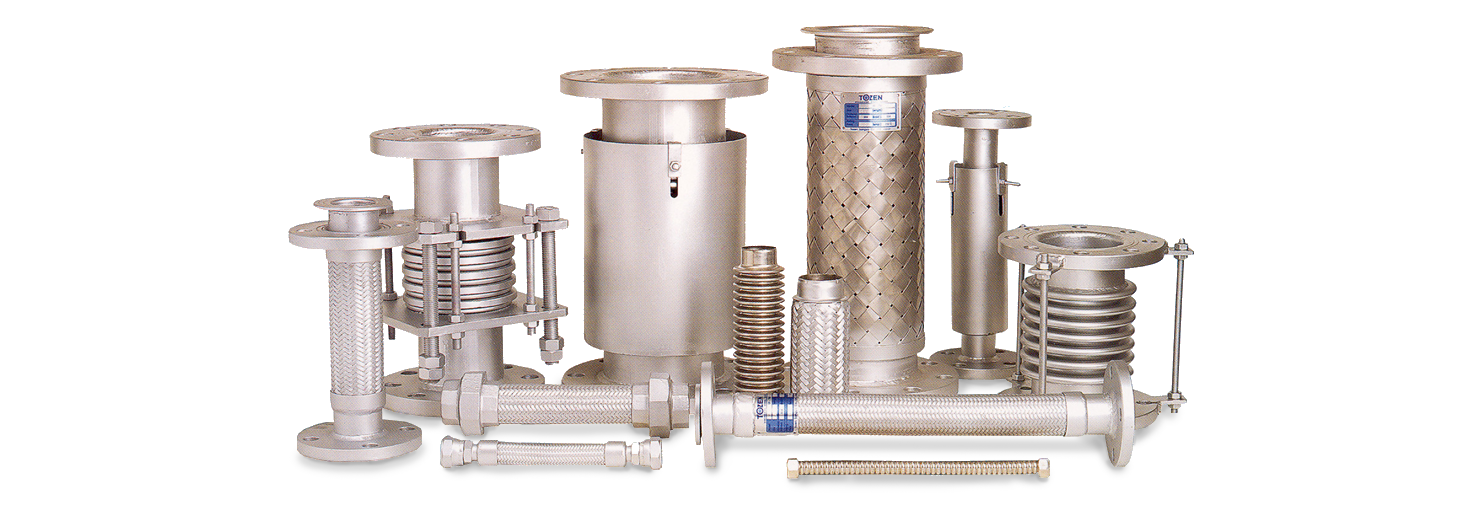

    Metal Flexible Joints

    TOZEN Group handles various types of Metal Flexible Joints.
    Each country has different standard, so for details,
    please contact us from the list who handles this product.


    ※These products are not available in Japan.



    The TOZEN Group’s business
    takes a global perspective.

    Our wide range of products and systems for piping,vibration isolation,
    and seismic isolation provides protection from plants to civil engineering,
    such as installed equipment and fresh water and sewage equipment in office buildings.



    Authorized Distributor of Tozen in Vietnam

    Phuc Minh is proud to be the distributor of TOZEN Valves & Flexible Joint in Vietnam. TOZEN products are widely used for key projects in Vietnam such as Noi Bai Airport, Tan Son Nhat Airport, Cam Ranh Airport, etc.

    TOZEN Flexible Joint products are widely used in piping systems with vibration and noise control for various applications such as pumps, generators, blowers, HVAC systems, etc.

    TOZEN valves are installed in water supply and drainage systems from civil constructions to factories, airports and office buildings, commercial centers… TOZEN contributes to creating a revolution. Live a better life with a comfortable and safe working environment through the development of highly technical products that meet all the requirements for a particular application.

    TOZEN offers a wide range of products to protect piping systems and control unwanted vibrations and noises, ranging from product lines such as metal expansion joints, rubber joints, Teflon joints. (PTFE), stainless steel flexible coupling, shock absorber spring, anti-water hammer, mechanical valve, automatic valve, rubber hose system to isolate seismic, earthquake,



    Notable Application Locations

    SERVICE

                                 Japan                            Landmark Tower (Yokohama)
    Tokyo Metropolitan Government Buildings
    Imperial Hotel
    Tokyo International (Haneda) Airport
    Roppongi Hills
    Tokyo Midtown
    Shin-Marunouchi Bldg.
    akasaka Sacas
    Nagoya Central Towers
    NHK Osaka Studios
    Tokyo Women’s Medical University Hospital Ward One
    Saitama Stadium 2002
    Kyushu National Museum
    Okinawa Churaumi Aquarium
    Hankyu Nishinomiya Gardens
    AEON LakeTown
    Sharp Sakai Factory
    Panasonic – PDP
    Toyota Motor Corporation
    Central Japan International Airport
    Act City Hamamatsu
    (and many other properties)
    Thailand Secondary Bangkok International Airport
    MRT. Chaloem Ratchamongkhon Line
    Bangpakong Power Plant
    TOYOTA New Factory
    Siam Paragon Shopping Center
    Malaysia Kuala Lumpur City Center
    Kuala Lumpur International Airport
    Putrajaya District Cooling Plants &
    Government Offices
    Cyberjaya Intelligent City, Selangor
    Infineon Technologies, Kulim Hi-Technology Park
    Philippines Hyatt Hotel & Casino
    Insular Life Twin Tower
    Rockwell Power Plant Mall
    RCBC Plaza
    Trinoma Mall
    Hong Kong Hong Kong International Airport – Skyplaza
    Hong Kong Disneyland
    Element
    Airport Marriott Hotel
    One Island East
    Macau Venetian Hotel
    Wynn Resort
    Galaxy Star World Hotel, Resort & Casino
    Grand Lisboa Hotel
    MGM Grand Hotel
    China CCTV & TVCC
    World Financial Center
    China World Trade Center
    NOKIA Beijing Factory & Office Building
    Guangzhou Ritz-Carlton Hotel
    Indonesia Grand Indonesia Shopping Mall
    Mangga Dua Square Shopping Mall
    Pacific Place Shopping Mall and Apartment
    Mall of Indonesia, Kelapa Gading
    World Trade Center Shopping Mall
    UAE Emirates HQ Building
    Palm Jumeirah Shoreline Apartments
    Garden Of Discovery
    Jumeirah Beach Residence Sector-II
    Gardens Of Discoverry
    Abu Dhabi Airport
    Burj Nanar Dubai
    Al Hamra Palace Hotel
    Qatar Pearl Qatar
    Singapore A & A Carlton Hotel
    AIA Tower Robinson Road
    Connexion at Farrer Park Medical and Hospitality complex
    Downtown East Project
    Downtown Line 2 SMRT
    Downtown Line 3 SMRT
    EW2 Transmission Cable Tunnel
    Hotel at Victoria Street
    Lavender Kallang Mixed Development
    LKC Medical School
    Mapletree City Project
    MediaCorp Project
    Ngee Ann Polytechnic
    NUH Project
    One KM Mall
    Outram Community Hospital
    Project Glory –Kwang Wah
    Sengkang Mall (formerly Compass Point)
    SP Group Singapore District Cooling
    Thomson-East Coast Line Stages 1 & 2
    Westgate Shopping Mall
    Woodlands Health Campus
    Myanmar Ga Mone Pwint Project
    Kabaraye Executive Residence(KER)
    KBZ Bank
    Landmark
    M Tower
    Osotspa Jupiter
    Rosewood Hotel
    Shwe Nagar , Mandalay
    Water Treatment Factory
    Yankin PPP
    Y Complex
    Bangladesh 20 storied office building , Finance Ministry
    ACME Oral Liquid Project
    Al Arafa Islami Bank Ltd
    ANC Medical Device Ltd Project
    BATB - British American Tobacoo
    Bay Development Ltd ,23 Gulshan Ave, Dhaka
    BGMEA Complex
    Capita Square
    DBL Pharma Ltd Project
    EDCL Gopalganj Project
    Eskayef New Generic Project
    Grameen Telecom Bhaban Project
    Gulshan Centre Point
    Incepta Dhamrai CUB2
    International School Dhaka (STS Group)
    Marriott Courtyard , Chittagong Project
    Marriott Hotel Chittagong
    Mirpur DOHS Shopping Complex
    Noakhali Somity Supermarket
    Radisson Bay View Hotel
    Radisson Chittagong Project
    RGR Sweaters
    Shahjalal Islami Bank Ltd
    Shanta Forum
    SKS Tower Project
    SMC Electrolyte Drink
    SPL Skymark Dhaka Project
    Westin
    Sri Lanka Leading Lady
    ITN Project
    Kuwait Abu Fateera- NHC
    Pakistan Benazir Bhutto International Airport, Rawalpindi, Pakistan
    Envoy Continental, Islamabad
    The Aga Khan Hospital & Medical College Foundation
    Ghana Noguchi Memorial Institute for Medical Research NMIMR Ghana Project
    Laos Rosewood Luang Prabang
    Cambodia Academy of Culinary Arts Cambodia
    AEON Mall II
    Chip Mong Parkland Sensok Mall
    Chip Mong Tower
    Hyatt Hotel
    Khmer Brewery
    Lucky Mall
    Marriott Hotel
    May Bank
    Orkide Villa
    Phnom Penh International Airport
    Roof Factory
    Sathapana Tower
    Siem Reap International Airport
    Tribe Hotel
    World Bank
    Saudi Arabia Damman Project
    Tadawul Tower
    Maldives Ritz Carlton, Rah Falhu Huraa Maldives Island 03



    The Company may change or delete content, etc.
    of this website without notice. We ask for your understanding.

    Online support
  • Consulting - Quotation
    Consulting - Quotation
  • Consulting-Technical
    Consulting-Technical
  • Consulting - Quotation
    Consulting - Quotation
  • Consulting - Technical
    Consulting - Technical
  • Consulting - Quotation
    Consulting - Quotation
