Gate Valve (What Is It)? Structure and Working Principle

A gate valve is one of the most commonly used industrial valves. It is designed to control the flow of liquids or gases in piping systems by fully opening or fully closing the flow path.

Gate valves operate on a simple principle: fully open or fully closed, and are not used for flow regulation.

1. What Is a Gate Valve?

A gate valve is a mechanical device used to control flow by raising or lowering a “gate” (disc) inside the valve body.

• When open: fluid flows freely through the pipe
• When closed: flow is completely blocked

👉 Gate valves are widely used in oil & gas, water systems, steam, and heavy industries.

2. Gate Valve Working Principle

🔹 Opening the valve:

When the valve is in the open position, the gate is lifted away from the seat.

• This allows fluid or gas to flow freely
• The valve is usually operated by a handwheel or gear

👉 Turning the handwheel clockwise lifts the stem and opens the flow path.

🔹 Closing the valve:

To close the valve:

• Turn the handwheel counterclockwise
• The gate moves downward and presses tightly against the seat
• Flow is completely blocked

👉 The closing process should be done slowly to avoid pressure shock.

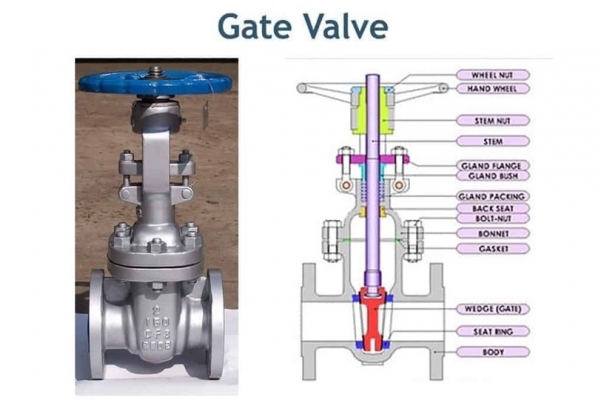

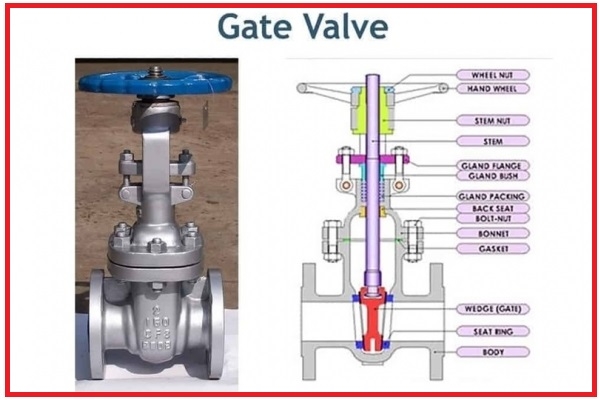

3. Gate Valve Structure

A gate valve consists of the following main parts:

🔹 Body

The main housing of the valve, usually made of steel, cast iron, or stainless steel.

🔹 Gate (Disc)

The component that opens and closes the flow.

🔹 Seat

The sealing surface where the gate presses when closed.

🔹 Stem

Connects the gate to the handwheel for operation.

🔹 Handwheel

Used to operate the valve opening and closing.

4. Inspection and Maintenance

To ensure stable operation:

• Regularly check for leakage
• Clean dirt and deposits
• Lubricate the stem
• Replace damaged parts when necessary

5. Important Usage Notes

• Do not use gate valves for flow regulation
• Use only for full open or full close operation
• Install in the correct flow direction
• Select proper standard and material

6. Applications of Gate Valves

• Oil & gas systems
• Chemical plants
• Steam systems
• Industrial water supply and drainage
• Power plants

7. Advantages of Gate Valves

• Tight sealing when fully closed
• Low pressure loss when fully open
• Simple structure and easy maintenance
• Suitable for many industrial environments
