Metal Pipe

High-Quality Nickel Alloy Tubes – Corrosion-Resistant Nickel Alloy Pipes | Phuc Minh Engineering

Price: Contact

Model:

Phuc Minh supplies premium Nickel Alloy Tubes, Inconel, Monel, Hastelloy in Seamless, Welded, and LSAW forms. Corrosion and heat resistant, ideal for oil & gas, chemical, nuclear, and desalination plants in Vietnam.

Order

Project details Download Catalogue Evaluate

Short Description:

Nickel Alloy Tubes & Pipes – UNS 2200, Inconel, Monel, Hastelloy

Grades / Material:

UNS 2200 (Nickel 200), UNS 2201 (Nickel 201)
UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3)
UNS 8825 (Inconel 825), UNS 6600 (Inconel 600)
UNS 6601 (Inconel 601), UNS 6625 (Inconel 625)
UNS 10276 (Hastelloy C276) and other nickel-based alloys

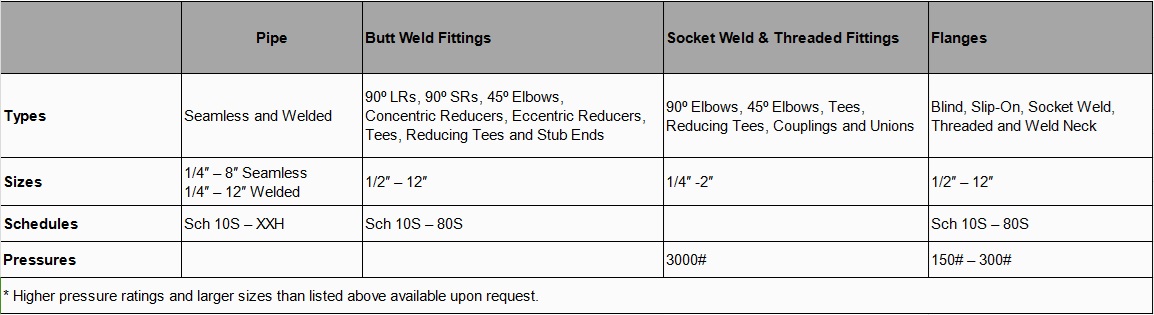

Sizes / Dimensions:

Outer Diameter: 1/8″ – 48″
Seamless & Welded
Schedule: Sch 10S – XXH

Type & Manufacturing:

Seamless, ERW, Welded, Fabricated, LSAW Pipes
Form: Round, Square, Rectangular, Hydraulic, Custom shapes

Length:

Single Random, Double Random, Cut-to-Length

Standards:

ASTM / ASME / B Standards: B725, B474, B517, B705, B619, A358, A312, B464, B515

Product Description

Introduction to Nickel Alloy Tubes
Nickel-based alloys are premium materials widely used in the production of high-quality industrial tubes and pipes. They are highly valued for their excellent corrosion resistance in both aqueous and high-temperature environments. With superior melting points, resistance to oxidation, and outstanding durability, nickel alloys are also very ductile, easy to weld, and can be electroplated, making them ideal for applications that require exposure to extremely high or low temperatures.

Compared to conventional stainless steel or iron-based alloys, nickel alloys can incorporate higher amounts of alloying elements in solid solution. This enhances metallurgical stability, providing strong corrosion resistance across diverse environments while maintaining excellent welding and forming properties.

Key Features of Nickel Alloy Tubes

Exceptional Corrosion Resistance – Ideal for turbulent fluids in coastal power plants, petroleum refineries, and chemical processing industries.
High Impingement Corrosion Resistance – Suitable for brackish seawater at velocities up to 3–4 m/sec, making them perfect for desalination plants and other seawater condenser applications.

Specification

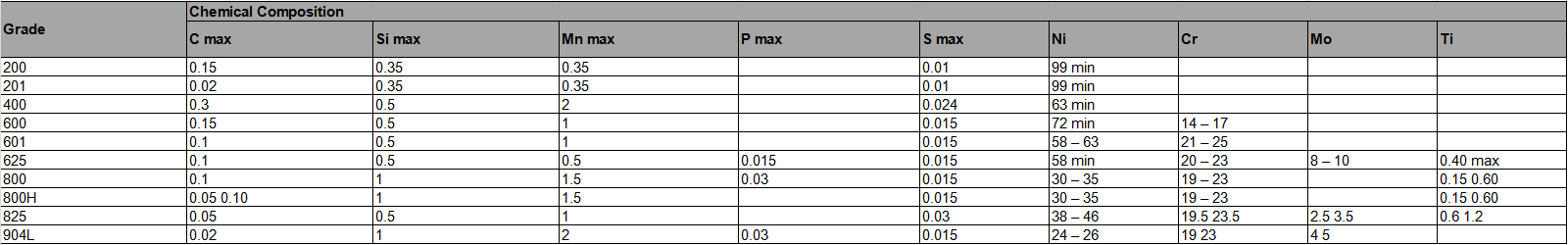

Chemical composition:

Nickel Alloy Physical Properties:

ALLOY	NICKEL ALLOY DENSITY	THERMAL , CONDUCTIVITY	THERMAL LINEAR , EXPANSION COEFF , (20-95 °C)	ELECTRICAL RESISTIVITY , AT 20°C
ALLOY	G/CM³	W/M K	10-6/K	ΜΩ-CM
NI 200/201	8.89	70.2	13.3	9
NI 205/205 LC	8.89	75	13.3	8.9

Standards of Nickel Alloy Tube:

Trade Name	UNS #	Seamless Tube	Welded Tube
Alloy® 20	N08020	B/SB729	B/SB468
Nickel 200	N02200	B/SB161	B730
		B/SB163
Nickel 201	N02201	B/SB161	B730
		B/SB163
Monel® 400	N04400	B/SB165	B730
		B/SB163
Inconel® 600	N06600	B/SB167	B/SB516
		B/SB163
Inconel® 625	N06625	B/SB444	B/SB704
Incoloy® 800	N08800	B/SB407	B/SB515
		B/SB163
		A/SA213
Incoloy® 800H	N08810	B/SB407	B/SB515
		B/SB163
		A/SA213
Incoloy® 800HT	N08811	B/SB407	B/SB515
		B/SB163
		A/SA213
Incoloy® 825	N08825	B/SB423	B/SB704
		B/SB163

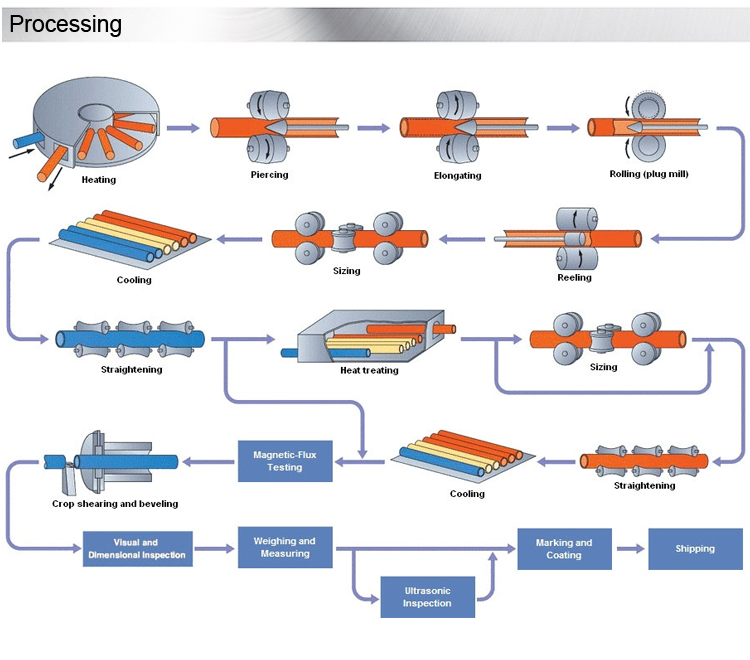

Manufacturing Technique

Manufacturing Technique Of Nickel Alloy Tube

Applications

Applications of Nickel Alloy Tube.

Nickel alloys are excellent for heat exchangers in the chemical processing and nuclear industries. They’re used in steam generator tubing in the nuclear power industry, in high-temperature aircraft systems, and in oil and gas extraction programmes where corrosion-, pressure- and temperature-resistant tubing is required. Their corrosion resistance also makes them useful in desalination equipment.

Various Uses Of Nickel Alloy Tube:

Alloy	UNS	Description
200	N02200	This alloy provides highly ductile mechanical properties across a wide temperature range.
825	N08825	An austenitic nickel-iron-chromium-molybdenum-copper alloy providing high levels of corrosion resistance.
201	N02201	This alloy provides highly ductile mechanical properties across a wide temperature range.
ALLOY 20	N08020	This alloy has excellent resistance to general corrosion, pitting, and crevice corrosion in chemicals containing chlorides and sulfuric, phosphoric, and nitric acids.
400	N04400	A ductile nickel-copper alloy with resistance to a variety of corrosive conditions.
ALLOY 22	N06022	A Ni-Cr-Mo alloy that provides outstanding resistance to pitting, crevice corrosion, intergranular attack, and stress corrosion cracking.
600	N06600	Nickel Chromium alloy designed for use from cryogenic to 2000掳F. It is non-magnetic and readily weldable.
ALLOY 59	N06059	This alloy is a nickel-chromium-molybdenum alloy with an extra-low carbon and silicon content.
601	N06601	An austenitic nickel-chromium-iron alloy designed for both heat and corrosion resistance.
B-2	N10665	This alloy is a solid solution strengthened, nickel-molybdenum alloy, typically used in extreme reducing conditions.
625	N06625	An austenitic nickel-base super alloy possessing excellent resistance to oxidation and corrosion over a broad range of corrosive conditions.
C276	N10276	A nickel-molybdenum-chromium-iron-tungsten alloy which is among the most corrosion resistant of alloys currently available.
686	N06686	An alloy designed for outstanding corrosion resistance in a wide range of severe environments.
C-2000	N06200	An extremely versatile nickel alloy resistant to corrosion in all acids and chloride solutions, over wide temperature ranges.
800	N08800	Nickel-iron-chromium alloys designed to resist oxidation and carburization at elevated temperatures. They are highly resistant to chloride stress corrosion cracking and to embrittlement from precipitation of sigma phase.
G-3	N06985	This alloy has good weldability and resistance to intergranular corrosion in the welded condition.
904L	N08904	This alloy is designed for a middle to high level of corrosion resistance.
800H	N08810	Nickel-iron-chromium alloys designed to resist oxidation and carburization at elevated temperatures. They are highly resistant to chloride stress corrosion cracking and to embrittlement from precipitation of sigma phase.
G-30	N06030	A high chromium nickel-base alloy which shows superior corrosion resistance over most other nickel and iron-base alloys in commercial phosphoric acids and complex environments containing highly oxidizing acids.
800HT	N08811	Nickel-iron-chromium alloys designed to resist oxidation and carburization at elevated temperatures. They are highly resistant to chloride stress corrosion cracking and to embrittlement from precipitation of sigma phase.
