DKM(DONGKANG) – A LEADING FORGED STEEL VALVE MANUFACTURER FROM KOREA

General Introduction to DKM Valve

DKM Valve (DongKang Valve) is a reputable industrial valve brand from South Korea, specializing in the production of high-quality forged steel valves designed for industrial systems operating under extreme pressure and temperature conditions.

With a focus on precision engineering, durability, and operational safety, DKM Valve has become a trusted choice in many key industries such as:

• Oil & Gas and Petrochemical
• Power Plants & Thermal Power Stations
• Water Treatment & Environmental Systems
• Chemical Industry
• High-pressure industrial piping systems

In Vietnam, Phuc Minh Engineering Company (PME) is proud to be an authorized supplier and technical support provider for genuine DKM Valve products.

Overview of the DKM Valve Brand

DKM Valve is a manufacturer specializing in forged steel valves designed for high-pressure and high-temperature applications in heavy industries.

DKM products are manufactured according to international standards and are well known for:

• ISO 9001: Quality management system
• Advanced anti-leakage technology
• High durability in high-pressure environments
• Wide usage in critical industrial plants

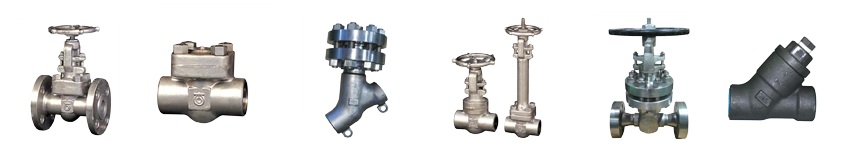

DKM Valve Product Range

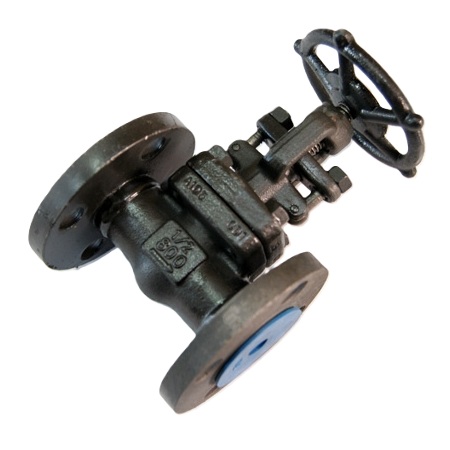

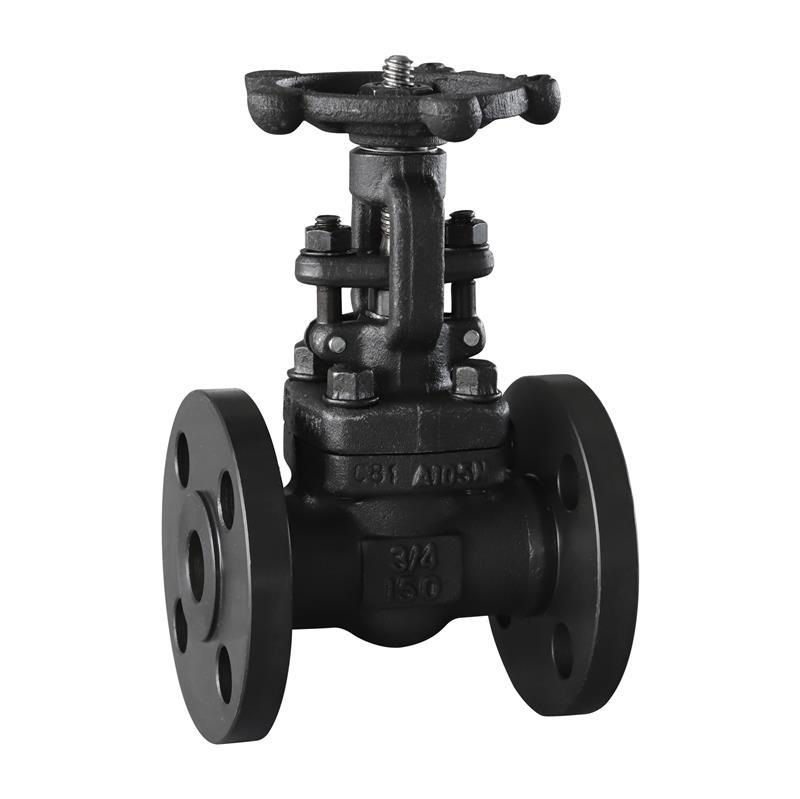

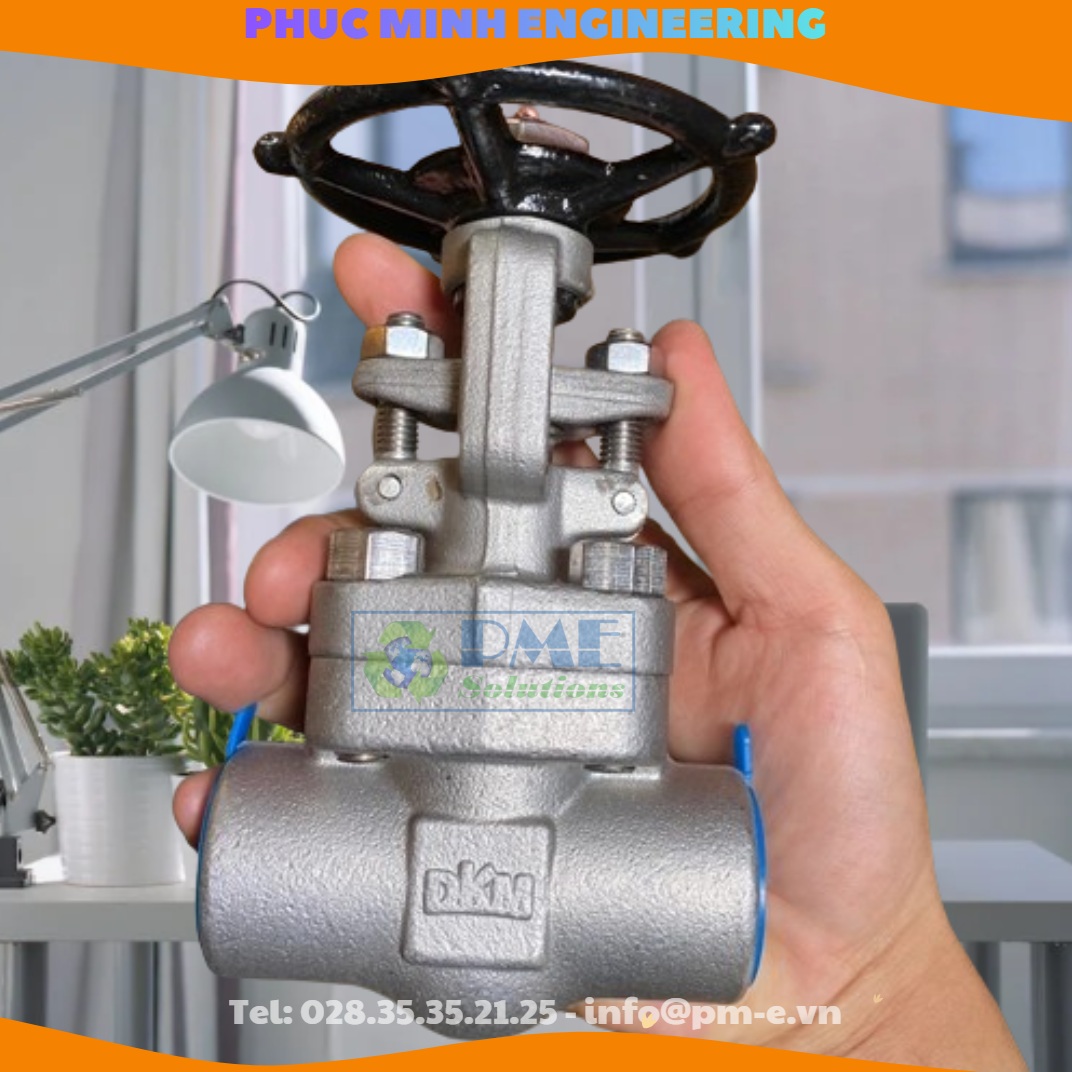

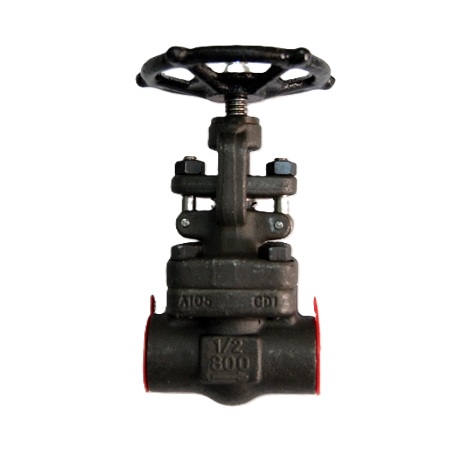

1. Gate Valve

• Full open/close operation
• Minimum pressure loss
• Not suitable for flow regulation
• Used in main pipeline systems

Description:
Gate valves act as effective shut-off valves with bidirectional flow. They are widely used where minimum pressure drop is required, as they offer almost no resistance when fully open. However, they are not suitable for flow regulation and perform best in fully open or fully closed positions.

Standards:
API 800, 1500
ANSI 150, 300, 600, 900, 1500, 2500

Sizes:
3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Materials:
ASTM A105, A182-F5, F9, F11, F22, F304, F316, F304L, F316L, F321, F347, F51, F91, A350-LF2 (other materials upon request)

Connection Types:
Socket Weld, Threaded, Butt Weld, Flanged

Features:
Bolted bonnet or welded bonnet, OS&Y (Outside Screw & Yoke), solid wedge disc, replaceable seat design

2. Globe Valve

• Precise flow control
• Suitable for throttling applications
• Used in steam and chemical systems

Description:
Globe valves are ideal for flow regulation applications. Their flow characteristics allow precise and repeatable control. However, excessive pressure drop should be avoided as it may cause noise, vibration, and system damage.

Class:
API 800, 1500
ANSI 150, 300, 600, 900, 2500, 4500

Sizes:
3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Materials:
ASTM A105, A182 series, A350-LF2 (various grades)

Features:
Bolted or welded bonnet, OS&Y design, integrated seat structure

3. Swing Check Valve

• Prevents backflow effectively
• Can be installed horizontally or vertically
• Low pressure loss

Description:
Swing check valves prevent reverse flow in pipelines. The disc opens with forward flow and automatically closes when reverse pressure occurs. Suitable for horizontal or upward flow systems with low pressure loss.

Class:
API 800, 1500
ANSI 150, 300, 600, 900, 2500, 4500

Materials:
ASTM A105, A182-F304, F316 and others

Sizes:
3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Connection Types:
Socket Weld, Threaded, Butt Weld, Flanged

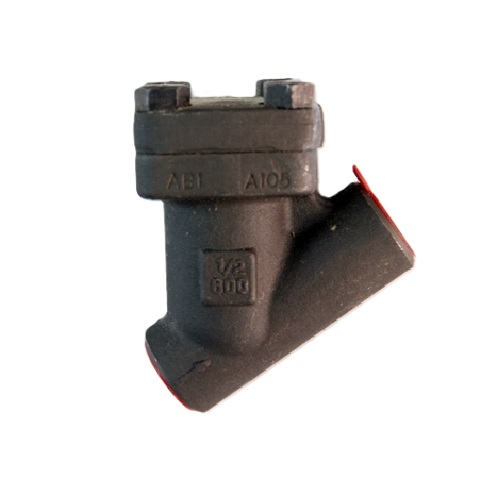

4. Y-Strainer

• Removes debris from pipelines
• Protects downstream equipment
• Easy cleaning and maintenance

Description:
Forged Y-type strainers are named after their shape. They are used to remove solid particles from gas, liquid, or steam pipelines. They can also be used in vacuum or suction systems. A drain plug allows cleaning without removing the strainer from the pipeline.

Standards:
API 800, 1500
ANSI 150, 300, 600, 900, 1500, 2500

Materials:
ASTM A105, A182-F304, F316 and others

Connection Types:
Socket Weld, Threaded, Butt Weld, Flanged

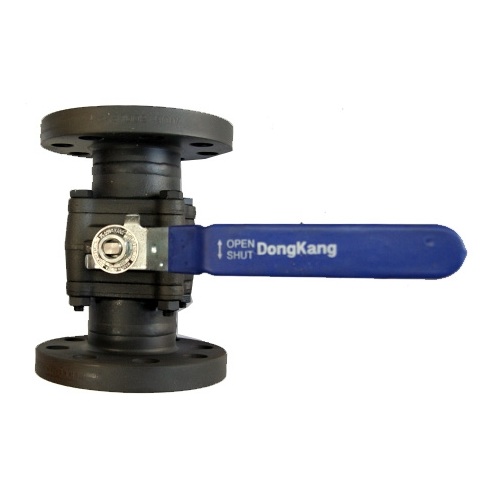

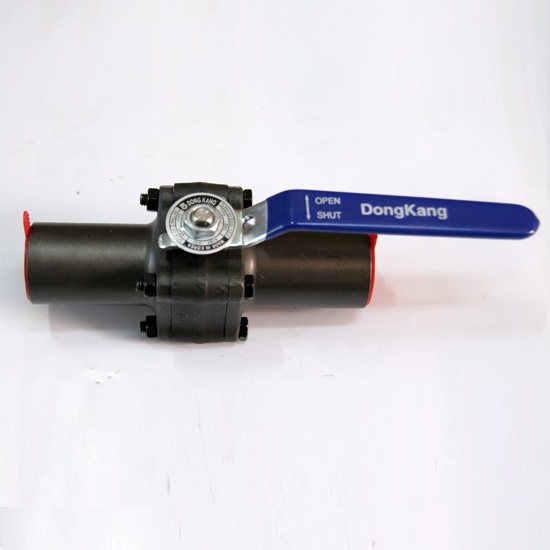

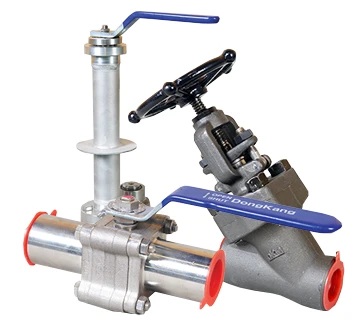

5. Ball Valve

• Quick open/close operation
• High tightness and stable performance
• Suitable for various industrial environments

Description:
DKM ball valves are developed based on years of field testing and proven engineering standards. They offer high safety, reliability, and low operating costs, and are widely used in industrial piping systems.

Standards:
API 800, 1500
ANSI 150, 300, 600, 900, 1500, 2500

Sizes:
3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Materials:
ASTM A105, A182-F304, F316 and others

Connection Types:
Socket Weld, Threaded, Butt Weld, Flanged

Manufacturing Standards & Materials

DKM Valve is manufactured according to international industrial standards:

• API, ANSI Class 150 – 2500
• ASTM A105, A182, A350-LF2
• High-quality forged steel materials
• Suitable for extreme pressure and temperature environments

Key Advantages of DKM Valve

• High pressure and temperature resistance
• Advanced anti-leakage technology
• Long service life
• High operational safety in industrial systems
• Wide range of sizes and configurations
• Easy maintenance and replacement

Industrial Applications of DKM Valve

DKM products are widely used in:

• Petrochemical refineries
• Thermal power plants
• Steam and compressed air systems
• Chemical industry
• Water supply and drainage systems
• Heavy industrial plants

Key Customers of DKM Valve

PM-E.VN – DKM Valve Distributor in Vietnam

Phuc Minh Engineering Company (PME) is a trusted supplier of industrial valves and measurement equipment in Vietnam.

We provide:

• Genuine DKM valves
• Full CO-CQ certification
• Competitive project pricing
• In-depth technical consultation
• Proper model selection support
• Fast nationwide delivery
