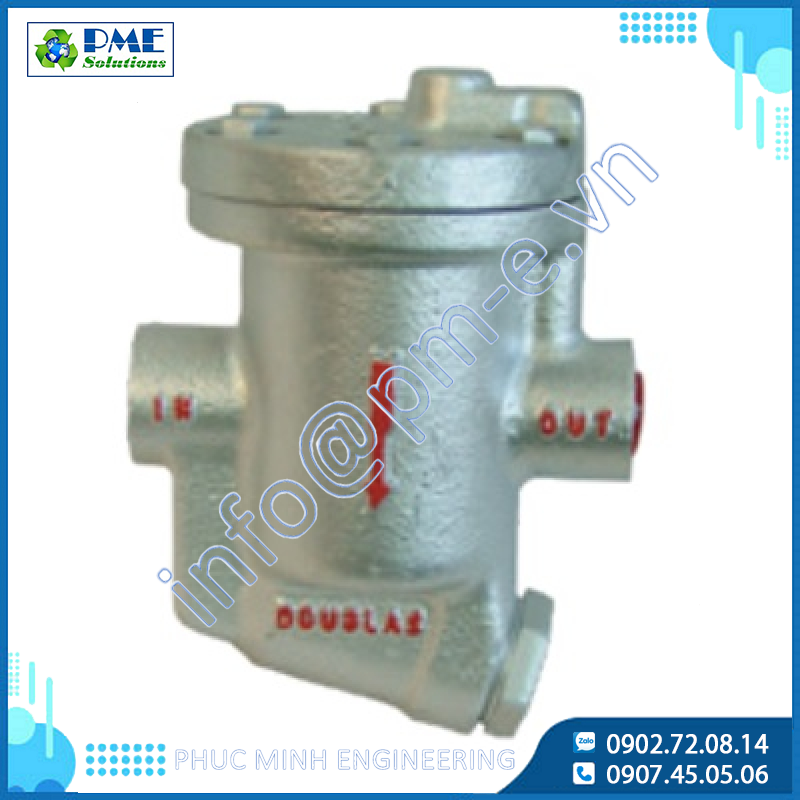

Inverted-Bucket Steam Traps

• Sizes: 1/2" to 1" [15mm to 25mm]
• Maximum operating pressure: 1,015 psig [70barg]
• Materials: Carbon steel, stainless steel, and alloy steel

OPERATING PRINCIPLE

is based on the different density between steam and condensate. The float is an open and inverted bucket. Condensate enters the trap from the bottom and inside the bucket that is connected to the valve through a lever. Condensate completely fills the trap and is discharged through the valve. Steam and air entering the submerged bucket causes it to float on the surrounding condensate thereby closing the discharge valve. Air discharge is
ensured by a vent hole in the upper part of the bucket while steam condenses (and partially through the air vent). The bucket will sink again ( and open the valve) when condensate reaches a level where the weight of the bucket overcomes the pressure acting on the valve.


DOUGLAS ITALIA Technologies

DOUGLAS ITALIA* steam trap and strainer technologies offers a complete line of steam traps to meet process applications around the world.

• Thermodynamic
• Thermostatic
  • Balanced pressure
  • Bimetallic
• Inverted bucket
• Ball float

DOUGLAS ITALIA technologies include

• Steam distribution manifolds
• Condensate recovery manifolds
• Steam trap stations
• Sight glasses
