Application: used for pipelines of liquids, petroleum, water, ... only horizontal installation.

APPLIED STANDARD:

• Design standard: API600 & BS 1868
• P-T Rating standard: ASME B16.34
• Flange standard: ASME B16.5 - ANSI 150# RF

OVERVIEW:

+ Body: A216 WCB
+ Disc & Seat: 13Cr/ HF
+ Pressure: Max.19.6 barg
+ Picture of goods: according to the picture.
+ Packing: Packed in pallet if you buy with big value.

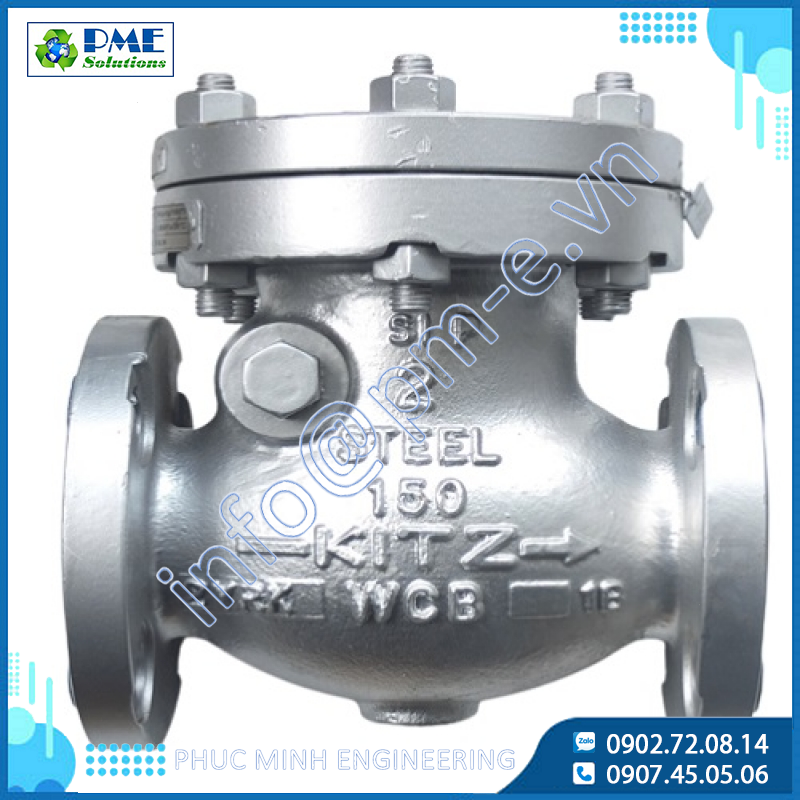

• CLASS 150 CAST STEEL SWING CHECK VALVE FLANGED ENDS,BOLTED COVER,END TO END:ASME B16.10 CLASS 150,END CONNECTION:ASME B16.5 CLASS 150,WALL THICKNESS:API 600 CLASS 150,TEST STANDARD:API 598
• Test Pressure（MPa）Inspection Standard:API 598
