• "KITZ" DUCTILE IRON GLOBE VALVE- FLANGED ENDS - JIS 10K
• Body: Ductile Iron , Disc
• Static water at 120Deg.C, Max press 1.4MPa
• Steam, air, gas, oil or pulsing water at 220Deg.C Max press:1.2MPa

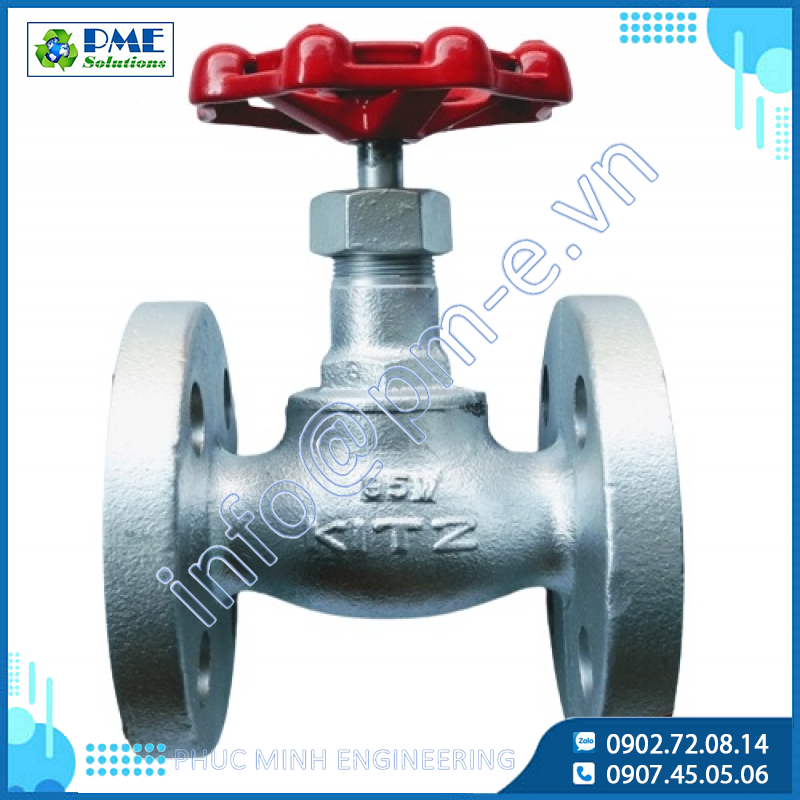

GLOBE VALVE KITZ 10SJBF

• Brand KITZ
• End Connection JIS10K
• Body: FCD-S
• Bonnet: FCD-S
• Stem: SUS420J2
• Disc: SUS403
• Gasket: Stainless Foil Inserted Flexible Graphite
• Temperature And Pressure:
• 120°C Water………………………. 1.4MPa~14kgf/cm²
• 220°C Water, air, gas, oil……… 1.0MPa~10kgf/cm²
• Size: DN10 → DN80 (3/8 Inch → 3 Inch)
